Tatsuta

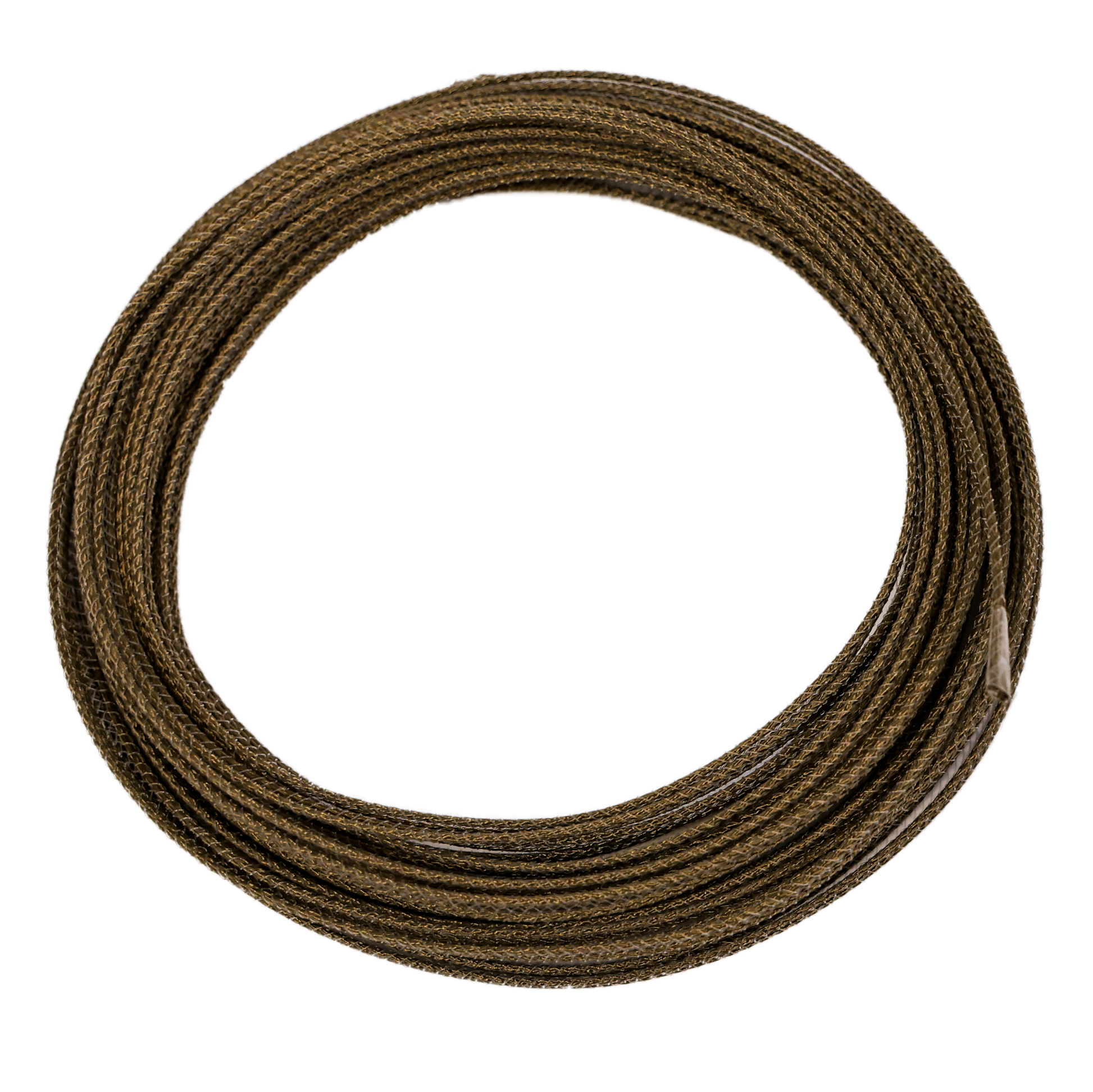

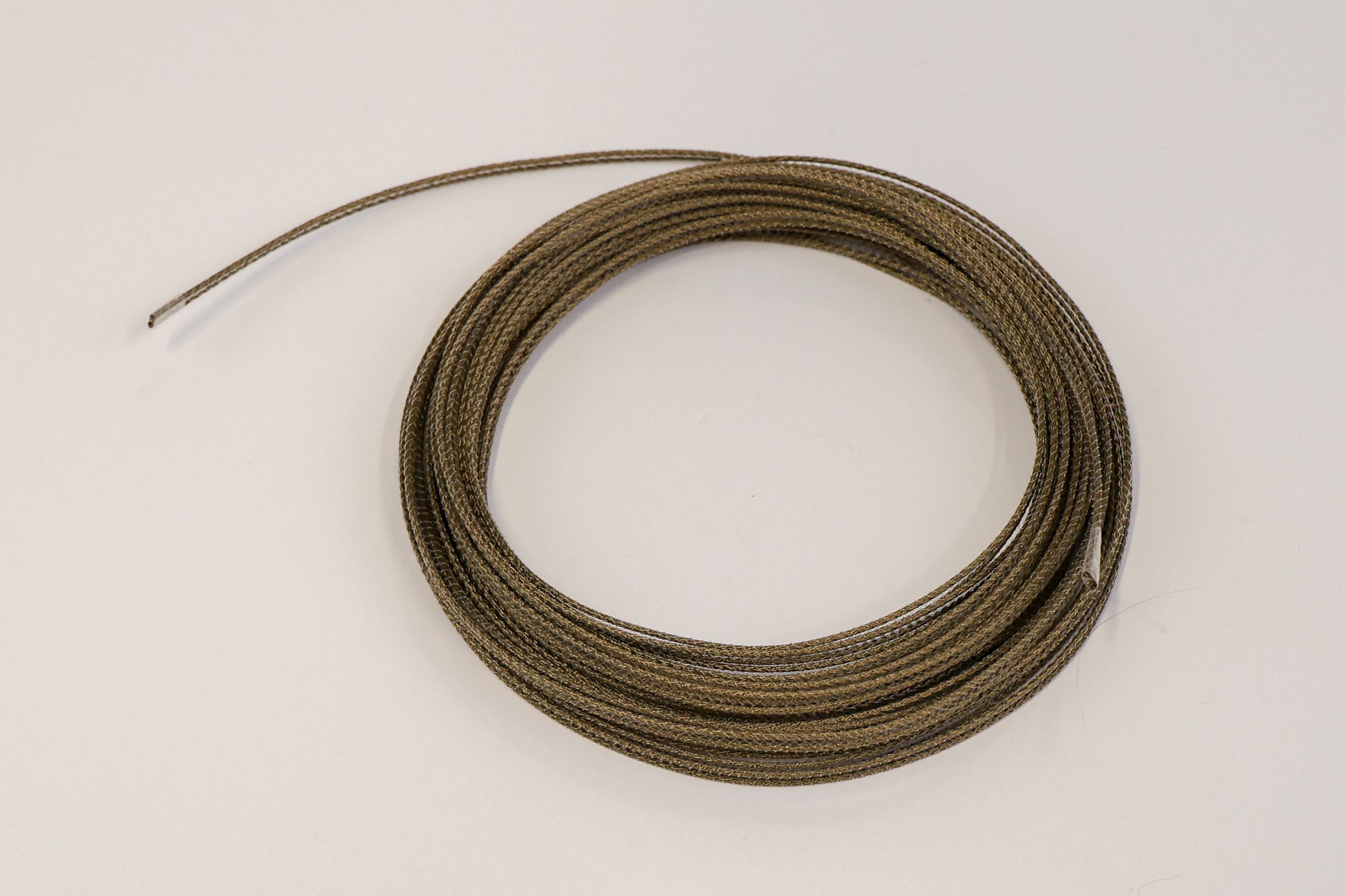

Tatsuta | Zone Sensor | AD-BFS

Tatsuta | Zone Sensor | AD-BFS

SKU:

This flame-retardant AD-BFS flat sensor complies with flame-retardant standard NFPA262 (formerly UL910) and has excellent chemical resistance.

View full details

Product Details

Features

Electrode Inner Layer: Electrode 1: Conductive ETFE-coated (black) basalt braided on tin-plated soft copper wire, 0.33mm2
Electrode Inner Layer: Electrode 2: Conductive ETFE-coated (black) basalt braided on tin-plated soft copper wire, 0.33mm2
Outer Layer: ETFE monofilament
Outer dia. Approx. 6.5mm x 2.2mm
Detection Sensitivity: Leak length: 100ml maximum

Specifications

W6.5mm, H2mm, wire 0.33mmsq
100m/spool maximum
