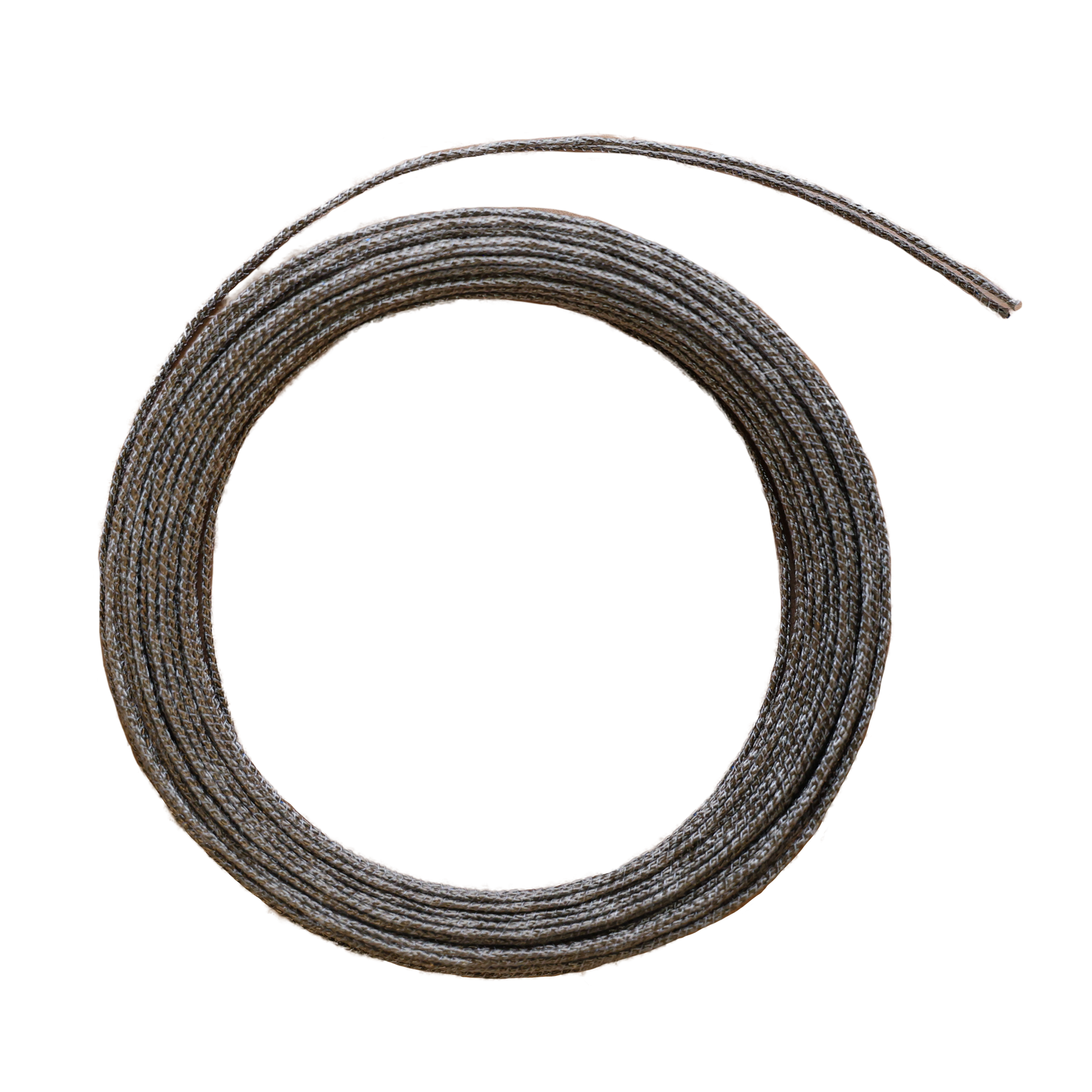

Tatsuta | Leak Point Sensor | AD-BFL

Tatsuta | Leak Point Sensor | AD-BFL

This flame-retardant, location-detection dedicated AD-BFL flat sensor complies with flame-retardant standard NFPA262 (formerly UL910) and has excellent chemical resistance.
View full details

Product Details

Features

  • Electrode Inner Layer: Electrode 1: Basalt braided on the stranded wires of (1) and (2)(1) Conductive ETFE-coated (black), on tin-plated soft copper wire, 0.33mm²(2) Insulated ETFE-coated wire (yellow), on tin-plated soft copper wire, dia. 0.51mm
  • Electrode Inner Layer: Electrode 2: Basalt braided on the stranded wires of (3) and (4)(3) Conductive ETFE-coated (black), on resistance wire, dia. 0.40mm(4) Insulated FEP-coated wire (blue), on tin-plated soft copper wire, 0.5mm²
  • Outer Layer: ETFE monofilament
  • Outer dia. Approx. 6.5mm x 2.2mm
  • Detection Sensitivity: Leak length: 100ml maximum

Specifications

  • W6.5mm, H2.2mm, BK0.33mmsq, B0.5mmsq, BK dia 0.4mm solid wire
  • 100m/spool maximum
