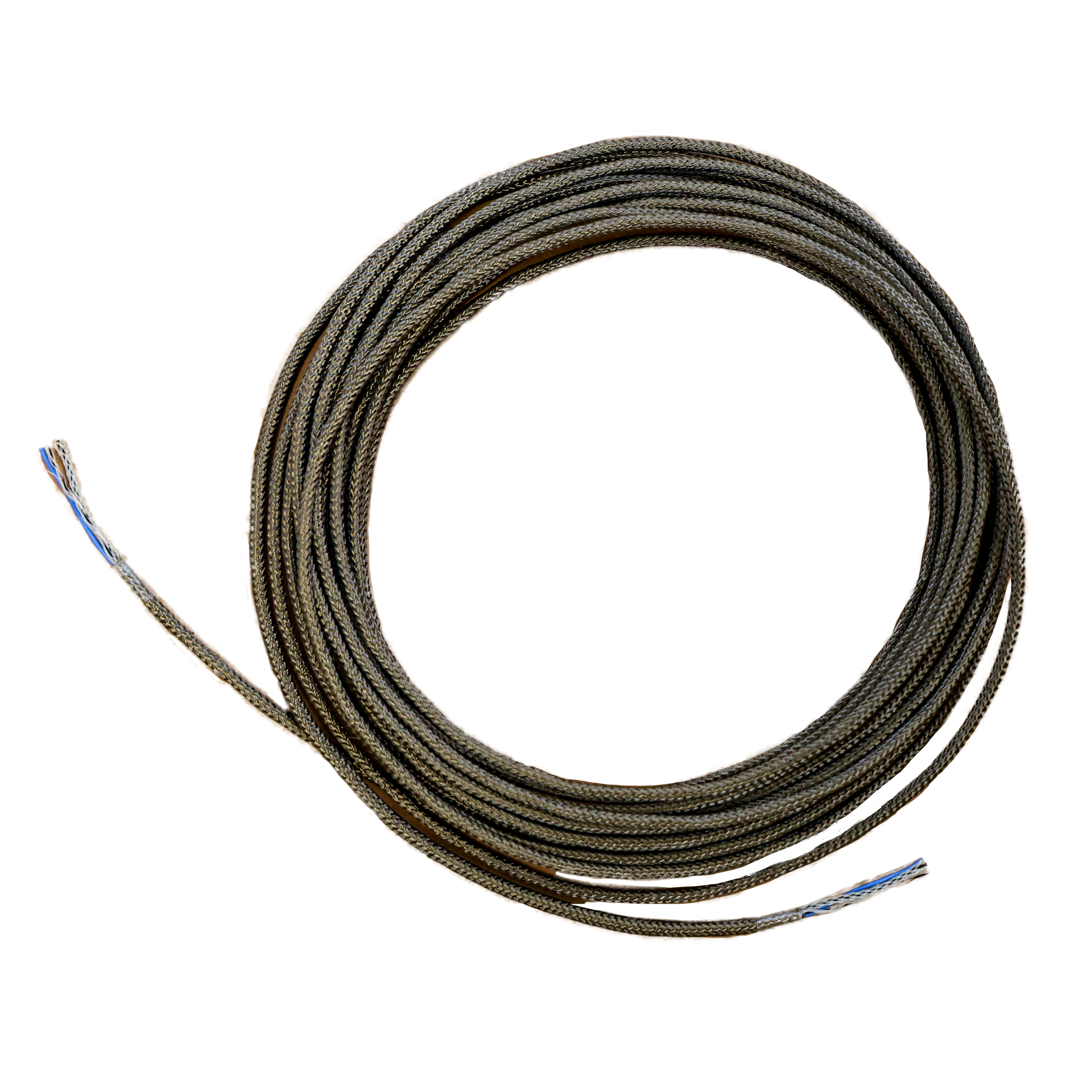

Tatsuta | Leak Point Sensor | AD-BRL

Tatsuta | Leak Point Sensor | AD-BRL

This flame-retardant, location-detection dedicated AD-BRL sensor complies with flame-retardant standard NFPA262 (formerly UL910) and has excellent chemical resistance.

View full details

Product Details

Features

  • Electrode Inner Layer: Electrode 1: Conductive ETFE-coated (black) PPS monofilament (dia. 0.2mm) braided on tin-plated soft copper wire, 0.33mm²
  • Electrode Inner Layer: Electrode 2: FEP wires
  • Electrode Inner Layer: Electrode 3: Conductive ETFE-coated (black) PPS monofilament (dia. 0.25mm) braided on resistance wire, dia. 0.40mm
  • Outer Layer: Basalt braid
  • Outer dia. Approx. dia. 4mm
  • Detection Sensitivity: Leak length: 100ml maximum

Specifications

  • Dia 4mm, wire BK0.33mmsq, B0.5mmsq, BK dia0.4mm solid wire
  • 100m/spool maximum
