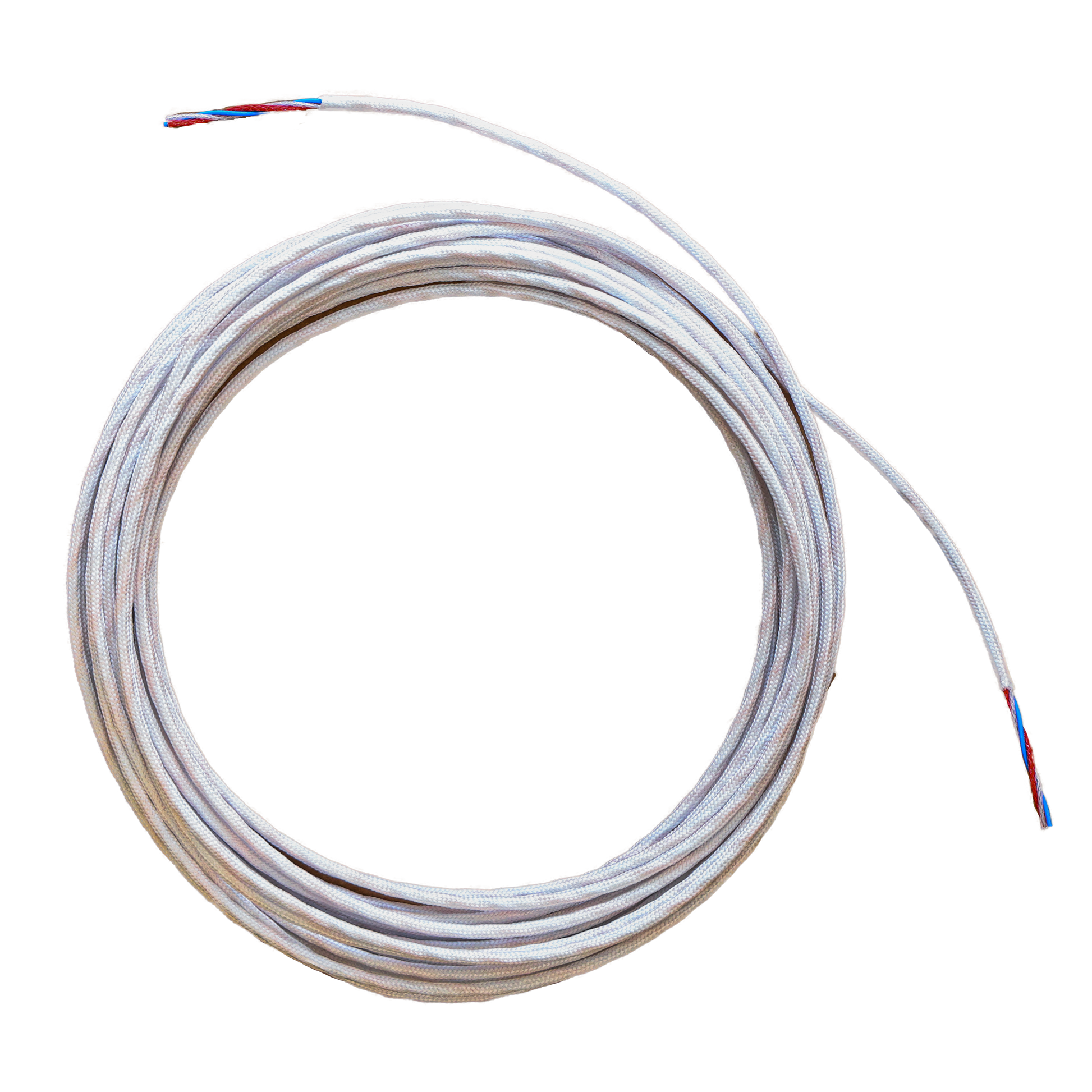

Tatsuta | Leak Point Sensor | AD-LS

Tatsuta | Leak Point Sensor | AD-LS

This AD-LS sensor is dedicated to leak-location detection.
View full details

Product Details

Features

  • Electrode Inner Layer: Electrode 1: Plastic single yarn braided to tin-plated soft copper wire, 0.3 mm²
  • Electrode Inner Layer: Electrode 2: Plastic single yarn braided to tin-plated soft copper wire, 0.3 mm²
  • Electrode Inner Layer: Electrode 3: Plastic single yarn braided to resistance wire, dia. 0.4 mm
  • Outer Layer: Plastic yarn braided
  • Outer dia. Approx. dia. 3.5 mm
  • Detection Sensitivity: 3ml maximum: One drop (0.05ml) per second

Specifications

  • Dia 4mm, wire R0.33mmsq, B0.5mmsq, W dia 0.4mm solid wire
  • 100m/spool maximum
