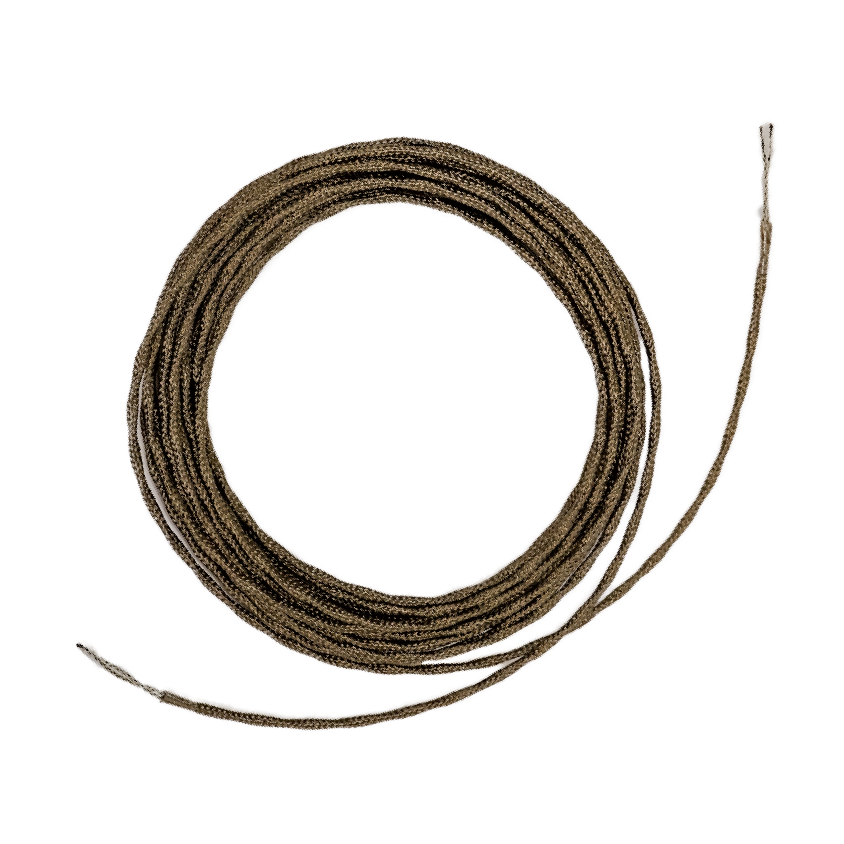

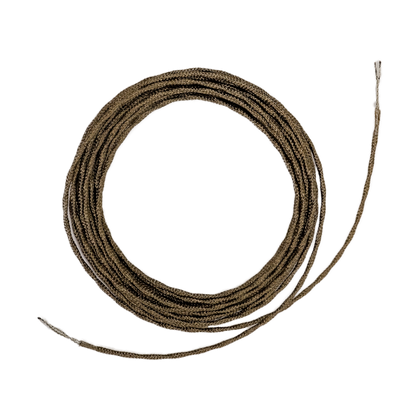

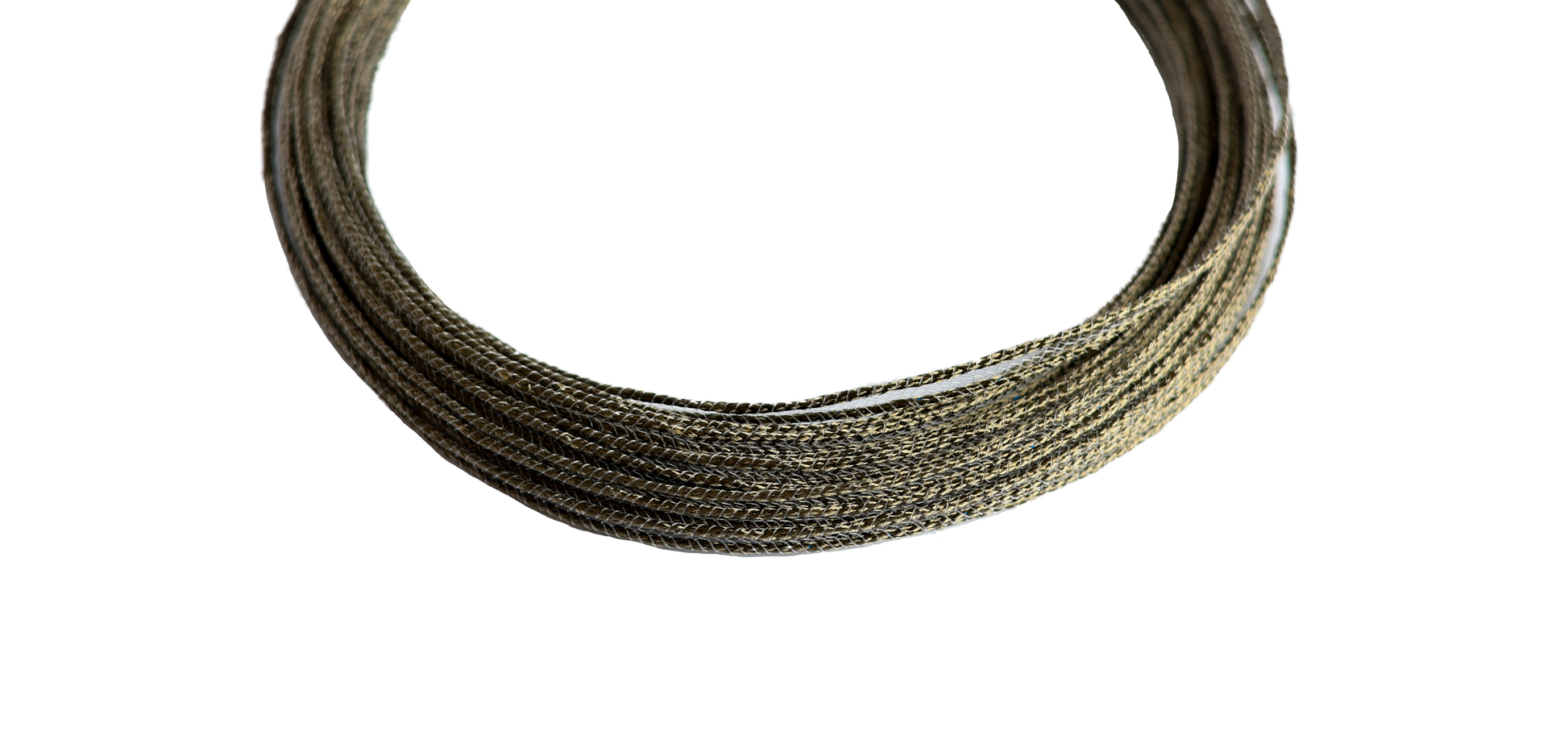

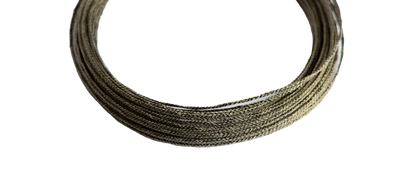

Tatsuta | Zone Sensor | AD-BRS

Tatsuta | Zone Sensor | AD-BRS

This flame-retardant AD-BRS sensor meets the NFPA262 (formerly UL910) flame-retardant standard and offers superior chemical resistance. Designed for demanding environments, it ensures reliable performance while maintaining safety compliance.

View full details

Product Details

Features

  • Electrode Inner Layer: Electrode 1: Conductive ETFE-coated PPS monofilament (0.25mm) braided on tin-plated soft copper wire, 0.33mm²
  • Electrode Inner Layer: Electrode 2: Conductive ETFE-coated PPS monofilament (0.25mm) braided on tin-plated soft copper wire, 0.33mm²
  • Outer Layer: Basalt braid
  • Outer dia. Approx. Approx. dia. 4mm
  • Detection Sensitivity: 3.0ml maximum

Specifications

  • Dia 5mm, wire 0.33mmsq
  • 100m/spool maximum
