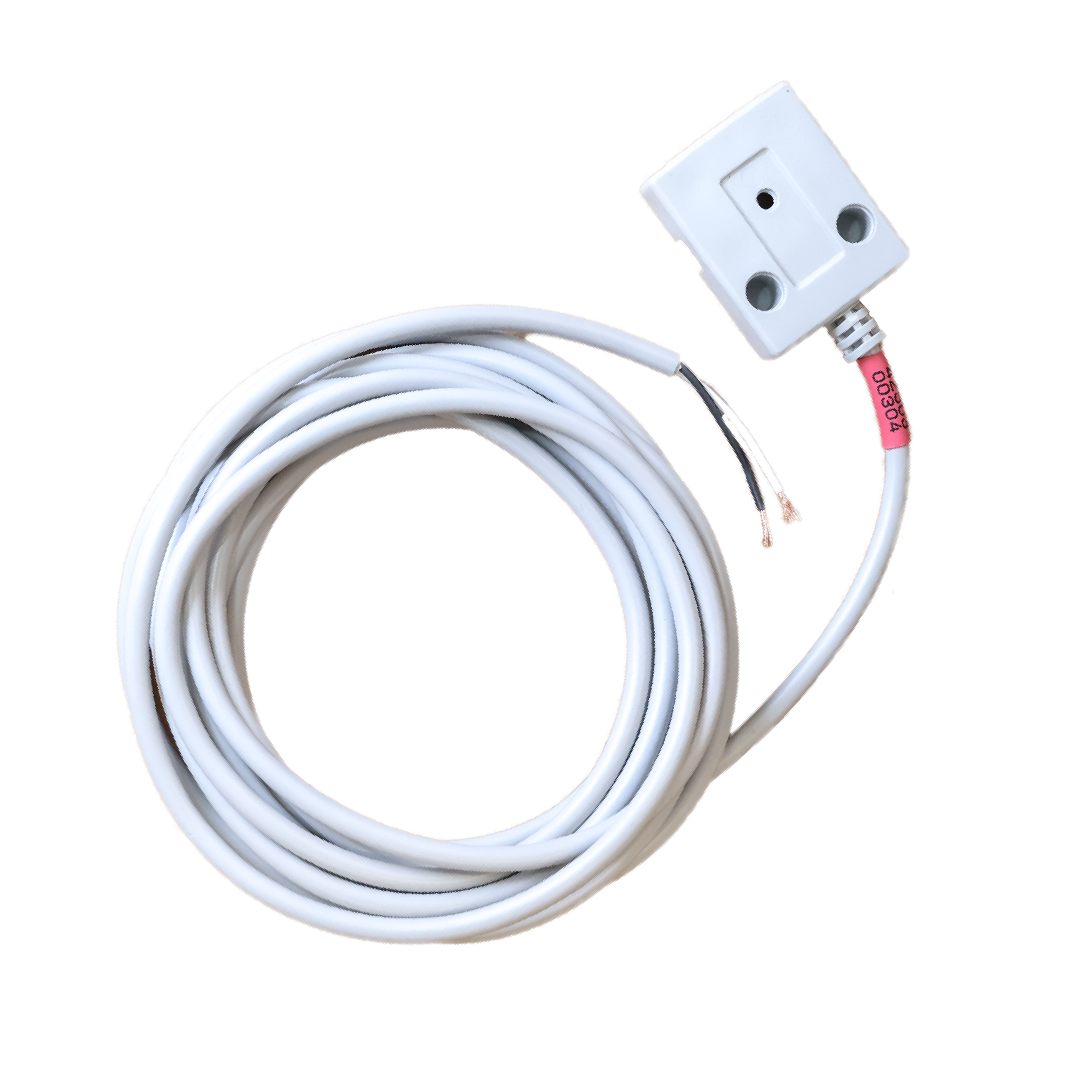

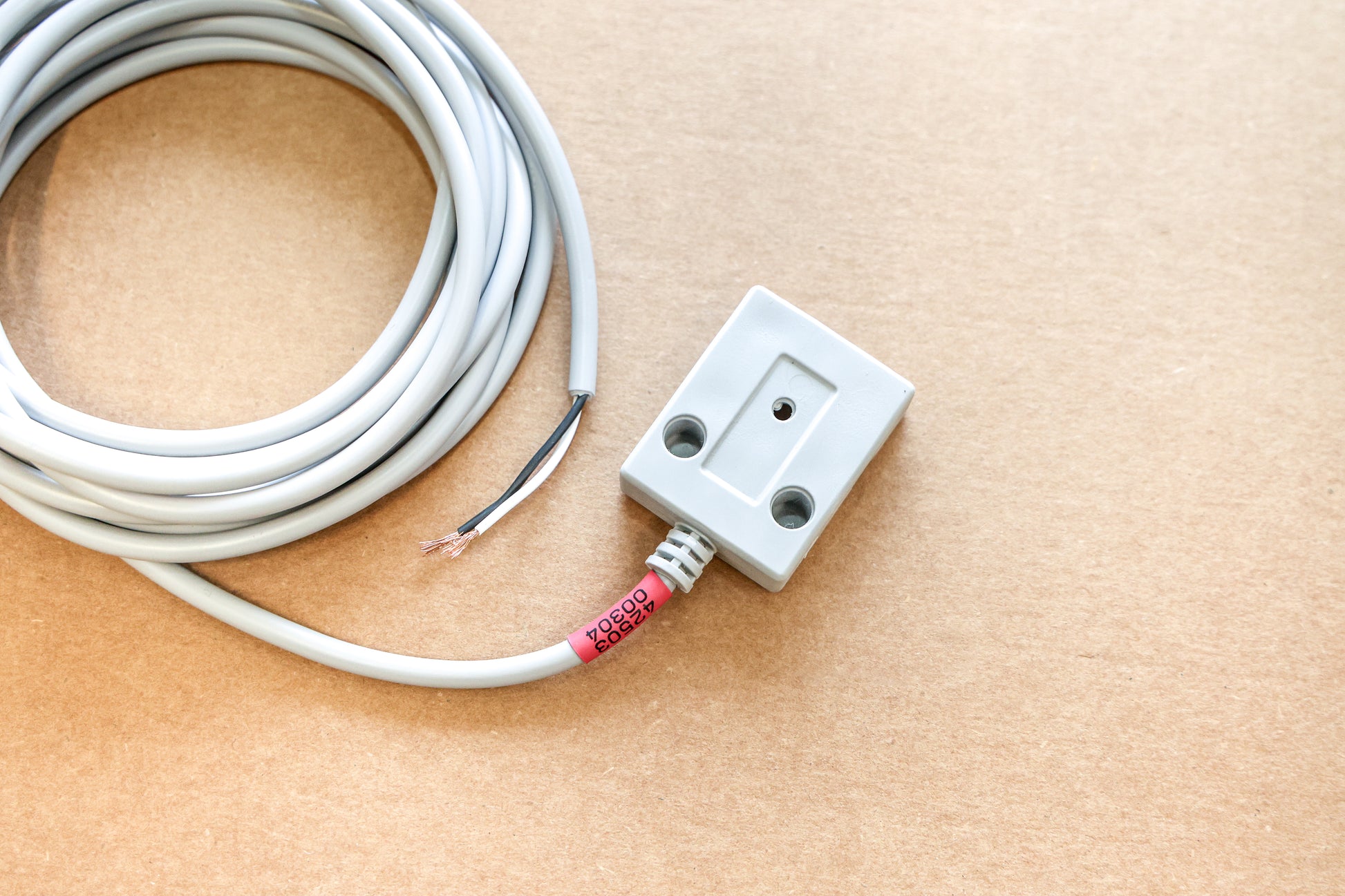

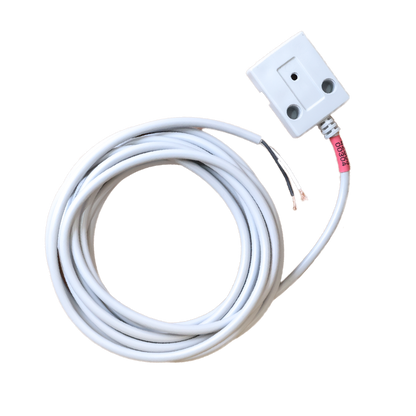

Tatsuta | Zone Sensor | AD-PA-R

• Electrode Inner Layer: Electrode 1: Stainless plate (1mm)
• Electrode Inner Layer: Electrode 2: Stainless plate (1mm)
• Outer Layer: Soft PVC resin mold
• Outer dia. Approx. 40 mm x 50 mm x 14mm
• Lead Wire: MF-VCTF0.5mm² 3.5m
• Detection Sensitivity: Water level 10mm minimum

Point Type

• This floor-standing sensor is designed to be installed in a place where water may gather.

* Built-in wire break detection terminal function

• LW 3.5m, drip pan, with wire break detection marked with RED tube
• 3.5m lead wire
