Tatsuta

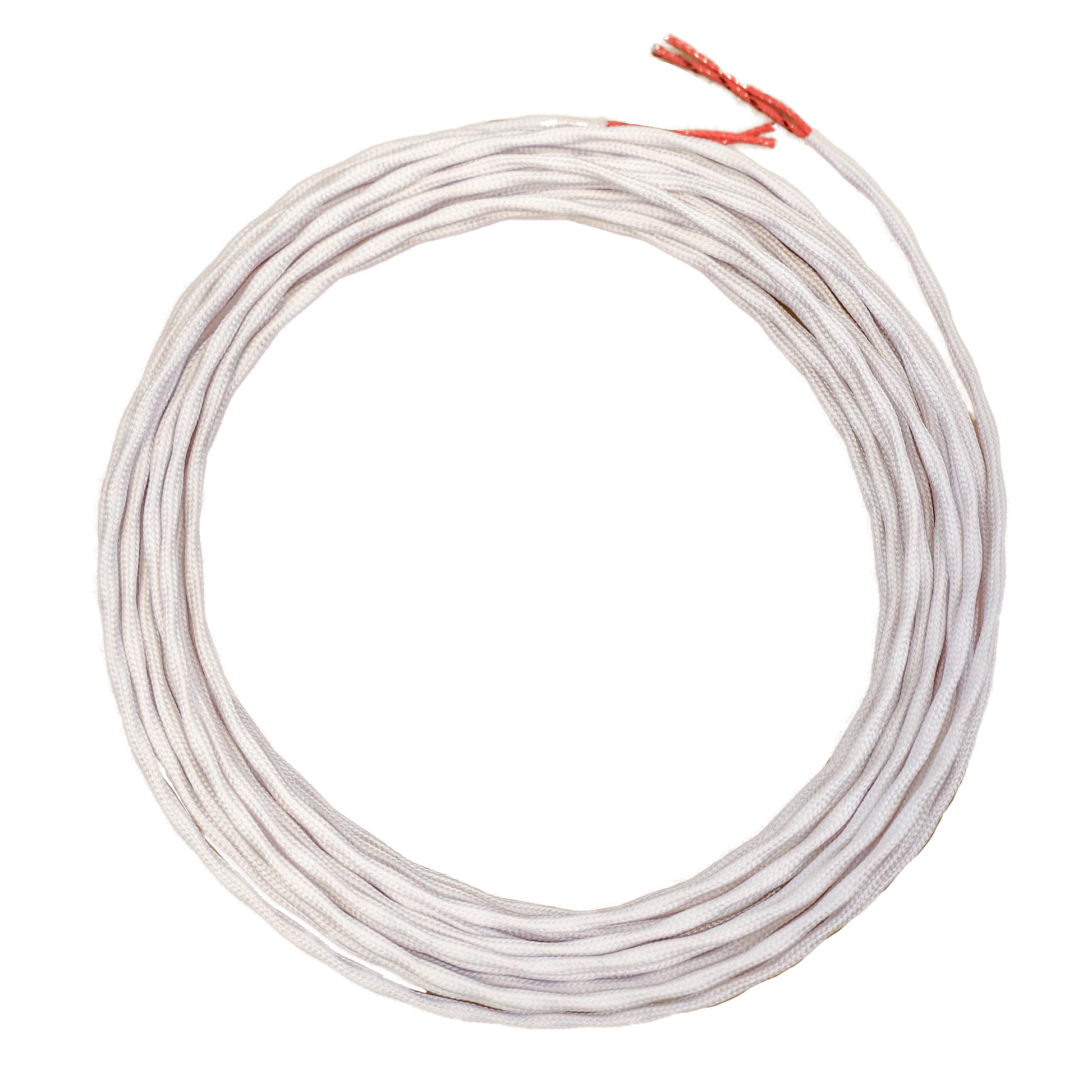

Tatsuta | Zone Sensor | AD-RS

Tatsuta | Zone Sensor | AD-RS

The AD-RS sensor is a color-recovery type designed for precise leak detection. When exposed to water, the sensor area changes to red, enabling quick and accurate identification of the leak point identification. Once dried, it reverts to its original white color, allowing the sensor to be reused.

View full details

Product Details

Features

  • Electrode Inner Layer: Electrode 1: Plastic single tarn braided to tin-plated soft copper wire, 0.3mm²
  • Electrode Inner Layer: Electrode 2: Plastic single yarn braided to tin-plated soft copper wire, 0.3mm²
  • Outer Layer: Plastic yarn braided
  • Outer dia. Approx dia. 4mm
  • Detection Sensitivity: 3ml maximum: one drop (0.05 ml) per second*1

Specifications

  • Dia. 4mm, wire 0.33mmsq
  • 100m/spool maximum
