Tatsuta | Zone Sensor | AD-S

Tatsuta | Zone Sensor | AD-S

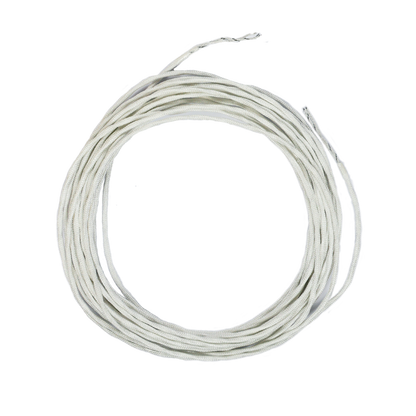

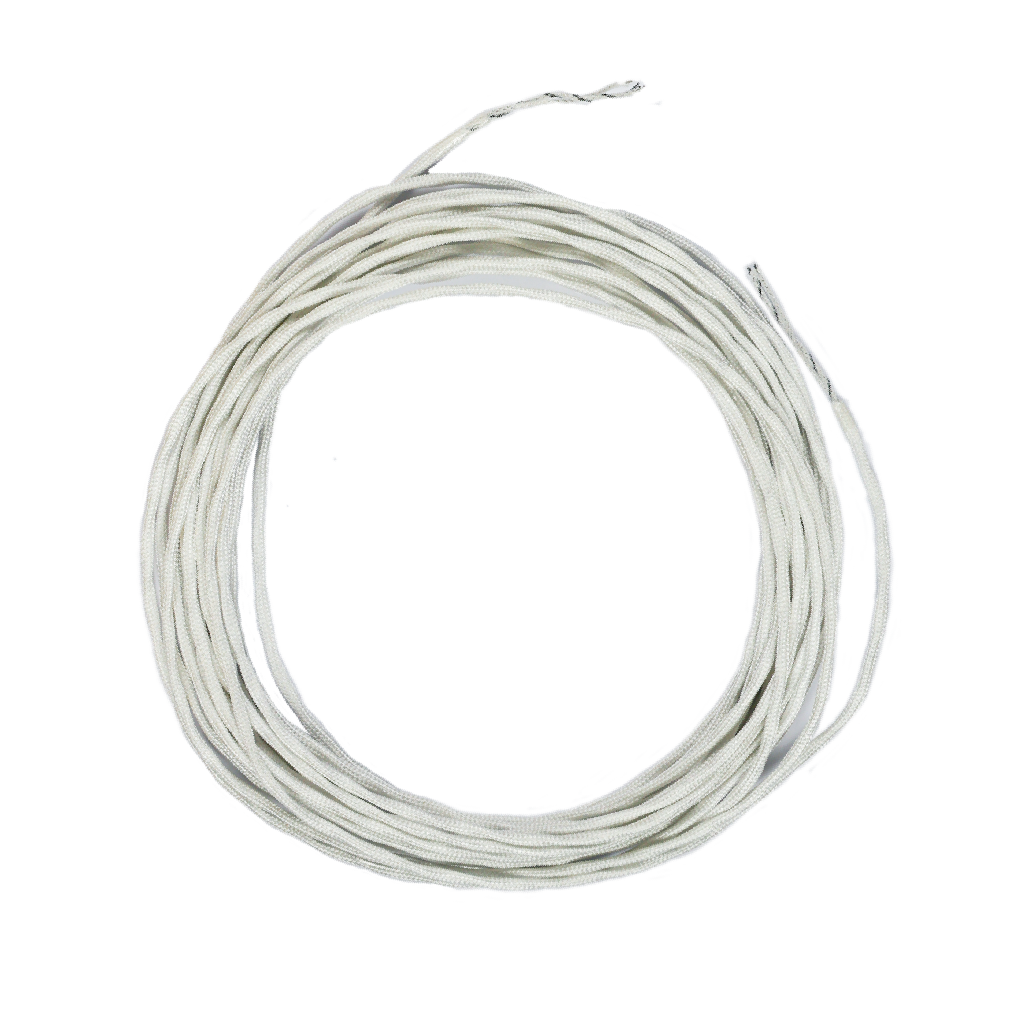

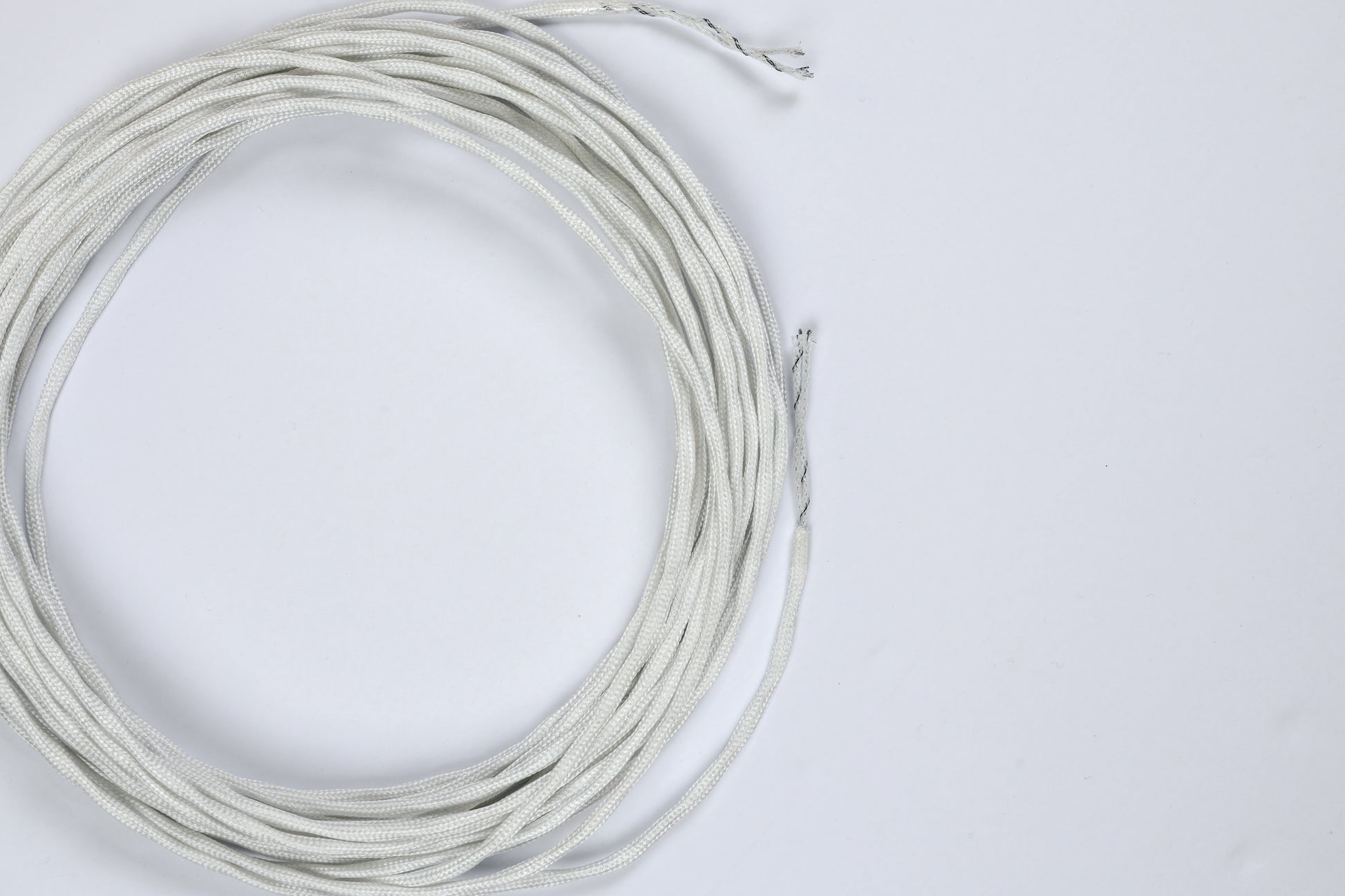

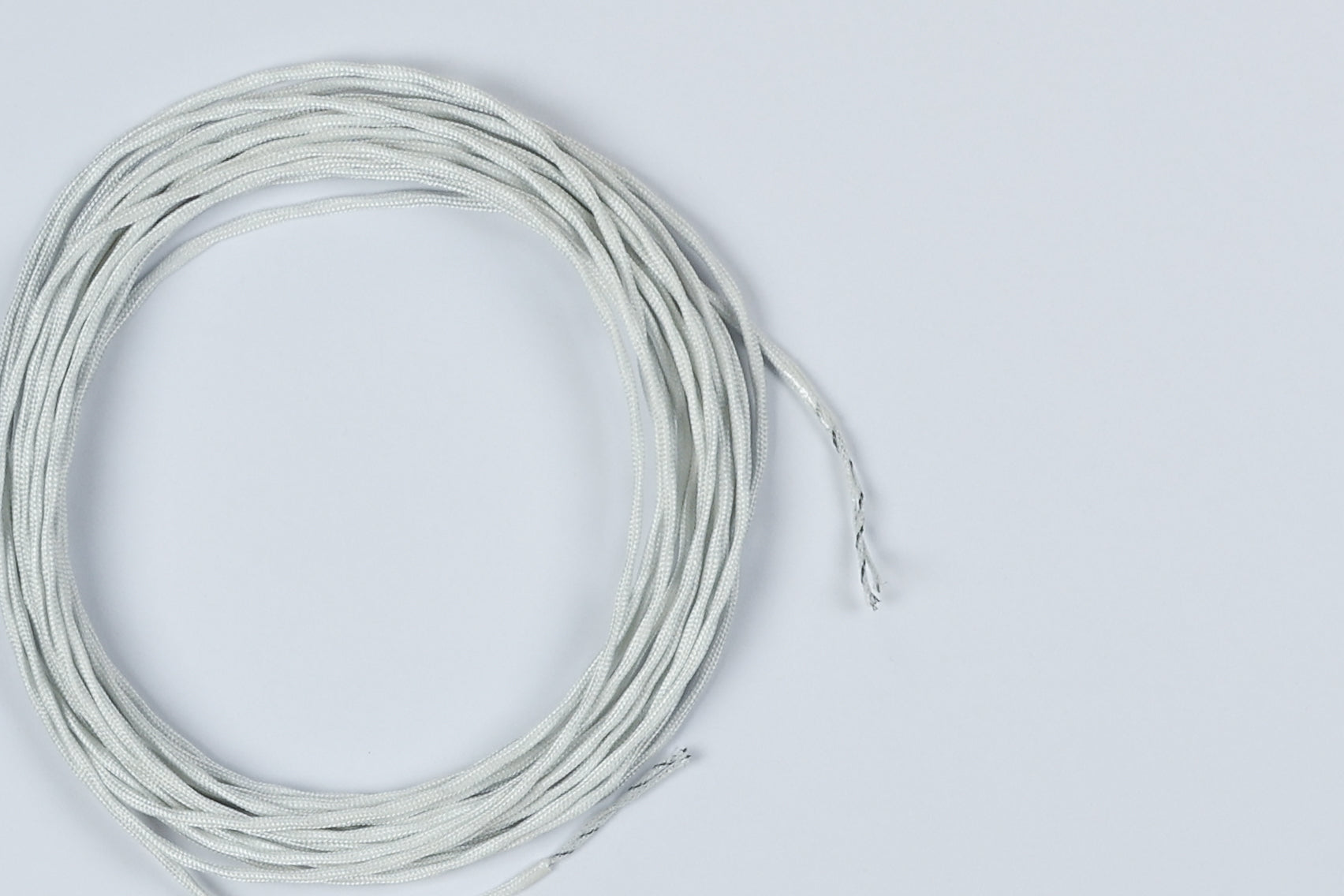

This line-type non-color changing AD-S sensor detects even the slightest leakage of conductive liquid.
View full details

Product Details

Features

  • Electrode Inner Layer: Electrode 1: Plastic single yarn braided to tin-plated soft copper wire, 0.3 mm²
  • Electrode Inner Layer: Electrode 2: Plastic single yarn braided to tin-plated soft copper wire, 0.3 mm²
  • Outer Layer: Plastic yarn braided
  • Outer dia. Approx dia. 4mm
  • Detection Sensitivity: 3ml maximum: one drop (0.05 ml) per second*1
  • *1 Ex-factory setting

Specifications

  • Dia. 4mm, wire 0.33mmsq
  • 100m/spool maximum
