Starrett

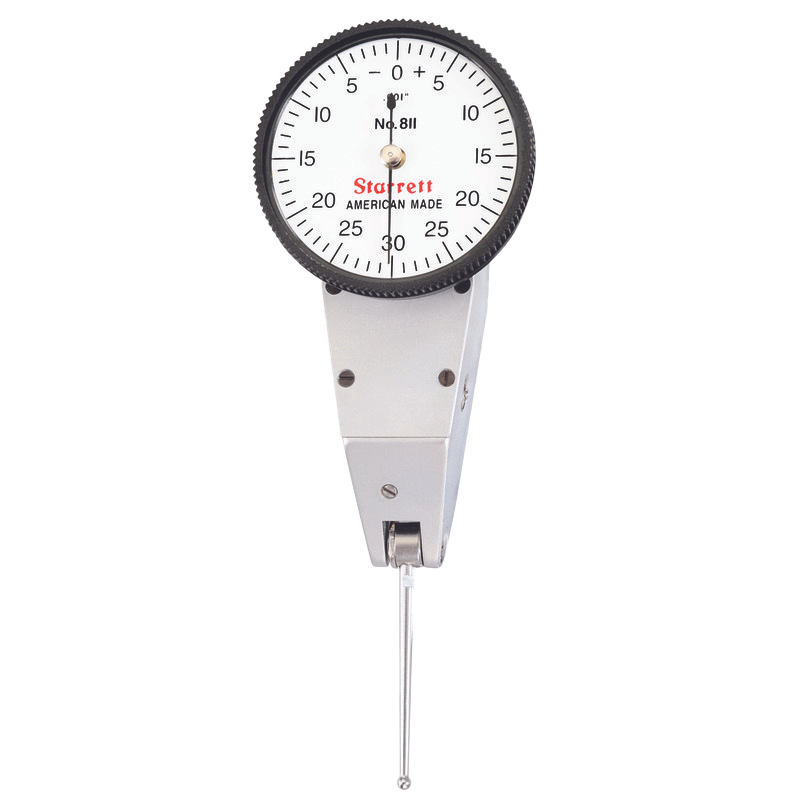

Starrett 0-0.06" 811-1PZ Dial Test Indicator
Starrett 0-0.06" 811-1PZ Dial Test Indicator
SKU:ITM22008064
Starrett 811 Series Dial Test Indicator with Swivel Head, .060" Range, 0-30-0 White Dial, .001 Graduations
Regular price
$896.00 USD
Regular price
Sale price
$896.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Details
Features
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Contacts also available individually in steel, carbide and different sizes
- Some of the most versatile and unique indicators available
- Swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle in between 90 Deg
- In Case
- Inch reading indicators are available with white, red, or black dials - metric indicators with yellow dials
- Smooth, jeweled movement
- Large, 1-3/8" (35mm) dial diameter for increased readability
- Two positioning mounts work with dovetail test indicator accessories
Specifications
- Product Series: 811
- Contact Ball Material:Steel
- Contact Point Ball Diameter (in):.078" (2mm)
- Contact Point Ball Diameter (mm):2mm (.078")
- Contact Point Length (in):1-5/16"
- Contact Point Length (mm):33mm
- Dial Color:White
- Dial Reading:0-30-0
- Attachments:Without Attachments
- Max. Range (in):0.06
- Min. Range (in):0
- Graduations (in):.001"
- Range (in):.060"
