• Starrett 440Z-6RL Depth Micrometer
1 1

Starrett

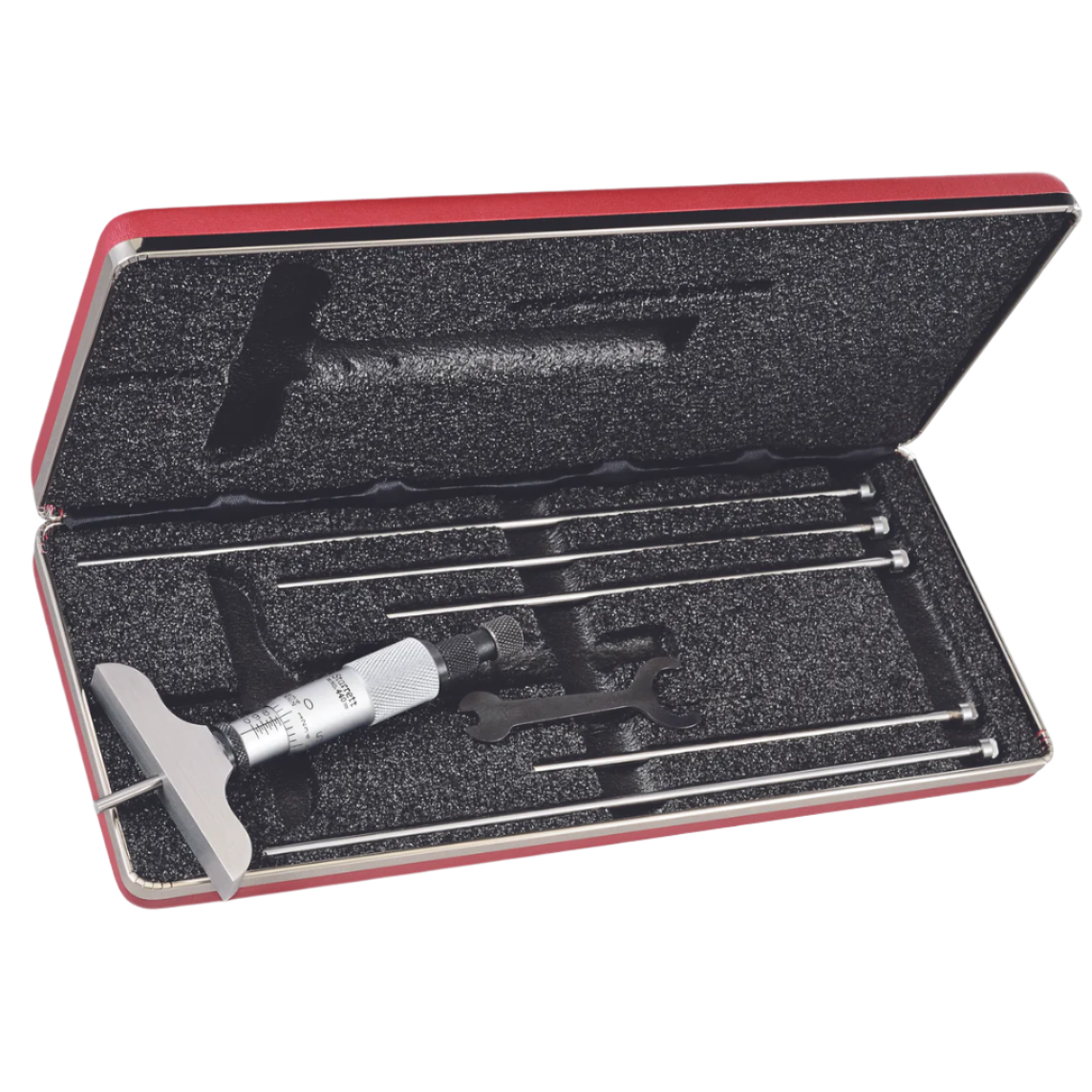

Starrett 0-6" 440Z-6RL Depth Micrometer

Starrett 0-6" 440Z-6RL Depth Micrometer

ITM22005548

Starrett Depth Micrometer, ratchet and speeder, ring-type locknut, ratchet stop and locknut. 0-6" Range, 2 1/2" Base, 6 Rods, Ratchet Stop, Lock Nut, Case

$472.00 USD
$472.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

Features

  • The depths of holes, slots, shoulders and projections can be measured with these fine tools
  • 2-1/2" (63.5mm) base and 1/8" (3.2mm) diameter measuring rods
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
  • Ring-type knurled lock nut for quick and sure locking

Specifications

  • Product Series: 440
  • Range (in): 0-6"
  • Rod Diameter (in): 1/8"
  • Accuracy (in): Mic head +/-.0001"; Rods +/-.0002"
  • Thimble Type: Ratchet
  • Case Type: Padded Case
  • Depth Micrometer Type: Mechanical
  • Base Length (in): 2-1/2"
  • Max. Range (in): 6
  • Min. Range (in): 0
  • Graduations (in): .001"
  • Lock Nut Type: Ring Type Knurled
  • Measuring Rods (qty): 6
  • Micrometer Type: Depth
