Ametek Crystal Pressure

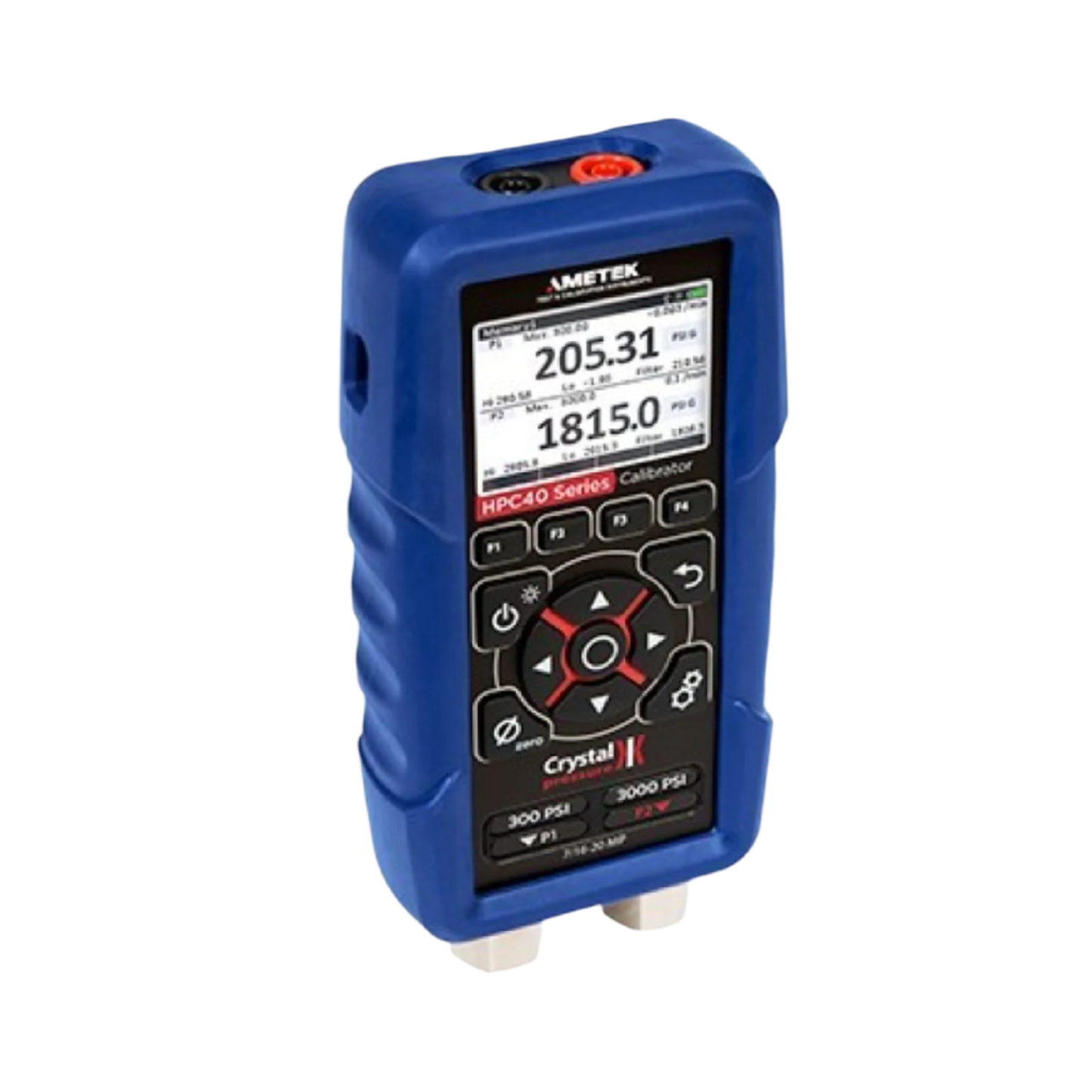

Ametek Crystal HPC42 30 PSI-3K PSI Dual Sensor Pressure Calibrator
Ametek Crystal HPC42 30 PSI-3K PSI Dual Sensor Pressure Calibrator
SKU:ITM24070676
Ametek Crystal HPC42 Dual Sensor Pressure Calibrator with BARO option, 30 psi/3000 psi
Regular price
$4,941.00 USD
Regular price
Sale price
$4,941.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Details
Features
- Gauge, absolute, and differential pressure to 15,000 psi / 1000 bar / 100 Mpa
- Advanced simplicity "Non-Menu" interface
- High accuracy thermometer with "True Ohm" technology
- 0.035% of reading accuracy
- Flexible power options including rechargeable
Specifications
- Product Series: HPC42
- Differential Pressure Range: 30-3000 psi
- Accuracy: 0 to 30% of range: ±(0.015% of full scale), 30 to 110% of range: ±(0.050% of reading), Vacuum : ±(0.05% of full scale)
- Pressure Sensor: Wetted materials: (wrench tight) 316 stainless steel, (finger tight) 316 stainless steel, and Viton (internal o-ring) (10 psi/1 bar/100 kPa) 316 stainless steel and Viton
- Diaphragm seal fluid: Silicone oil
- Connection: Crystal CPF Female
