Fluke

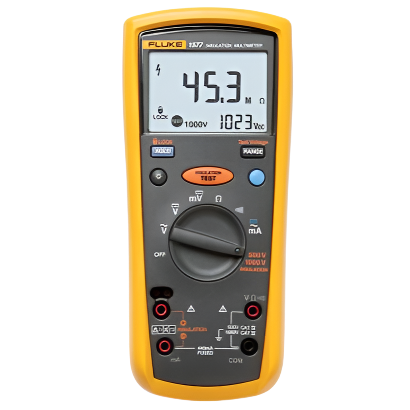

Fluke-1577 Insulation Multimeter
Fluke-1577 Insulation Multimeter
SKU:ITM24070566
Fluke 1577 True-RMS Megohmmeter/Insulation Resistance Tester and Multimeter
Regular price
$1,011.91 USD
Regular price
Sale price
$1,011.91 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Details
Features
- Insulation test voltages 500 V, 1000 V
- Insulation test: 0.1 MΩ to 600 MΩ
- Auto discharge of capacitive voltage
- AC/DC Voltage and milliamps
- Three-year warranty
- DC millivolts
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
Specifications
- Voltage DC Maximum Voltage: 1000 V, Accuracy: ±(0.2%+2), Maximum resolution: 0.001 V
- Voltage AC Maximum voltage: 1000 V, Accuracy: ±(2%+3), Maximum resolution: 0.1 mV
- Current DC Maximum amps: 400 mA, Current DC Amps Accuracy: ±(1.0%+2), Maximum resolution: 0.01 mA
- Current AC Maximum amps: 400 mA, Amps accuracy: ±(2.0%+2)*, Maximum resolution: 0.01 mA
