Fluke

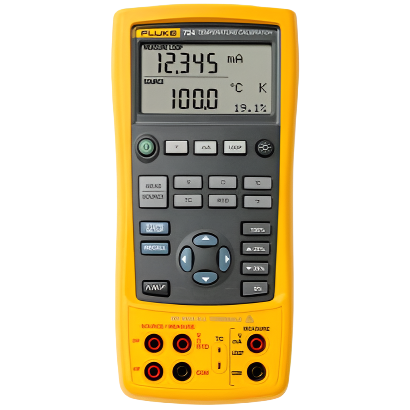

Fluke-724 Temperature Calibrator

SKU:ITM22001411

Fluke 724 Handheld Temperature Calibrator: RTD/Thermocouple, 0 to 100mV DC, 0 to 3,200 ohm

$3,503.99 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product Details

Everything you need to troubleshoot and calibrate temperature sensors and transmitters
Powerful, easy-to-use, high-accuracy temperature calibrator
Test and calibrate temperature sensors and transmitters
Measures 4 to 20 mA loops and can provide loop power
Measures RTDs, thermocouples, ohms, and volts
Source/simulates thermocouples, RTDs, volts, and ohms

Measurement Accuracy Voltage DC: 30.000 V: 0.02% + 2 counts (upper display), 20.000 V: 0.02% + 2 counts (lower display), 100.00 mV: 0.02% + 2 counts, -10.00 to 75.00 mV: 0.025% + 1 count (via TC connector)
Current DC: 24.000 mA: 0.02% + 2 counts
Resistance: 0 to 400.0 Ω: 0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire), 401 to 1500 Ω: 0.5 Ω (4-wire), 1 Ω (2- and 3-wire), 1500 to 3200 Ω: 1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Source Accuracy Voltage DC: 100.00 mV: 0.02% +2 counts, 10.000 V: 0.02% +2 counts, –10.00 to 75.00 mV: 0.025% + 1 count (via TC connector), Source Accuracy Resistance: 15.0 to 400.0 Ω: 0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA), 401 to 1500 Ω: 0.5 Ω (excitation current 0.05 to 0.8 mA), 1500 to 3200 Ω: 1 Ω (excitation current 0.05 to 0.4 mA)
Ramp Functions: Source functions: Voltage, current, resistance, frequency, temperature Ramps: Slow ramp, Fast ramp, 25% step-ramp
Loop Power Function: Voltage: 24 V, Accuracy: 10%, Maximum current: 22 mA, short circuit protected
Step Functions: Source functions: voltage, resistance, temperature Steps: 25% of range, 100% of range
