Gems Sensors & Controls

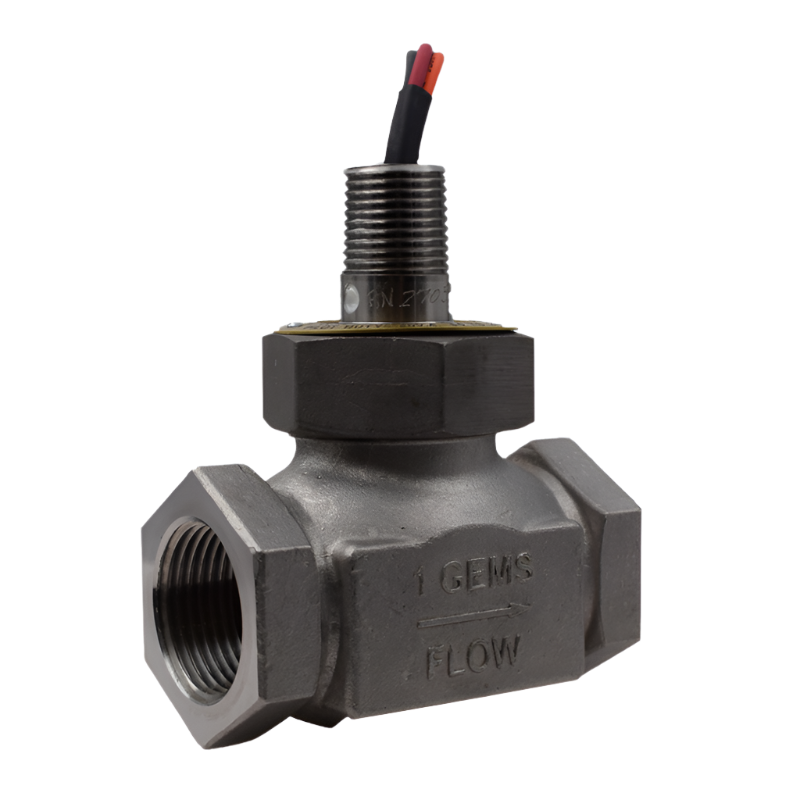

0-1.0 GPM 27052 Gem's FS-200 Flow Switch

0-1.0 GPM 27052 Gem's FS-200 Flow Switch

ITM22003858

Gems FS-200 Series 1 GPM Flow Switch, Shuttle type sensor, Bronze Body, 1" NPT Female Port Size, Set Point Accuracy +/-10%

$389.07 USD
$389.07 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

Features

Gems FS-200 Series Adjustable Flow Switch are externally adjustable and offer accurate flow detection, with 1% repeatability, over a broad range of flow settings and port sizes

  • Flow Rate Settings: 0.5 GPM to 50 GPM
  • Port Size: 1" NPT to 2" NPT
  • Primary Construction Material: Bronze or Stainless Steel
  • Setting Type: Fixed

Specifications

  • Product Series: FS-200
  • Sensor Type: Shuttle Type
  • Primary Material of Construction: Alloy
  • Body Material: Bronze
  • Wetted Material: Bronze, Teflon, 316 Stainless Steel, Viton & Ceramic
  • Flow Setting: 1 GPM
  • Flow Setting Range:  0-1.0 GPM
  • Set Point Accuracy: +/-10%
  • Set Point Differential: 15%
  • Switch Type: SPDT (20 VA)
  • Port Size: 1" NPT Female
  • Electrical Termination: 24" Long, 18 AWG, Polymeric Leads
  • Weight: 2.6 Lbs
