Ametek Crystal Pressure

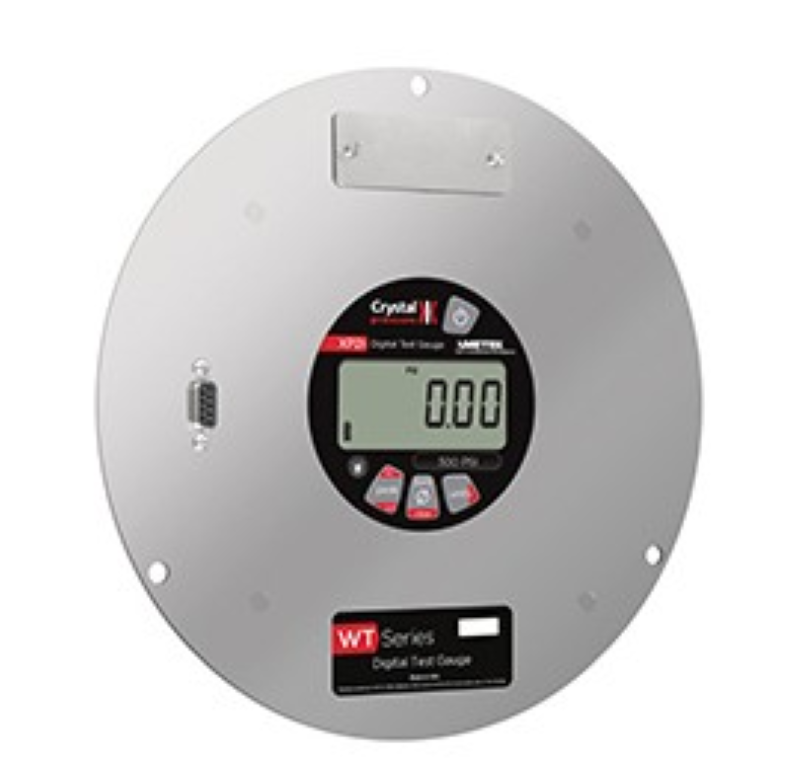

0-15 PSI Panel Mount Crystal WT Digital Pressure Gauge

0-15 PSI Panel Mount Crystal WT Digital Pressure Gauge

ITM22014066

Ametek Crystal WT Series Digital Pressure Gauge, 0 to 15 psi, 10.12" panel mount, rugged aluminum alloy

$1,956.00 USD
$1,956.00 USD
Sale Sold out
View full details

Product Details

Features

  • Comes with an aluminum alloy utilizing a gasket to seal the enclosure from dust and water intrusion, this digital pressure gauge is of leading-edge technology and rugged-industrial design
  • 0.1 % of reading accuracy
  • Batteries and digital communications are accessible from the front
  • Rugged "Wally Box" gauge can withstand dropping and accidental over-pressurization
  • Continuous capture of peak and valley pressure readings
  • All welded 316 stainless steel sensor

Specifications

  • Product Series: WT
  • Pressure Range: 0-15 psi
  • Accuracy: 20 to 100% of full scale: ±(0.1% of reading), 0 to 20% of full scale: ±(0.02% of full scale), Vacuum, for 300 PSI, 20 bar, 2000 kPa, and lower pressure gauges: ±(0.25% of full scale), where F.S. = -14.5 psig, -1.0 bar, -100.0 kPa
  • Panel Mount Flange Size: 8.5" (215.9 mm)
  • Connections: Communication: DB-9, RS-232 (environmentally sealed), Pressure Connection: â…›" female NPT
  • Housing: Aluminum, stainless steel
  • Weight: 2.7 lb
