REOTEMP

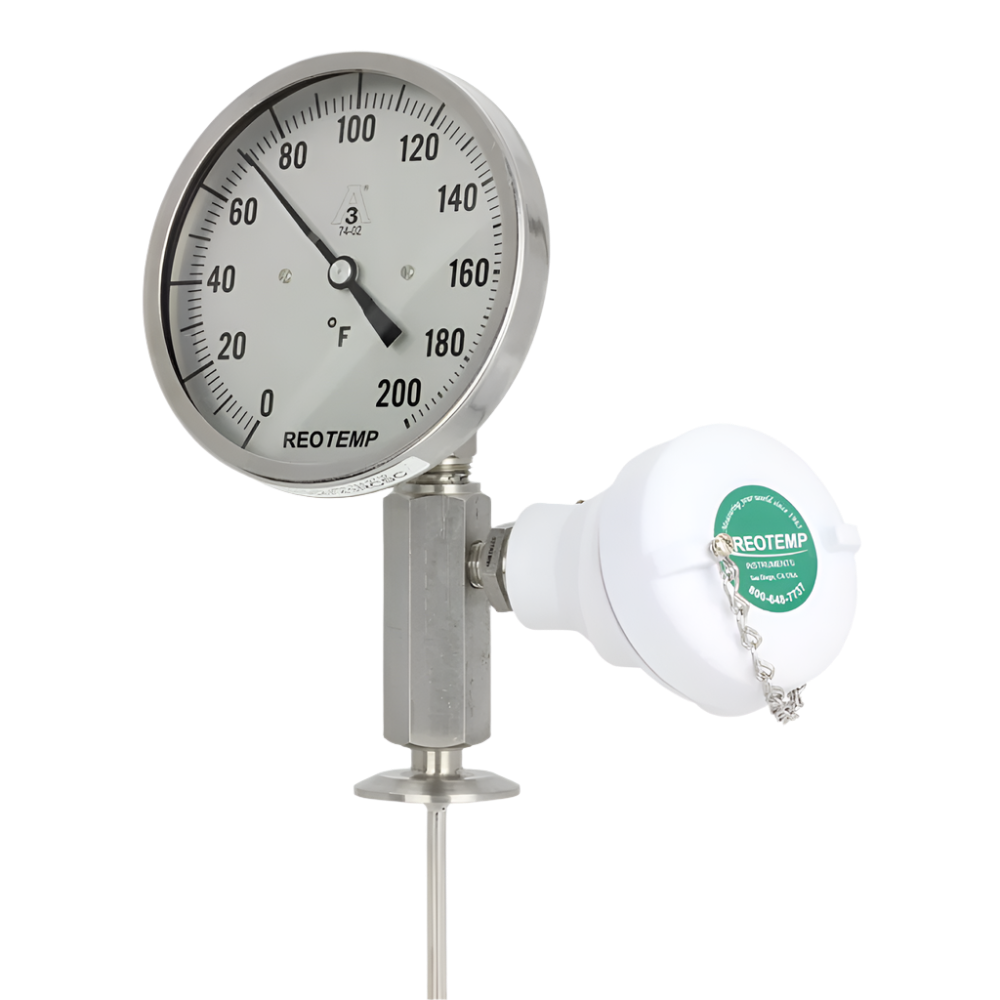

0-200 Deg F/-10-90 Deg C Reotemp DM Dual Mode Thermometer

0-200 Deg F/-10-90 Deg C Reotemp DM Dual Mode Thermometer

ITM23068204

Reotemp Dual Mode RTD/Bimet Thermometer, 0-200 F/C, 4" Dial, 4" Stem, 1/2" NPT, 3 wire 4-20 mA Transmitter

$0.00 USD
$0.00 USD
Sale Sold out
View full details

Product Details

Features

  • Reotemp’s Dual Mode Thermometer (DMT) is a convenient, multi-purpose indicator for local and remote temperature monitoring
  • This rugged dual sensor system puts TWO independent sensors in ONE THERMOWELL, and allows easy tie-in to process controls
  • Special sensor encapsulation and optional liquid flling make the DMT the most rugged, durable instrument of its kind
  • Increase Reliability with Independent Local and Remote Reading (Up to 1000°F) from One Thermowell
  • Redundant Sensors for Simple, Efective Calibration or Spot Checking Without Removing the Instrument from the Thermowell
  • Interchangeable with Existing Thermometer, RTD, or Thermocouple

Specifications

  • Style & Stem Diameter: 4" Adjustable-Angle 1/4" Stem
  • Stem Length: 4"
  • Dual Ranges: 0-200 & -10-90
  • Sensor: Single RTD, Pt. 100 ohm, 3-wire (Max. 600 Deg F-DM4) (Max 900 Deg F-DMT)
  • Accuracy: +/- 1% of Full Scale
  • Heads/Output Connections: Cast Aluminum
  • Electrical Connection: 4-20mA Transmitter
  • Included: Three Point Calibration Cert
