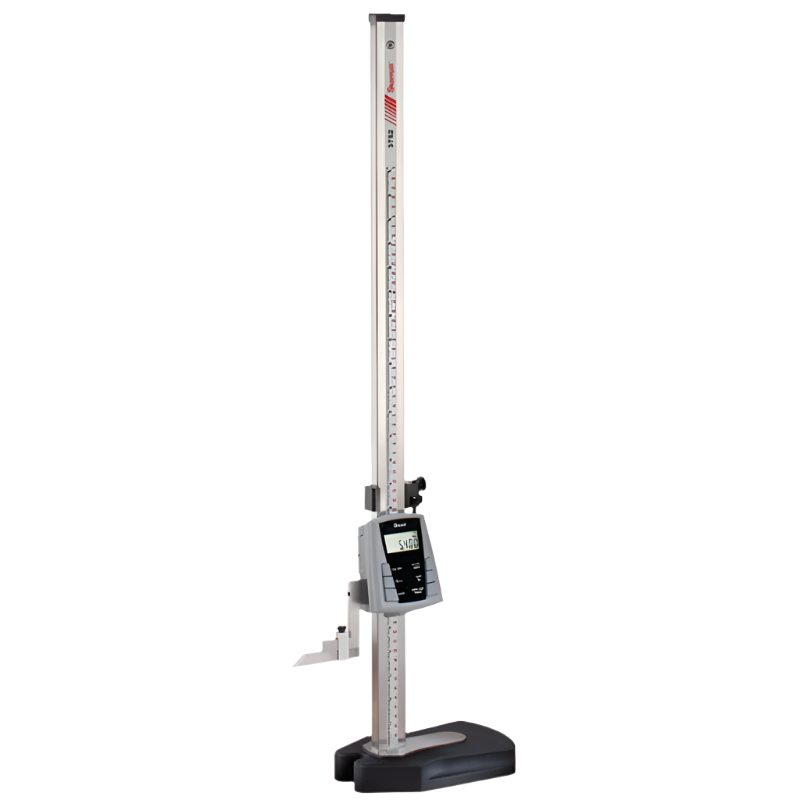

Starrett 0-24" 3754-24/600 Electronic Height Gage

Starrett 0-24" 3754-24/600 Electronic Height Gage

ITM22004751

Starrett Electronic Height Gage, 0-24" Range, .0005" Resolution, SPC Output, with Scriber

$1,757.00 USD
$1,757.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

Features

  • Large (9.65mm/3/8"), easy-to-read LCD display reads to 0.01mm or .0005"
  • Instant unit conversion
  • Carrier and scriber designed to read from zero
  • Hold control feature retains a reading at any position
  • Plus or minus indication allows reading in proper direction
  • Ability to set zero at any position
  • Manual on/off plus a built-in automatic off after 30 minutes of non-use to conserve battery life
  • Large positive action keypad
  • Ability to retain and return to the true zero reading of the height gage
  • PRESET button to install any reading at any position
  • Ability to install minimum and maximum limits
  • RS232 data output port
  • Works well with Starrett DataSure Wireless Data Collection Systems
  • 1-1/2+ years battery life. Two batteries furnished (CR2032)
  • The base is well-balanced, hardened, ground and lapped



Specifications

  • Product Series: 3754
  • Range (in): 0 - 24"
  • Range (mm): 0 - 600mm
  • Resolution (in): .0005"
  • Resolution (mm): 0.01mm
  • Accuracy (in): (+/-)0.0015" for 0-18"; (+/-)0.002" for 18-24"
  • Accuracy (mm): (+/-)0.04mm for 0-450mm; (+/-)0.05mm for 450-600mm
  • Max. Range (in): 24
  • Max. Range (mm): 600
  • Min. Range (in): 0
  • Min. Range (mm): 0
