Ametek US Gauge

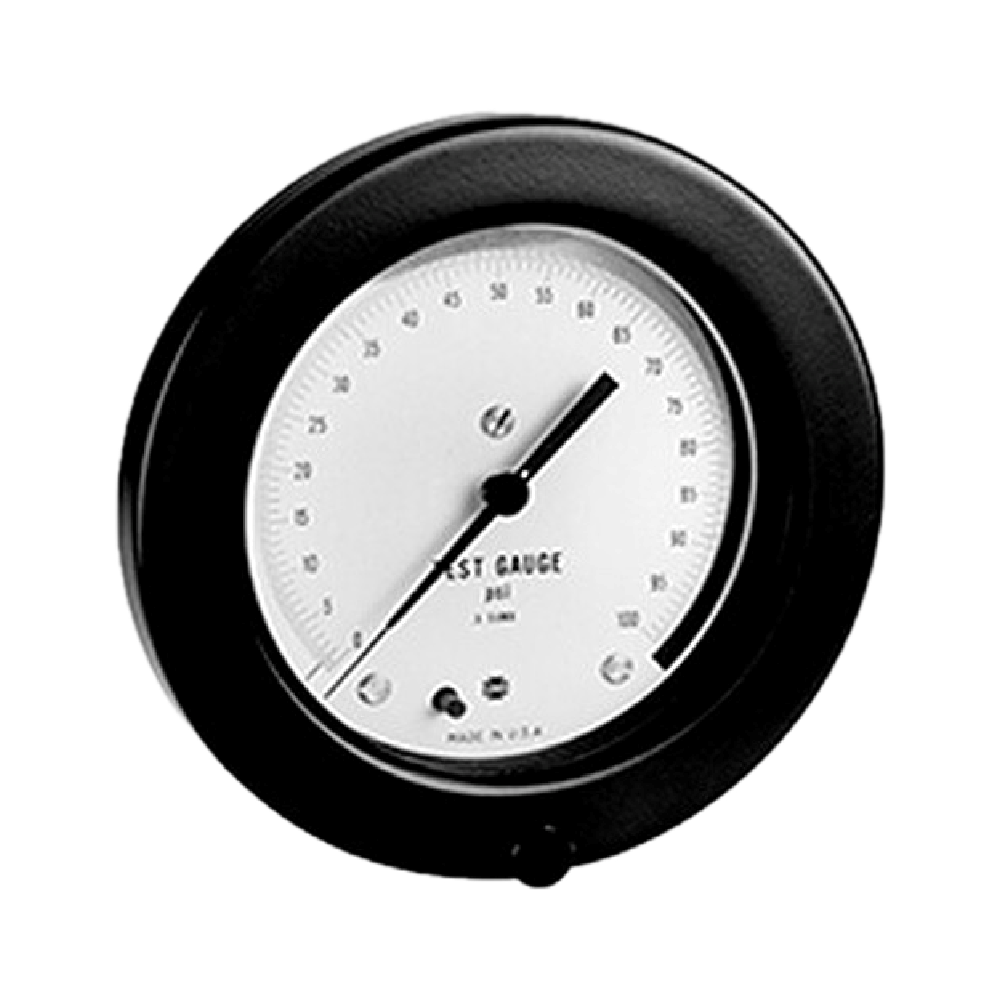

0-300 PSI 1/4" NPT 4.5" US Gauge Pressure Test Gauge

0-300 PSI 1/4" NPT 4.5" US Gauge Pressure Test Gauge

SKU:ITM23066486

US Gauge 0-300 psi Model 1403 4 1/2" dial Brass Internals 1/4" NPT lower back mount connection Dry

Regular price $554.90 USD
Regular price Sale price $554.90 USD
Sale Sold out
View full details

Product Details

Features

• This gauge has a low back mount brass socket available in both a 1/4" or 1/2" NPT connection

• Features a seamless phosphor bronze or beryllium copper bourdon tube

• Pressure ranges are from vacuum to 5000 psi

• The model 1403 has a geared ARC-LOC movement to minimize friction and wear

• These gauges are available with a NIST Calibration Certificate option

Specifications

• Product Series: 1400 Test Gauges

• Wetted Material: Copper Alloy

• Case Material: Aluminum

• Pressure Range: 0 to 300 PSI

• Case Style: Front Flanged Mount

• Dial Size: 4.5"

• Connection Size & Location: 1/4" NPT Lower Back Mount

• Accuracy: +/- 0.25% of Span
