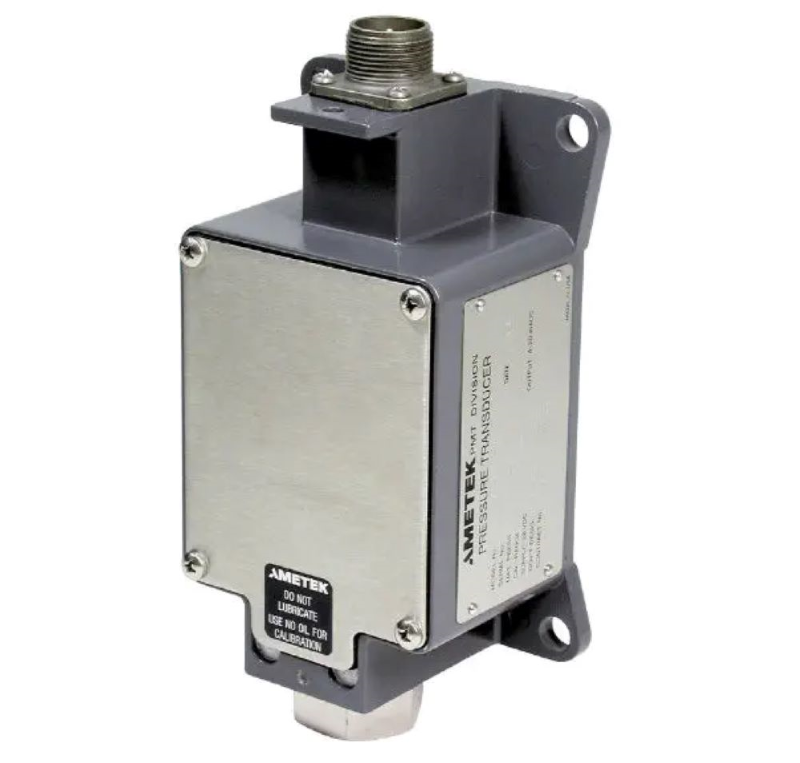

0-50 PSI Ametek US Gauge Model 89P Military QPL Pressure Transducer

The Model 89 pressure transducer has been specially designed to meet the needs of military and/or marine applications and conforms to military specification MIL-P-24212C (SH). The Model 89 accurately measures pressures and transmits a fully adjustable 4-20 mA output signal for remote display, recording or control.  There is minimal maintenance and calibration is quick and easy with the non-interacting zero and span adjustments.

• QPL approved to MIL-P-24212C (SH)
• Non-interacting zero and span adjustments for quick calibration
• Mounting interchangeable with existing instrument mounts
• Pressure connections conform to MS16142
• The mounting is designed to match the footprint of existing transducers for quick and easy installation and is interchangeable with all existing pressure transducers designed to MIL-P-24212C (SH).

Need Assistance Configuring this product?  Contact us!

• Product Series: Model 89 Military QPL Pressure Transducer
• Pressure Range: 0-50 PSI
• Applications: Steam, oil, sea water, flue gas, ammonia, oxygen, other gases, fresh water, condensate
• Output: 4-20 mADC
• Loop Resistance: 0-250 ohms
• Zero/Span Adjustments: 8% F.S. output
• Temperature Limits: Compensated 0°C to 65°C (32°F to 149°F)
• Overpressure: 200% of range up to maximum of 10,000 psi (whichever is less)
• Humidity: 0-100% RH
• Accuracy: ± 1.0% of calibrated span including linearity, hysteresis, and temperature effects
• Repeatability: Within 0.5% of span
• Shock Test: In accordance with Grade-A, Class I, Type C of MIL-S-901
• EMI: In accordance with MIL-P-24212C (SH)
