Ametek US Gauge

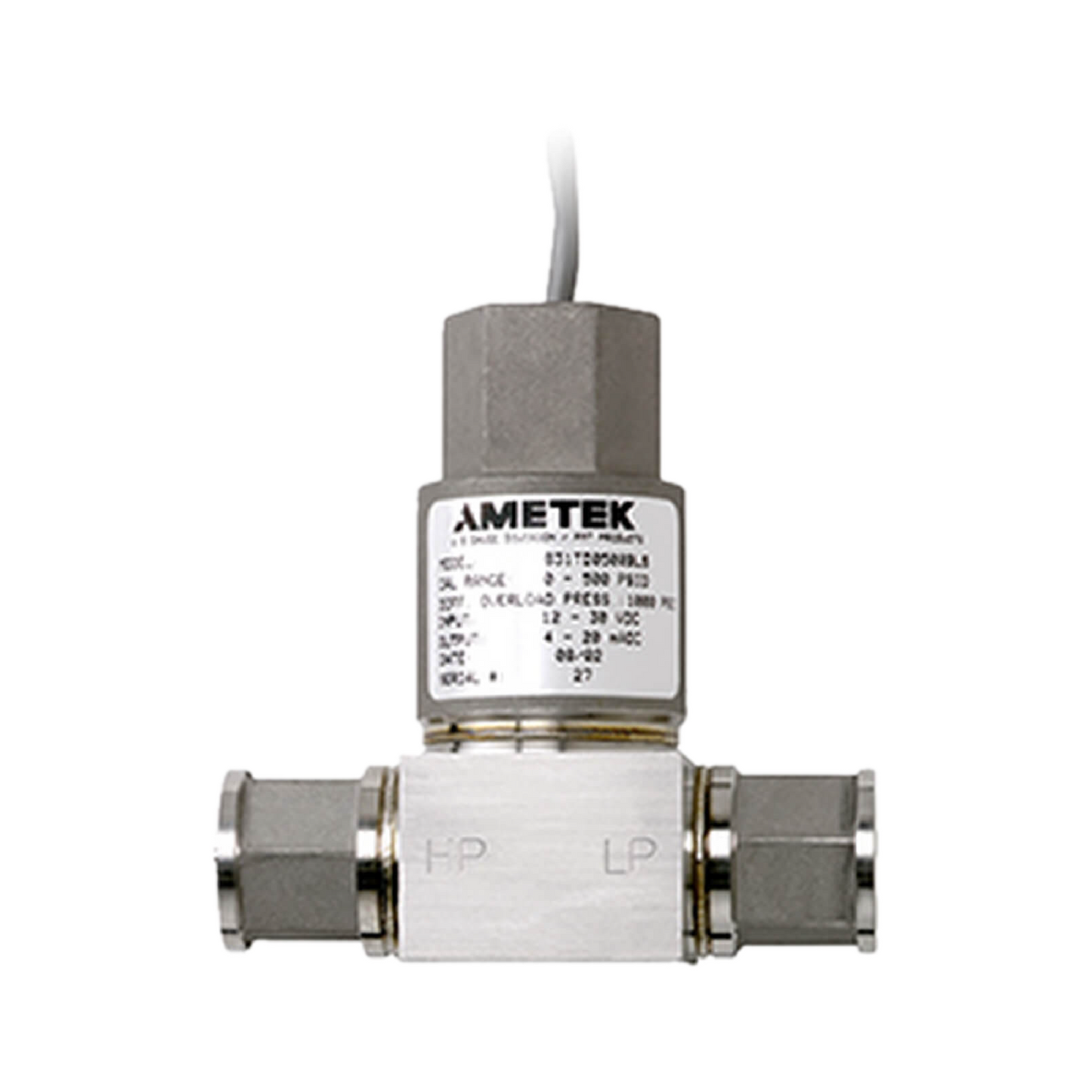

Ametek US Gauge 831 0-5000 PSI Pressure Transmitter
Ametek US Gauge 831 0-5000 PSI Pressure Transmitter
SKU:ITM24070585
US Gauge 831 Pressure Transmitter 5000 Psi, Electrical Termination PVC Cable, Cable Length 2 Ft
Regular price
$632.75 USD
Regular price
Sale price
$632.75 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Details
Features
- An explosion-proof fixed range pressure sensor available in differential pressure, low power, or standard pressure versions
- The Model 831 pressure transmitter is the most durable, accurate and cost effective fixed range transmitters on the market with an all welded 316 stainless steel construction and wetted parts
- Known for years of stable performance in even the toughest environmental and corrosive media conditions
- This transmitter is weatherproof and capable of a direct spray with forces up to 200 psi without internal leakage
- The 831 is available in pressure ranges from 6 psi to 5000 psi, or differential 6 psid to 500 psid
Specifications
- Product Series: 831 Explosion Proof
- Process Connection: 1/2" NPT Female Standard, 316 L SST
- Input/Output: 12-30 VDC/4-20 mA
- Diaphragm Material: 316 L SST
- Pressure Range: 0-5000 psi
- Liquid Fill: Silicone Oil (Standard)
- Electrical Termination: PVC Cable (Standard)
- Cable Length: 2 ft/0.6 m (Standard)
