• Starrett 1202F-6 Fractional Dial Caliper
1 3

Starrett

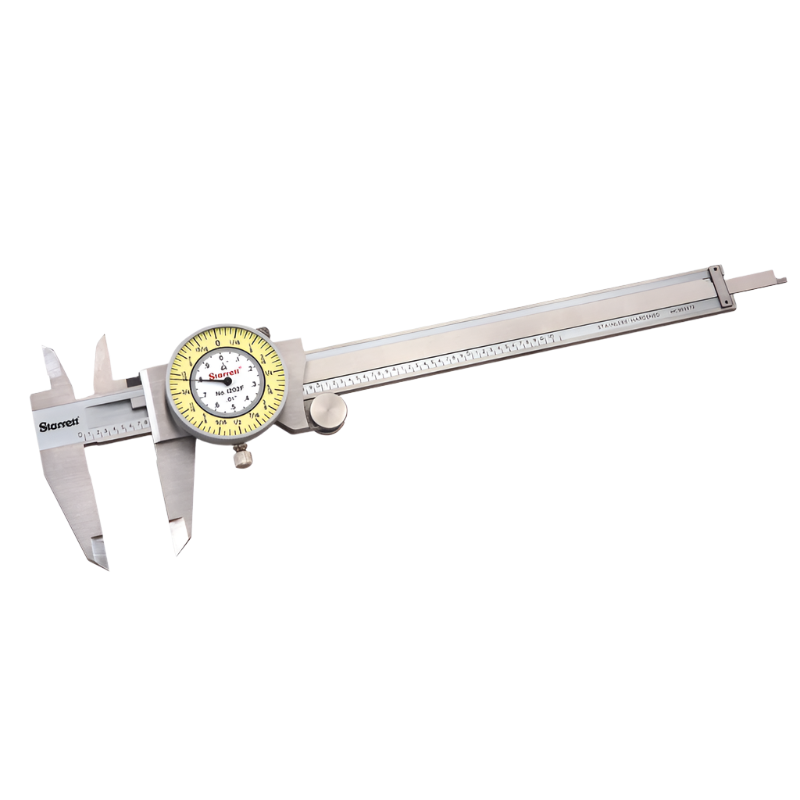

0-6" Starrett 1202F-6 Fractional Dial Caliper

0-6" Starrett 1202F-6 Fractional Dial Caliper

ITM22000730

Starrett Fractional Dial Slide Caliper, Stainless Steel, 0-6" Range, .010", 1/64 Graduations

$163.00 USD
$163.00 USD
Sale Sold out
View full details

Product Details

Features

  • Provides quick, accurate measurement of O.D., I.D. and depth
  • 1/64" graduations on the yellow outer scale, and .01" on the white inner scale
  • Shows measurements as fractions
  • Lock screws for sliding jaw and dial bezel
  • Adjustable bezel
  • Thumb-operated fine adjustment roll
  • Covered rack depth rod
  • Hardened stainless steel bar, measuring surfaces, rack, gears and depth rod
  • Knife-edge contacts
  • Positive, spring-loaded double pinion anti-backlash control
  • Positive, spring-loaded double pinion anti-backlash control
  • 1/64" graduations on the yellow outer scale, and .01" on the white inner scale

Specifications

  • Product Series: 1202F
  • Outside Jaw Depth (in): 1-1/2"
  • Outside Jaw Depth (mm): 38mm
  • Range (in): 0-6"
  • Revolution Range (in): 1"
  • Accuracy (in): +/-.002"
  • Case Type: Plastic
  • Construction Material: Stainless Steel
  • Dial Color: White
  • Bar Graduations: .100"
  • Max. Range (in): 6
  • Min. Range (in): 0
  • Graduations (in): .010"
  • Inside Jaw Depth (in): 5/8"
  • Inside Jaw Depth (mm): 16mm
