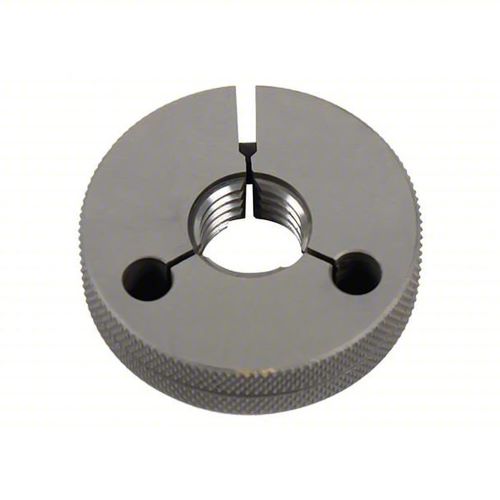

1 1/8-7 UNC 2A Vermont Gage Go/NoGo Threaded Ring Gage

1 1/8-7 UNC 2A Vermont Gage Go/NoGo Threaded Ring Gage

SKU:ITM24070953

Vermont Gage 361169050 Threaded Ring Gage, Go/NoGo Double Sided, Class X, ASME B47.1; ISO 17025

Regular price $534.00 USD
Regular price Sale price $534.00 USD
Sale Sold out
View full details

Product Details

Features

  • Manufactured to inspect the Pitch Diameter and the Functional Threads
  • Thread gages are used to ensure the assembly of mating parts
  • Unified Inch standard gages are manufactured per ASME B1.2. M Series Metric thread gages are manufactured per ASME B1.16M. Standard thread gages are made to a Class X tolerance
  • Plug gage assemblies are marked with the thread size, class of fit and pitch diameters. Pipe Gages per ASME B1.20.1,  ASME B1.20.5 and Hole Location gages stocked. ACME, Buttress, STI and gages for other custom thread forms are also available

Specifications

  • Dimension Type: Inch
  • Gage Type: Go-Minus, No/Go Plus
  • Thread Class: 2A
  • Thread Size: 1 1/8"-7
  • Thread Type: UNC
  • Handle Included: N/A
  • Tolerance Class: X
  • Manufacturing Standards: ASME B47.1; ISO 17025
  • Go Member Pitch Diameter: 1.03"
  • NoGo Member Pitch Diameter: 1.0228"
