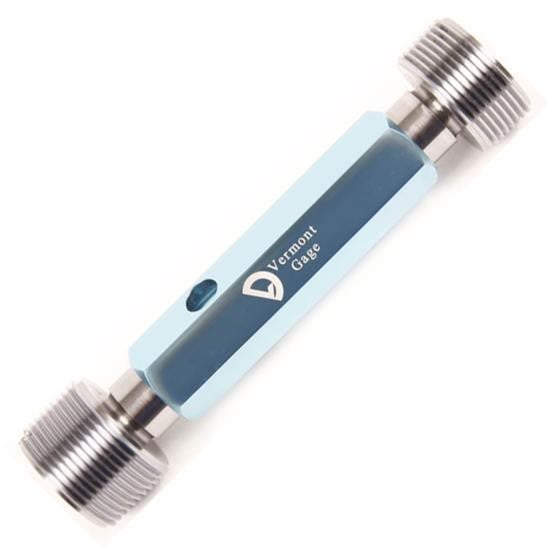

1 3/4-12 UN 3B Vermont Gage Go/NoGo Threaded Plug Assembly

1 3/4-12 UN 3B Vermont Gage Go/NoGo Threaded Plug Assembly

ITM23070170

Vermont Gage 301191050 Go/NoGo Double End Class X Threaded Plug Gage Right Hand Thread Direction, ASME B1.2 Standards

$450.00 USD
$450.00 USD
Sale Sold out
View full details

Product Details

Features

  • Manufactured to inspect the Pitch Diameter and the Functional Threads
  • Thread gages are used to ensure the assembly of mating parts
  • Unified Inch standard gages are manufactured per ASME B1.2. M Series Metric thread gages are manufactured per ASME B1.16M. Standard thread gages are made to a Class X tolerance
  • Plug gage assemblies are marked with the thread size, class of fit and pitch diameters. Pipe Gages per ASME B1.20.1,  ASME B1.20.5 and Hole Location gages stocked. ACME, Buttress, STI and gages for other custom thread forms are also available

Specifications

  • Dimension Type: Inch
  • Gage Type: Go/NoGo Plus/Minus
  • Thread Class: 3B
  • Thread Size: 1 3/4-12"
  • Thread Type: UN
  • Handle Included: Yes
  • Tolerance Class: X
  • Manufacturing Standards: ASME B1.2
  • Go Member Pitch Diameter: 1.6959"
  • NoGo Member Pitch Diameter: 1.7017"
