Ametek Crystal Pressure

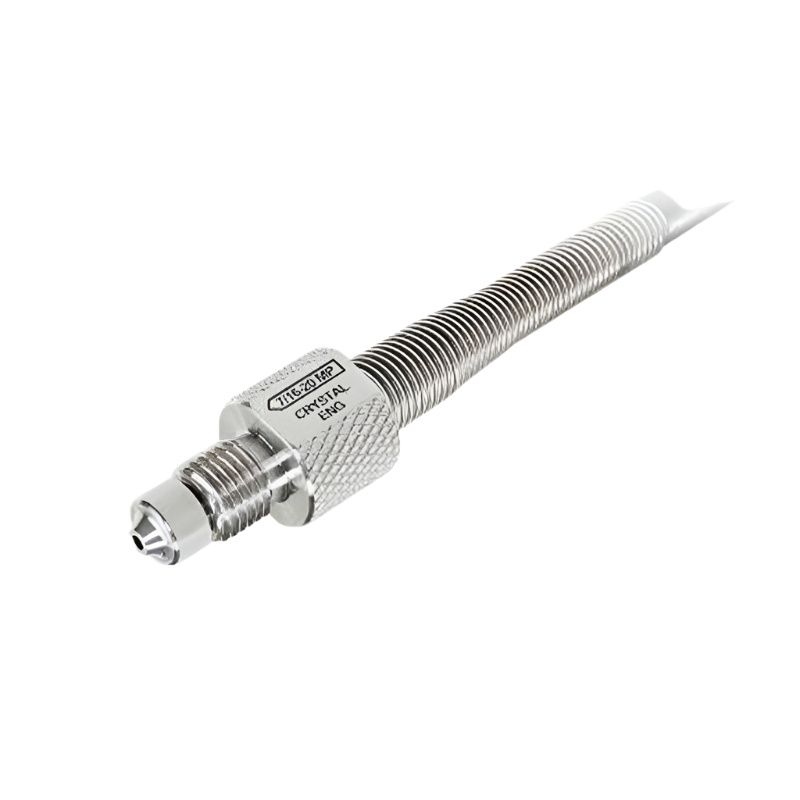

10,000 PSI Crystal High Pressure Hose

10,000 PSI Crystal High Pressure Hose

ITM22011293

Ametek Crystal MPH-1.5 1.5 Meter CPF Hose

$496.00 USD
$496.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

Features

  • CPF is an improved cone type fitting system that adds a unique o-ring sealing system which permits leak free connections without tools
  • CPF fittings can be directly connected to 1/4" medium pressure cone type fittings from other manufacturers, provided that wrenches are used to complete the connection
  • The fittings of the CPF system have been designed and tested to comply with ASME B31.3-2008, Chapter IX: High Pressure Piping

Specifications

  • Wrench Sizes: 5/8 & 16
  • Hose Sizes: 1.5 & 5
  • Working Pressure: 10000 PSI
  • Maximum Allowable Working Pressure: 10,000 PSI/700 bar/70MPa
