REOTEMP

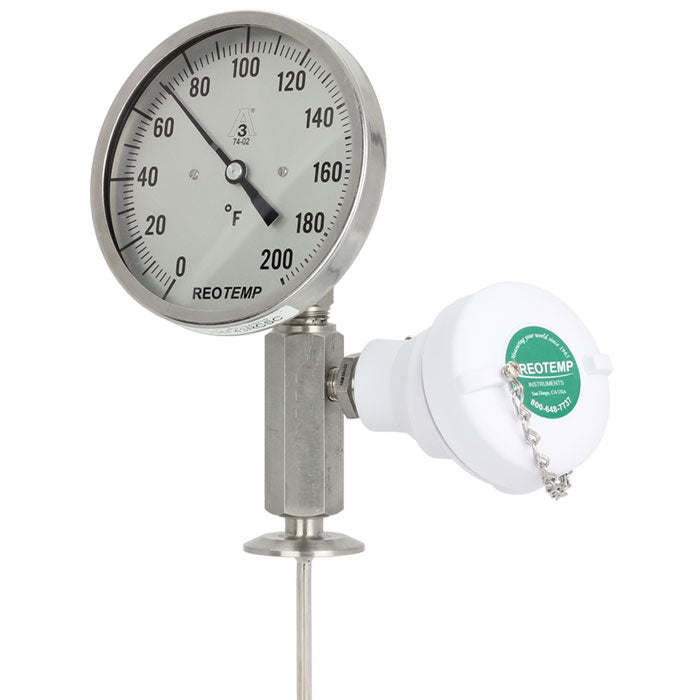

20-240 Deg F 3" Back Connection Reotemp Mil-Spec Dual Mode Bimet Thermometer/RTD

20-240 Deg F 3" Back Connection Reotemp Mil-Spec Dual Mode Bimet Thermometer/RTD

ITM22009595

Reotemp Dual Mode Bimet Thermometer/RTD 20/240F 2" Stem bottomm 3/4"-28 Conn Pt100 RTD MIL-I-17244E

View full details

Product Details

Features

  • The Mil-Spec. Dual Mode Thermometer combines a bimetal thermometer and RTD Sensor into the same stem
  • Heavy duty, all welded construction built to withstand tough shock and vibration environmentsand is qualified by the Navy to mil-spec shock and vibration requirements MIL-S-901D and MIL-STD-167-1A
  • Combines a bimetal element for local indication and a 3 wire 100 ohm platinum RTD for remote indication
  • Designed for use on Navy Ships and other demanding commercial applications

Specifications

  • Product Series: RTDX-DMS
  • Style: Mil-Spec approved, Shockproof, 3/8" stem, 3/4"-28 std thread, fixed swivel union with Navy collar
  • Dial Size and Connection Location: 3" Bottom
  • Stem Length: 2"
  • Temperature Range: 20-240 Deg F
  • Sensor Type: RTD, Pt 100/385 High Vibration
  • Output Connection: Mil-Spec 3 pin connector
