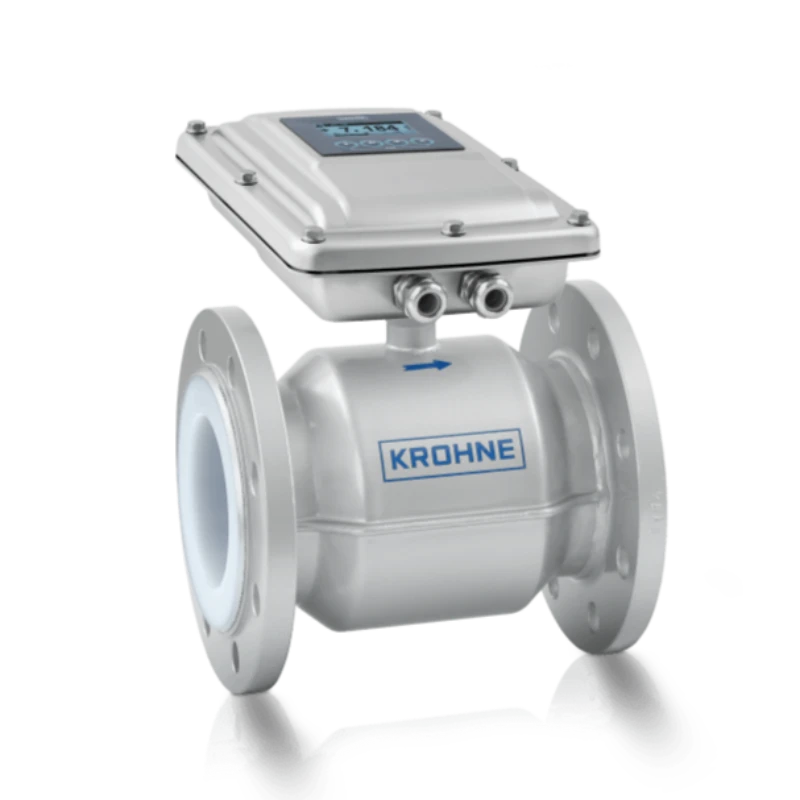

Krohne Optiflux 4100 Abrasive Liquid Electromagnetic Flow Meter

Krohne Optiflux 4100 Abrasive Liquid Electromagnetic Flow Meter

ITM24070525

Krohne Electromagnetic flow meter, 4-20 mA, pulse, frequency, status, HART® Communications, Up to +180°C / +356°F

View full details

Product Details

Features

***Features depend on selected device configuration

  • Electromagnetic flow meter for standard applications with abrasive and aggressive liquids
  • Bi-directional flow measurement over a wide dynamic range (turndown ratio: 1000:1)
  • PTFE, PFA, ETFE, hard rubber, soft rubber or PU liner: excellent chemical and abrasion resistance
  • Wide range of electrode materials
  • Special designs, sizes, inner diameters and liner thicknesses on request
  • Optional external coatings for offshore or subsoil installation (also acc. to ISO 12944)
  • Diagnostics incl. conductivity, electrode error, ambient and process temperature etc.
  • Full bore design: No moving parts, no wear, no pressure loss
  • For hazardous areas: ATEX, IECEx, FM, CSA
  • On-site verification of flowmeter with OPTICHECK service tool

Specifications

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

  • Operating Conditions: Process Pressure: max. 40 barg/580 psig, Process Temperature: -40…+180°C/-40…+356°F
  • Process Connections: Multiple
  • Multiple Approvals/Standards
  • Communication: 4-20 mA Analog output, Pulse Frequency Status discrete outputs, HART® digital output
