NOSHOK

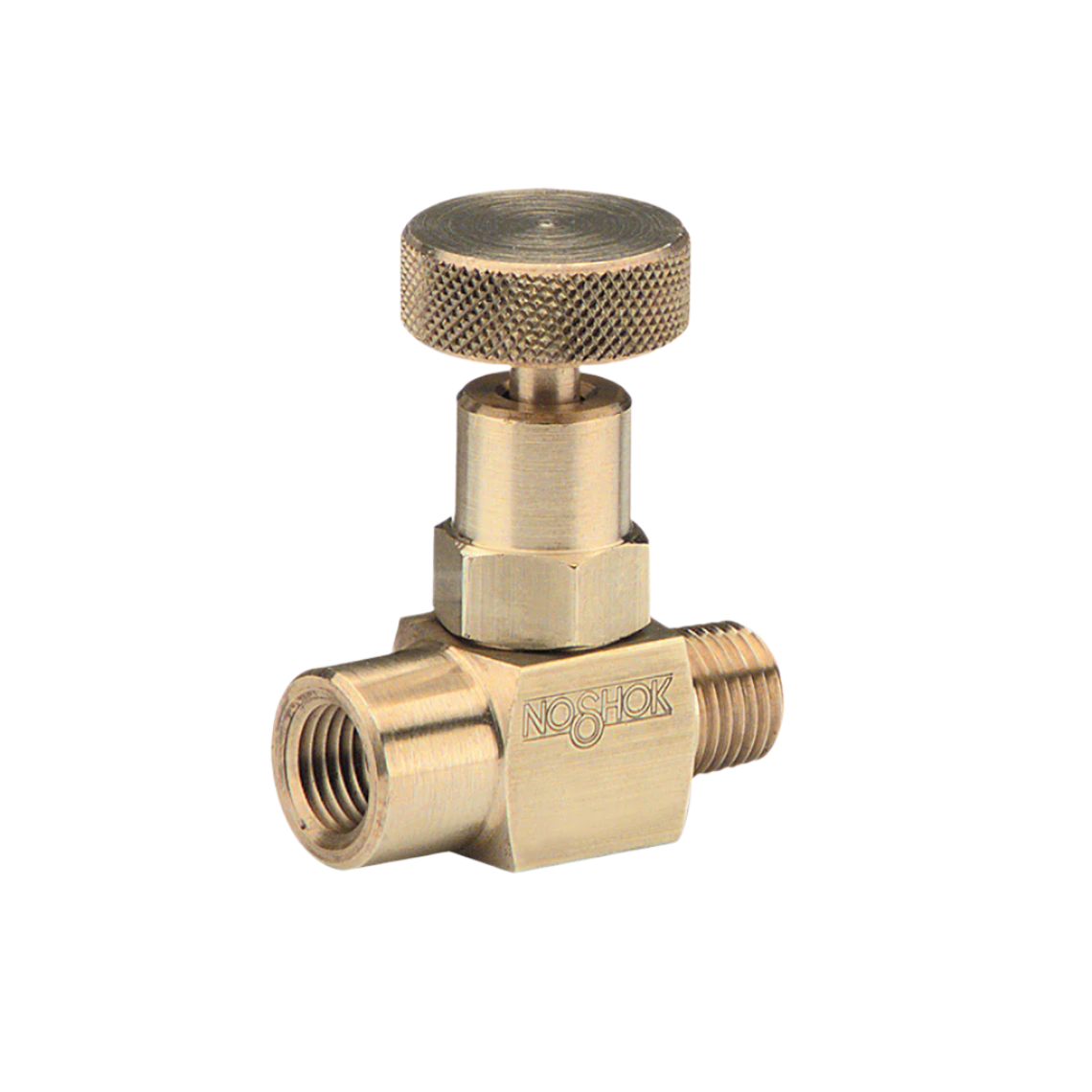

Brass MFB Noshok Hard Seat Needle Valve

Brass MFB Noshok Hard Seat Needle Valve

ITM22051170

Noshok 1/4" National Pipe Thread (NPT), Male x Female, Brass, 0.172" Orifice Hard Seat Mini Valve

$51.06 USD
$51.06 USD
Sale Sold out
View full details

Product Details

Features

  • Compact size valve built for maximum durability and robust performance in the toughest applications
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional

Specifications

  • Product Series: 100 Series Mini Needle Valves with Hard Seat
  • Connection Size & Valve Type: 1/4" NPT, Male-Female
  • Material: 360 Brass
  • Stem Seal and Type: All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads
  • Pressure Ratings at 200 Degree Fahrenheit Temperature: 6,000 psi
  • Orifice Size: 0.172"
  • Weight (lb): 0.5
