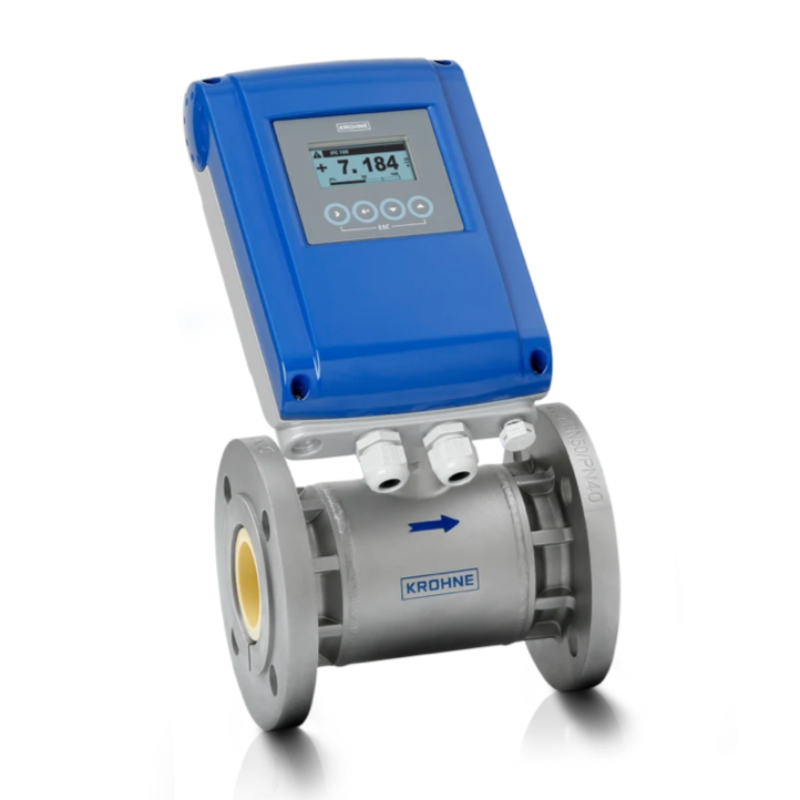

Krohne Optiflux 5100 Chemical Processing Electromagnetic Flow Meter

***Features depend on selected device configuration

• Electromagnetic flow meter for demanding applications with aggressive and abrasive media
• Bi-directional flow measurement over a wide dynamic range (turn down ratio: 1000:1)
• Withstands highly aggressive and abrasive fluids
• Fully vacuum-resistant with high-tech ceramic sensor material
• Fused in-place Cermet or platinum electrodes
• First EMF with ceramic measuring tube to comply with the Pressure Equipment Directive
• High resistance to corrosion and temperature shocks
• Diagnostics incl. conductivity, electrode error, ambient and process temperature etc.
• Available as flange or sandwich (wafer) version
• No moving parts, no wear, no pressure loss
• On-site verification of flow meter with OPTICHECK service tool

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

• Operating Conditions: Process Pressure: max. 40 barg/580 psig, Process Temperature: -40 to +180°C/-40 to +356°F
• Process Connections: Multiple
• Multiple Approvals/Standards
• Communication: 4-20 mA Analog Output, Pulse Frequency Status discrete outputs, HART® digital output
