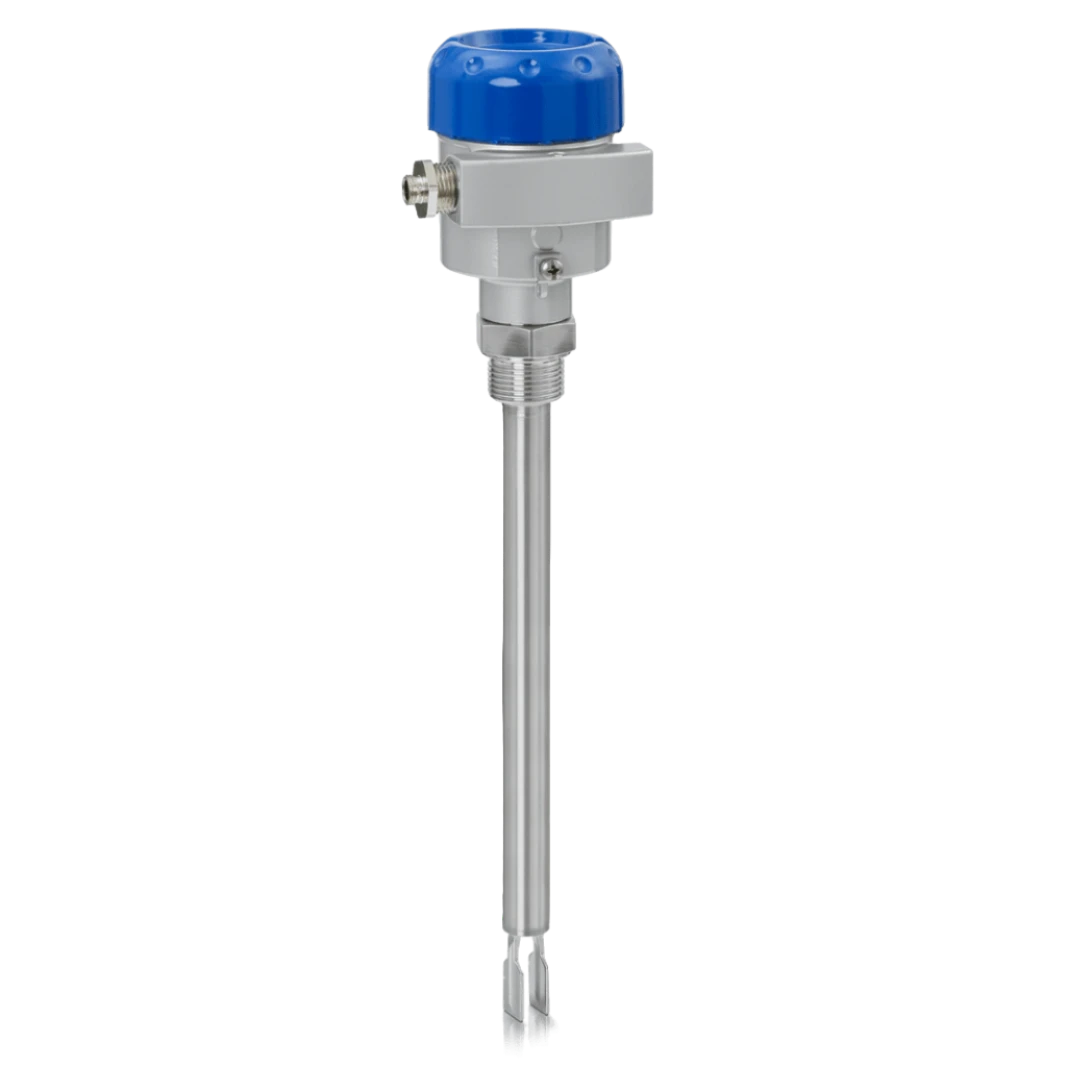

Extended Point Level Krohne Optiswitch 5200 Vibration Level Switch

Extended Point Level Krohne Optiswitch 5200 Vibration Level Switch

ITM24070514

***Features depend on selected device configuration

  • Vibration level switch with rigid extension for process applications
  • Point level detection of liquids
  • Large choice of process fittings and housing materials
  • Process connection option for high temperatures up to +250°C / +482°F
  • Optional gas-tight lead-through for toxic gases
  • Suited for hazardous and non-hazardous areas
  • SIL2-compliant



View full details

Product Details

Features

***Features depend on selected device configuration

  • Vibration level switch with rigid extension for process applications
  • Point level detection of liquids
  • Large choice of process fittings and housing materials
  • Process connection option for high temperatures up to +250°C / +482°F
  • Optional gas-tight lead-through for toxic gases
  • Suited for hazardous and non-hazardous areas
  • SIL2-compliant

Specifications

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

  • Operating Conditions: Process Pressure: -1 to 64 barg/14.5 to 925 psig, Process Temperature: -50 to +250°C/58 to +482°F
  • Probe Length: 80 to 6000 mm/3 to 236 in
  • Process Connections: EN (1092-1): DN25 to 150, ASME (B 16.5): 1 to 6" Flange, Male:G¾, G1, ¾ NPT, 1 NPT, 1 ½ NPT, 2 NPT Thread Connections
  • Multiple Approvals/Standards
  • Communication: 2-wire (8/16 mA), Contactless, NAMUR, Relay, Transistor discrete outputs
