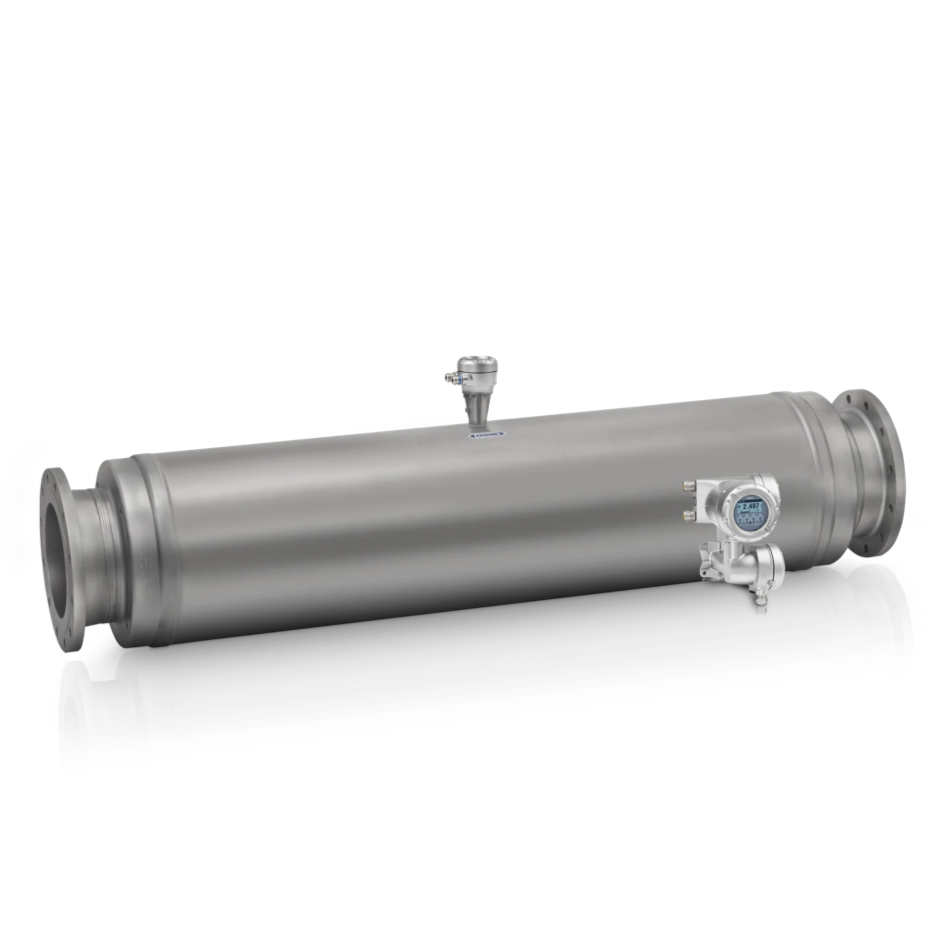

Krohne Optimass 2400 High Capacity Marine Coriolis Mass Flow Meter

***Features depend on selected device configuration

• Coriolis mass flow meter for bunkering applications in the marine industry
• Twin or four straight tube design
• Measurement of mass and volume flow, density and temperature of high capacity flow rates in bunkering operations
• Device commissioning, verification, diagnostics and monitoring via a secure wireless Bluetooth® connection (<20 m / 65.6 ft)
• Fast and completely digital signal processing
• High accuracy mass, density and volume flow measurement (±0.1% of MV / optional ±0.05% of MV)
• Highest OIML accuracy class of 0.3 for custody transfer (CT)
• Extensive sensor and process diagnostics (incl. NE 107)
• With integral pressure compensation for flow and density measurement
• Integrated temperature measurement
• Optimized flow splitter for low pressure loss
• Duplex steel or Super Duplex steel sensor material
• Optional PED approved secondary pressure containment up to 150 barg / 2175 psig
• Optional heat tracing (insulation, heating jacket) or purge ports
• No crosstalk: resistant to installation and process effects

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

• Operating Conditions: Process Pressure: max. 180 barg/2600 psig, Process Temperature: -45 to +130°C/-49 to +266°F
• Process Connections: Multiple
• Multiple Approvals/Standards
• Communication: 4-20 mA Analog output, Limit switches, Pulse, Frequency, Status discrete outputs, FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, EtherNet/IP™, PROFINET, Bluetooth digital outputs
