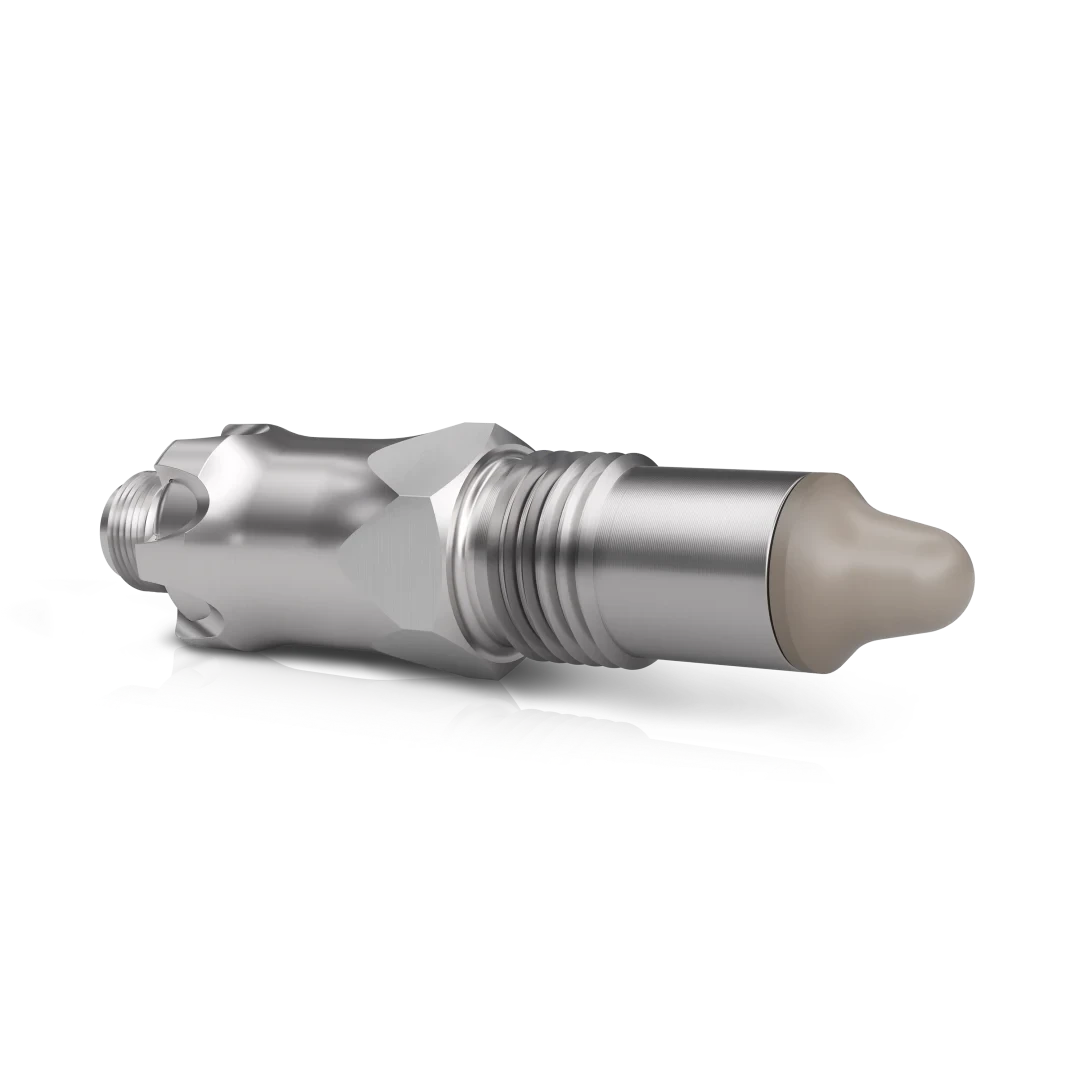

Hygienic & General Industrial Krohne Optiswitch 6700 Capacitance Level Switch

***Features depend on selected device configuration

• Capacitance level switch for hygienic and industrial applications
• Level switch with IO-Link communication for automated sensor configuration
• Two switching outputs for different trigger thresholds allow monitoring of different processes or measured media
• Stainless steel housing with PEEK sensor material
• Optimal sensor shape: Easy-to-clean, minimised risk of clogging by sticky products
• Maintenance-free, can be installed in any mounting position
• Wide variety of hygienic adapters available
• Also available with a sliding connection for tanks with thick wall thickness / insulation or to overcome high process temperature
• Sensor version with reverse-threaded G¾ connection allows for mounting in a pipe extension tube for low level detection from the top
• Adaptive trigger for quick-set-up and commissioning

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

• Operating Conditions: Process Pressure: -1-100 bar/, -14.5-1450 psi, Variant with G½ hygienic: max. 10 bar / 145 psi, Variant with sliding connection: max. 5 bar / 72,5 psi - Process Temperature: -40 to +115°C/-40 to +239°F Variant with sliding connection: up to +150°C / +302°F
• Materials: Gaskets - Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM), Nitrile butadiene rubber (NBR), Silicone, Wetted Parts: Polyetheretherketone (PEEK)
