KROHNE

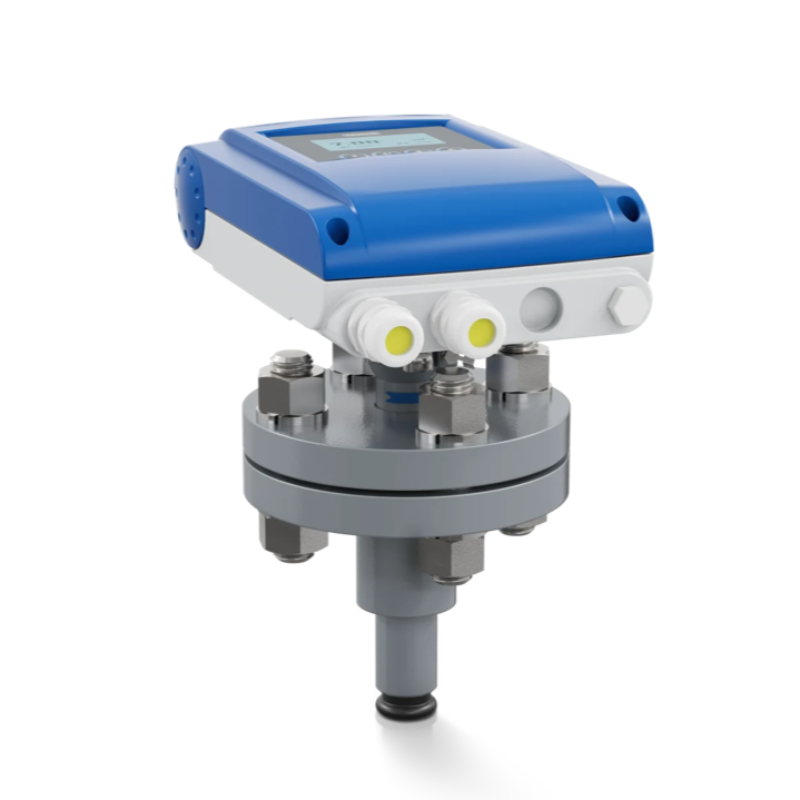

Insertion-Type Krohne Optiprobe Electromagnetic Flowmeter

Insertion-Type Krohne Optiprobe Electromagnetic Flowmeter

ITM24070505

Krohne Optiprobe electromagnetic insertion-type flowmeter, 4…20 mA Analog Output, flow monitoring of conductive clean liquids in water & wastewater applications, Adjustable insertion lenght up to 400mm

View full details

Product Details

Features

***Features depend on selected device configuration

  • Electromagnetic insertion-type flowmeter for water and wastewater applications
  • With fixed or flexible installation length for hot tapping
  • Wide (bi-directional) measuring range
  • All wetted parts made of non-corrosive materials
  • Optimised for retrofitting in all existing pipework
  • Easier to install into large diameters as compared to inline flowmeters
  • Many diagnostic functions and multilanguage settings

Specifications

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

  • Operating Conditions: Process Pressure is max. 16 barg/230 psig, Process Temperature is 0 to +100°C/+32 to +212°F
  • Process Connections: Flange connections are EN (1092-1): DN40 for pipes ≥DN80 / 3"
  • Approvals/Standards: Ingress Protection - IP66/67, IP68, NEMA4X/6, NEMA4X/6P
  • Certificates/Approvals - ATEX, NEPSI
  • Certificates/Approvals Marine - ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
  • Communication: Analog Outputs - 4-20 mA
  • Discrete Outputs - Pulse, Frequency, Status
  • Digital Outputs - FOUNDATION™ fieldbus, HART®, Profibus-PA, Modbus RTU, PROFINET
