KROHNE

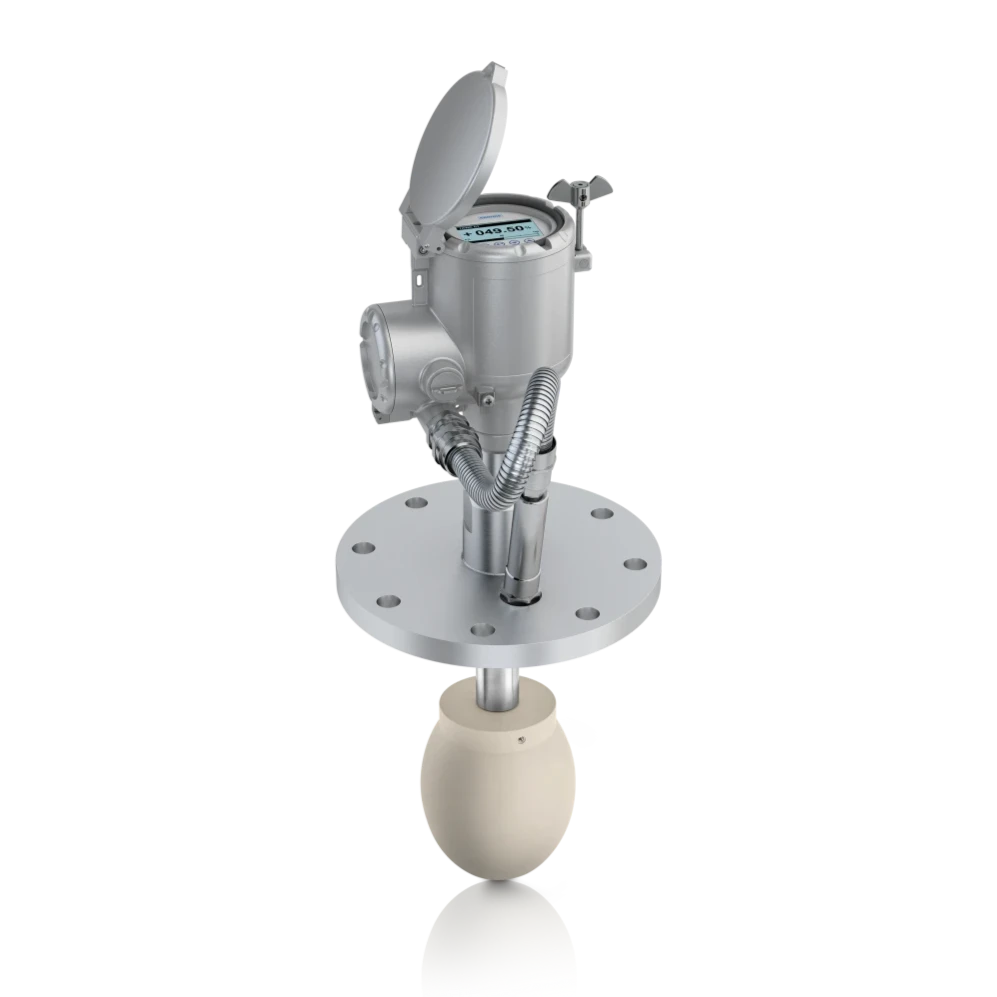

Non-Contact Cargo Level Krohne Optiwave-M 7400 Radar Level Transmitter

Non-Contact Cargo Level Krohne Optiwave-M 7400 Radar Level Transmitter

ITM24070518

Krohne Radar (FMCW) level transmitter for agitated and corrosive liquids, 24 GHz radar, Horn or Drop antennas, Analog Output 4-20mA, Digital Outputs FOUNDATION™ fieldbus, HART®, Profibus-PA

View full details

Product Details

Features

***Features depend on selected device configuration

  • Radar (FMCW) level transmitter for liquids and solids in the marine industry
  • Cargo radar level gauge designed to operate in the roughest marine conditions
  • With rugged stainless steel (1.4404 / 316L) housing and display protection
  • Redundant display: ullage/level will always be shown locally
  • Inert gas pressure sensor (IGP) integral part of radar flange
  • Antennas: Horn antenna (DN100 / 4"): Stainless steel (1.4404 / 316L) or higher Molybdenum (on request), Drop antenna (DN80 /3" or DN100 /4"): PP or PTFE
  • Horn antenna option comes with built-in antenna purging system for cleaning without opening the tank
  • Replacement of the signal converter can be done at any time, even during cargo operations without opening the tank
  • Optimized for use with the CARGOMASTER solution for liquid cargo monitoring and alarm

Specifications

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

  • Measuring Range (liquids): 0…40 m /0 to 132 ft, Measuring Range (Solids): 0 to 40 m /0 to 132 ft
  • Process Connections: EN (1092-1): DN125 flange
  • Multiple Approvals/Standards
  • Communication: 4-20 mA Analog output, HART® Digital output
