KROHNE

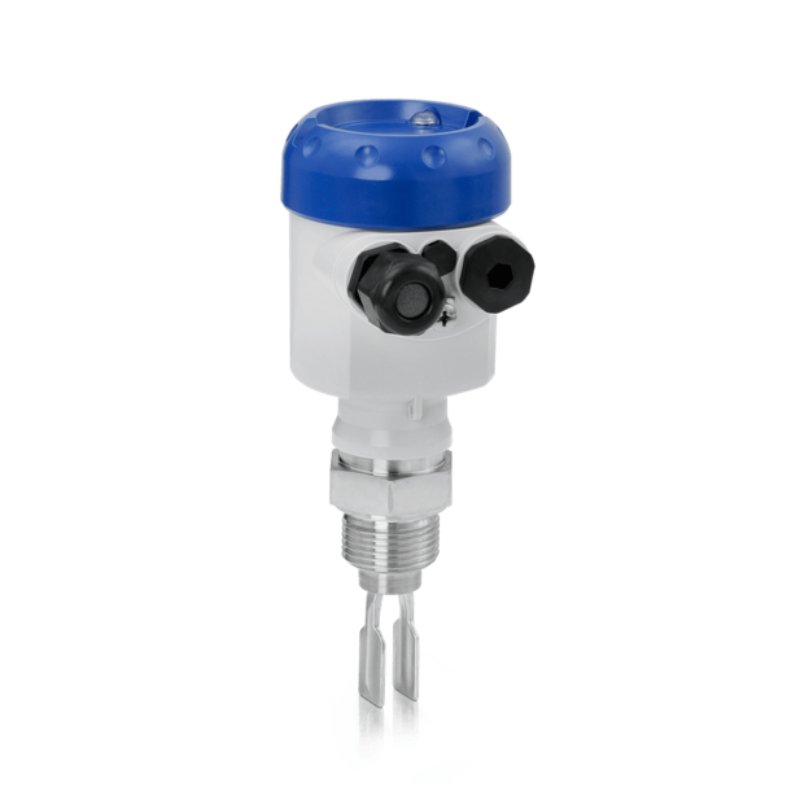

Point Level Krohne Optiswitch 5100 Vibration Level Switch
Point Level Krohne Optiswitch 5100 Vibration Level Switch
SKU:ITM24070516
Krohne Vibration Level Switch for Point level detection of liquids, Probe Length 80-6000 mm/3-236 in, 2-wire (8/16 mA), Contactless, NAMUR, Relay, Transistor discrete outputs
Share
Product Details
Features
***Features depend on selected device configuration
- Vibration level switch for process applications
- Point level detection of liquids
- Large choice of process fittings, housings and electronics
- Optional adapter for high temperatures up to +250°C / +482°F
- Outputs: relay, transistor, 2-wire, NAMUR or contactless electronic switch
- Optional gas-tight lead-through for toxic gases
- Suited for hazardous and non-hazardous areas
- SIL2-compliant
Specifications
***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- Operating Conditions: Process Pressure: -1 to 64 barg/-14.5 to 925 psig, Process temperature: -50 to +250°C/-58 to +482°F
- Probe Length: 80…6000 mm/3 to 236 in
- Operating Conditions: Process Pressure: -1 to 64 barg/-14.5 to 925 psig, Process Temperature: -50 to +250°C/58 to +482°F
- Process Connections: EN (1092-1): DN25…150, ASME (B 16.5): 1 to 6" Flange, Male: G¾, G1, ¾ NPT, 1 NPT, 1 ½ NPT, 2 NPT Thread connections
- Multiple Approvals/Standards
- Communication: 2-wire (8/16 mA), Contactless, NAMUR, Relay, Transistor discrete outputs
