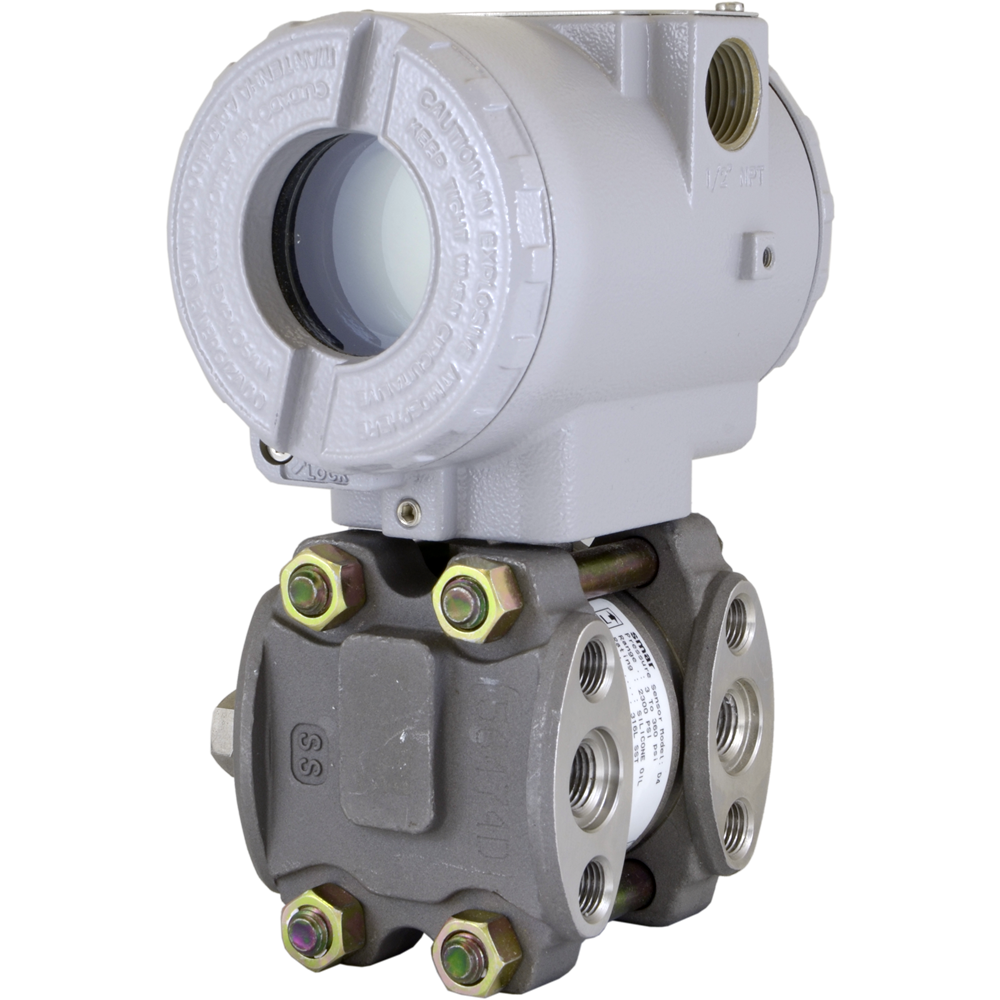

SMAR LD301 (ZN) -14.5 to 360 PSI Gage Pressure Transmitter w/ Digital Indicator

​The LD300 Pressure Transmitter Series present a robust solution for measuring pressure in demanding situations.  This pressure transmitter is based on a field-proven sensor using capacitive technology to measure pressure.  This product is highly configurable and can be configured to your application needs.

±0.15% of URL Stability - Guarantee for 12 Years

± 0.04% High Accuracy

Bi-directional Flow Measurement

Advanced Diagnostics

Largest Library of Function

120:1 Rangeability

Tank Linearization

100 ms Total Response Time

PID Control Capability

Instantiable Function Blocks

Supported by DD, EDDL and FDT/DTM

Three Technology Options

​Need assistance configuring this product?  Contact us!

Product Series: LD300 - Navy Grade & Certified

Diaphragm Material: 316L Stainless Steel

Fill Fluid: Silicone Oil

Flange(s), Adapter(s) and Drain/Vent Valves Material: 316 SST - CF8M (ASTM A351)

Process Connection: 1/4 - 18 NPT (Without Adapter)

Wetted O'Ring Material(s): Teflon

Process Connection: 1/4" NPT

Drain/Vent Position: Top

Digital Indicator Included: Yes

**Image may not reflect some configurated models, see Manufacturer's Documentation for Full Product Specifications
