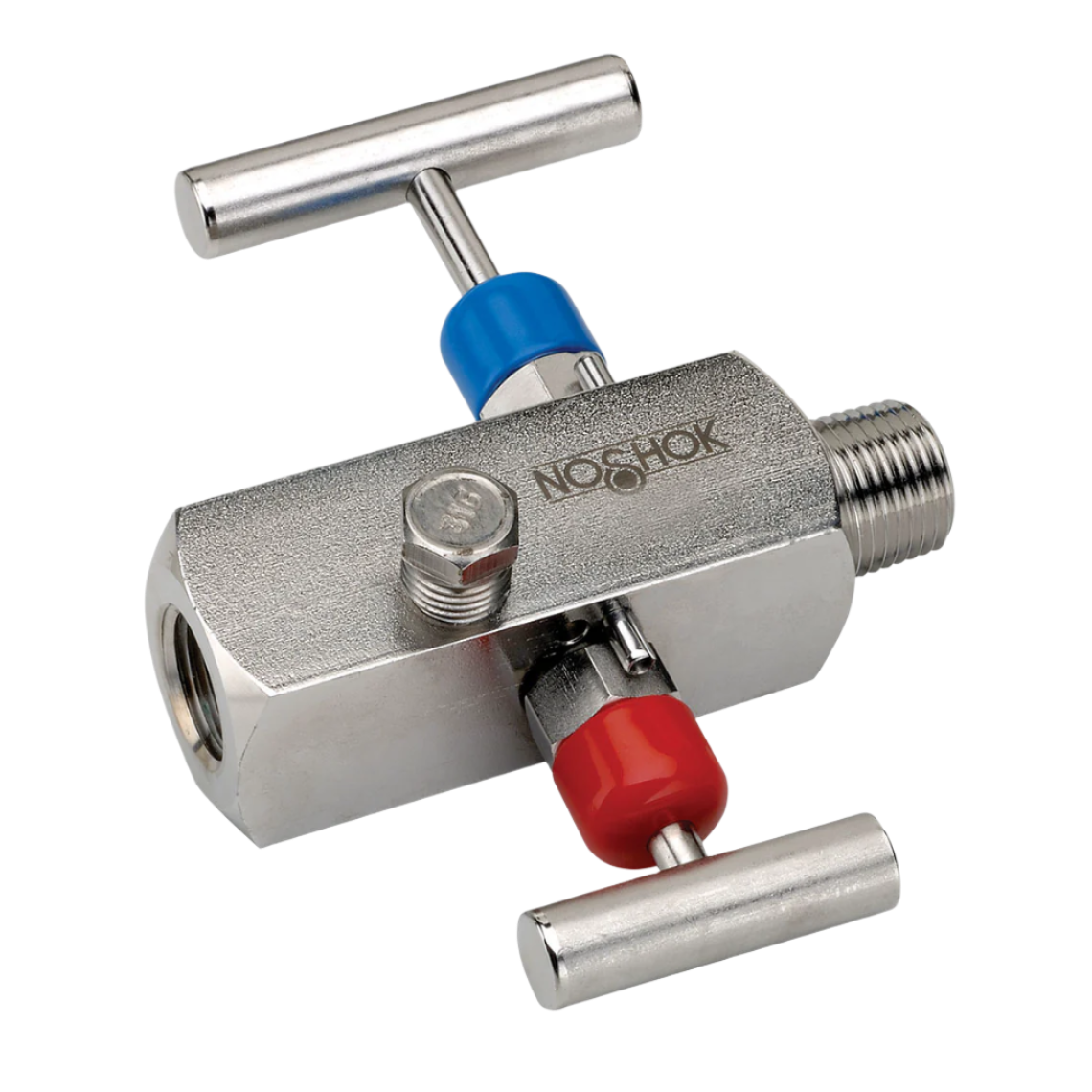

Stainless Steel MFS Noshok Soft Seat Block & Bleed Valve
Stainless Steel MFS Noshok Soft Seat Block & Bleed Valve
SKU:ITM22052529
Noshok 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat/Tip, 0.187" Orifice Block and Bleed 2-Valve
Regular price
$372.17 USD
Regular price
Sale price
$372.17 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Details
Features
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation
- The 1/4" NPT vent plug is located 90º to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location
Specifications
- Product Series: 2170 Block and Bleed 2-Valve
- Connection Size & Valve Type: 1/2" NPT, Male-Female
- Material: Electropolished Stainless Steel, Stem Material: All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads
- Pressure Ratings at 200 Degree Fahrenheit Temperature: 6,000 psi
- Orifice Size: 0.187"
- Weight (lb): 0.5
