KROHNE

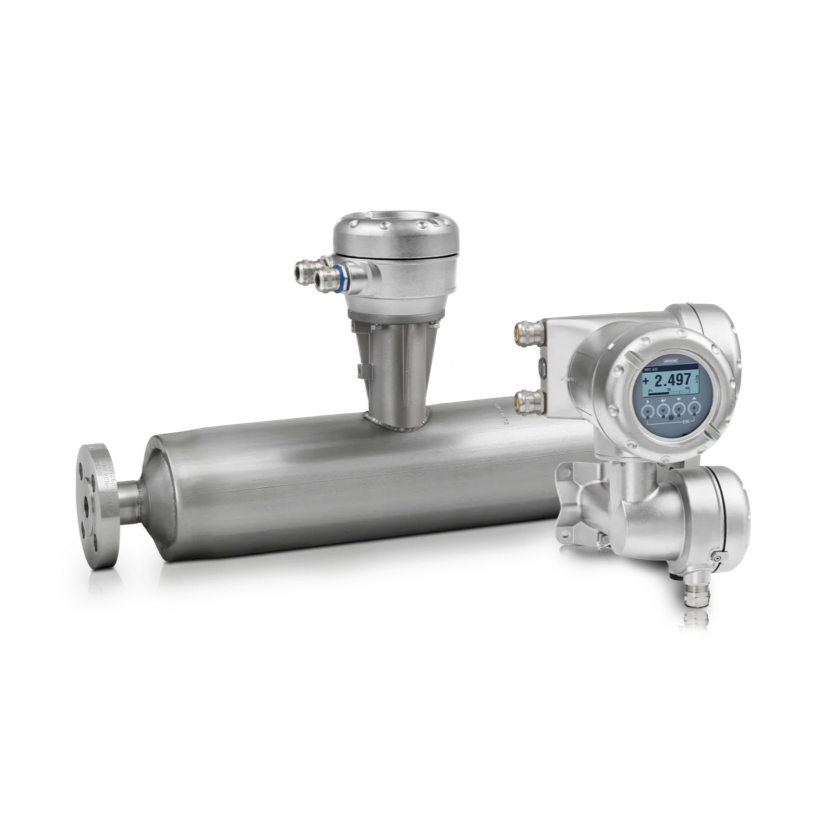

Krohne Optimass 1400 Straight Tube Marine Coriolis Mass Flow Meter

Krohne Optimass 1400 Straight Tube Marine Coriolis Mass Flow Meter

SKU:ITM24070535

Krohne Marine Version Flow meter, for general ship fuel applications, 4-20 mA analog output, Limit switches Pulse Frequency Status discrete outputs, Multiple Digital outputs

View full details

Product Details

Features

***Features depend on selected device configuration

  • Coriolis mass flow meter for general ship fuel applications in the marine industry
  • Measurement of mass and volume flow, density and temperature for fuel consumption monitoring of MGO, MDO and other liquids
  • Twin straight tube design
  • Entrained Gas Management (EGMTM): meter maintains operation with air or gas entrainments in the medium
  • Device commissioning, verification, diagnostics and monitoring via a secure wireless Bluetooth® connection (<20 m / 65.6 ft)
  • Fast and completely digital signal processing
  • Best-in-class price/performance ratio
  • High accuracy mass, density and volume flow measurement (±0.15% of MV)
  • Extensive sensor and process diagnostics (incl. NE 107)
  • Integrated temperature measurement
  • Optimized flow splitter for low pressure loss
  • Optional PED approved secondary pressure containment up to 100 barg / 1450 psig
  • Optional insulation, heating jacket or purge ports
  • No crosstalk: resistant to installation and process effects
  • On-site verification of flow meter with OPTICHECK service tool

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

  • Operating Conditions: Process Pressure: max. 100 barg/1450 psig, Process Temperature: -40 to +130°C/-40 to +266°F
  • Process Connections: Multiple
  • Multiple Approvals/Standards
  • Communication: 4-20 mA Analog output, Limit switches, Pulse, Frequency, Status discrete outputs, FOUNDATION™ fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, EtherNet/IP™, PROFINET, Bluetooth digital outputs
