Tatsuta

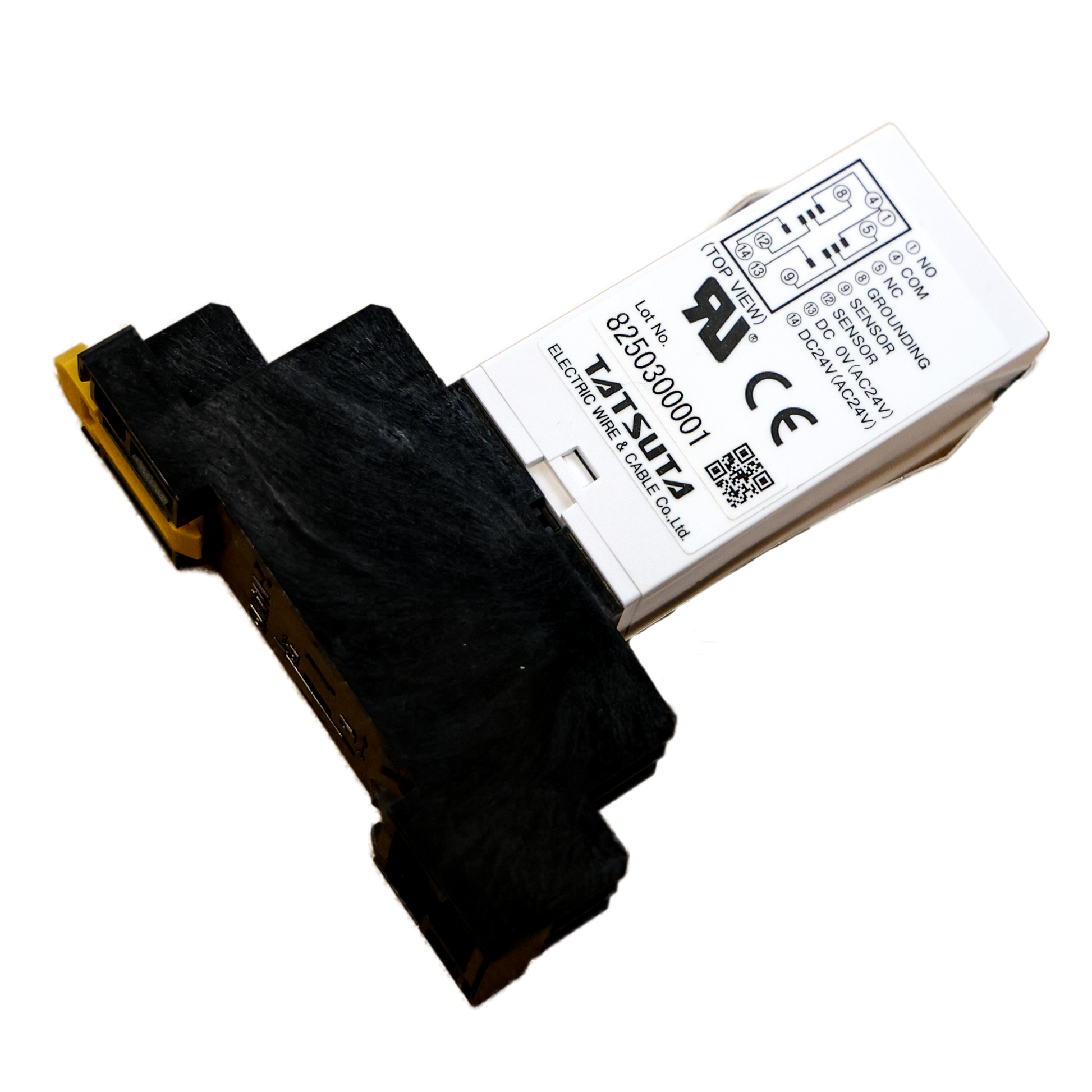

Tatsuta | Leak Point Detector | AD-AS-1DM

Tatsuta | Leak Point Detector | AD-AS-1DM

AD-AS-1DM for single-circuit systems. This detector with an AC/DC power supply is attached to the DIN rail inside the panel.

$216.00 USD
$216.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

Features

  • Number of sensor circuits: 1
  • Power Supply Voltage: AC24V, DC24V
  • Frequency: 50/60Hz
  • Sensor-applied voltage: 5.3VAC maximum
  • Leakage warning: Blinking orange LED lamp
  • Wire Break Warning: Blinking orange LED lamp
  • Control output contact rated load (resistance load): AC125V 0.4A、DC30V 2.0A
  • Current Consumption: 3VA maximum
  • Sensitivity Adjustment: Yes
  • Check Function: Yes
  • Outer Dimensions (mm): W22×H76×D87
  • Weight (kg): Approx. 0.08
  • Box Color: Gray

Specifications

24VDC or 24VAC, din-rail mount
Max sensor length is 100m
