Tatsuta

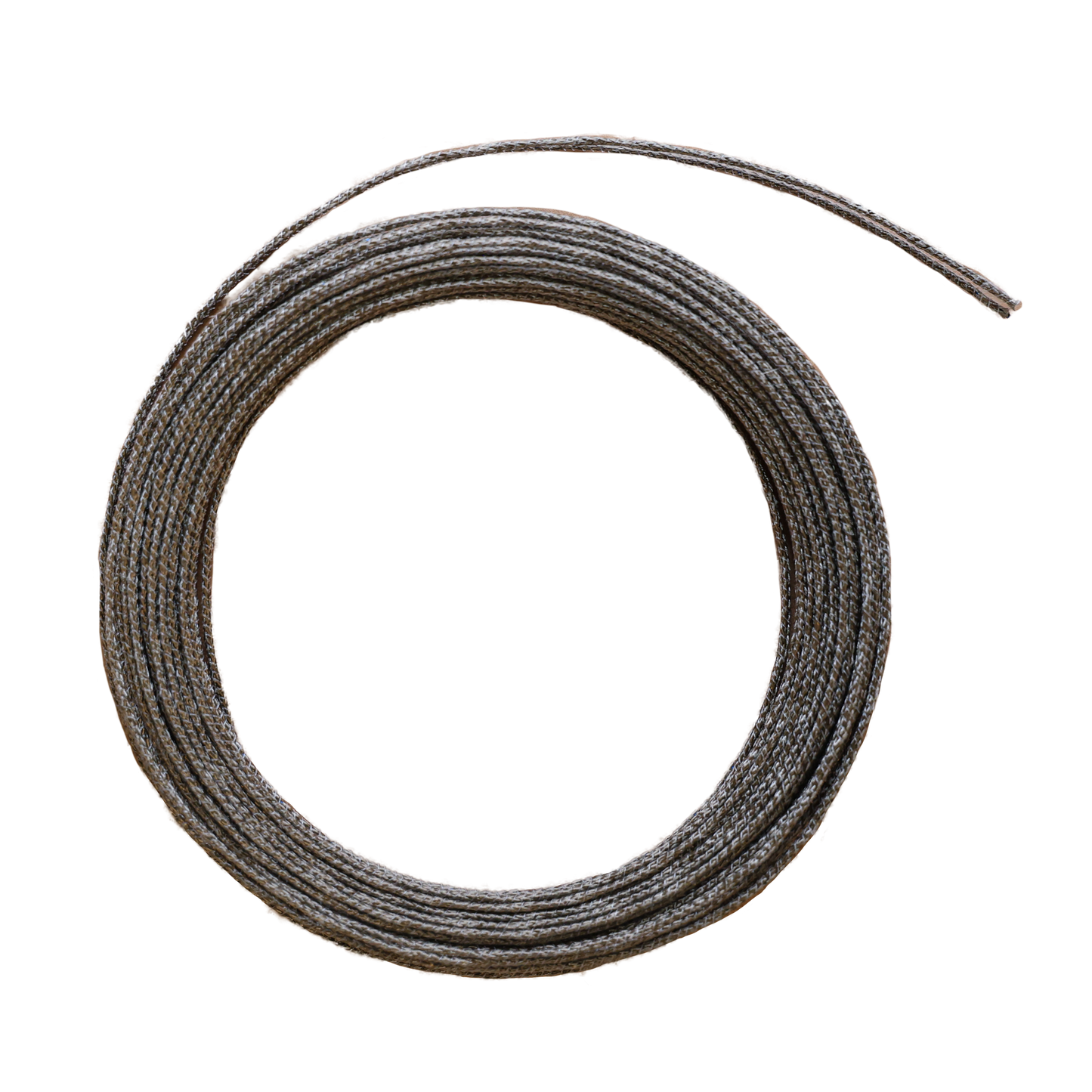

Tatsuta | Leak Point Sensor | AD-BFL (5-meter)
Tatsuta | Leak Point Sensor | AD-BFL (5-meter)
SKU:
This flame-retardant, location-detection dedicated AD-BFL flat sensor complies with flame-retardant standard NFPA262 (formerly UL910) and has excellent chemical resistance.
Regular price
$180.00 USD
Regular price
Sale price
$180.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Details
Features
- Electrode Inner Layer: Electrode 1: Basalt braided on the stranded wires of (1) and (2)(1) Conductive ETFE-coated (black), on tin-plated soft copper wire, 0.33mm²(2) Insulated ETFE-coated wire (yellow), on tin-plated soft copper wire, dia. 0.51mm
- Electrode Inner Layer: Electrode 2: Basalt braided on the stranded wires of (3) and (4)(3) Conductive ETFE-coated (black), on resistance wire, dia. 0.40mm(4) Insulated FEP-coated wire (blue), on tin-plated soft copper wire, 0.5mm²
- Outer Layer: ETFE monofilament
- Outer dia. Approx. 6.5mm x 2.2mm
- Detection Sensitivity: Leak length: 100ml maximum
Specifications
- W6.5mm, H2.2mm, BK0.33mmsq, B0.5mmsq, BK dia 0.4mm solid wire
- 100m/spool maximum
