Tatsuta

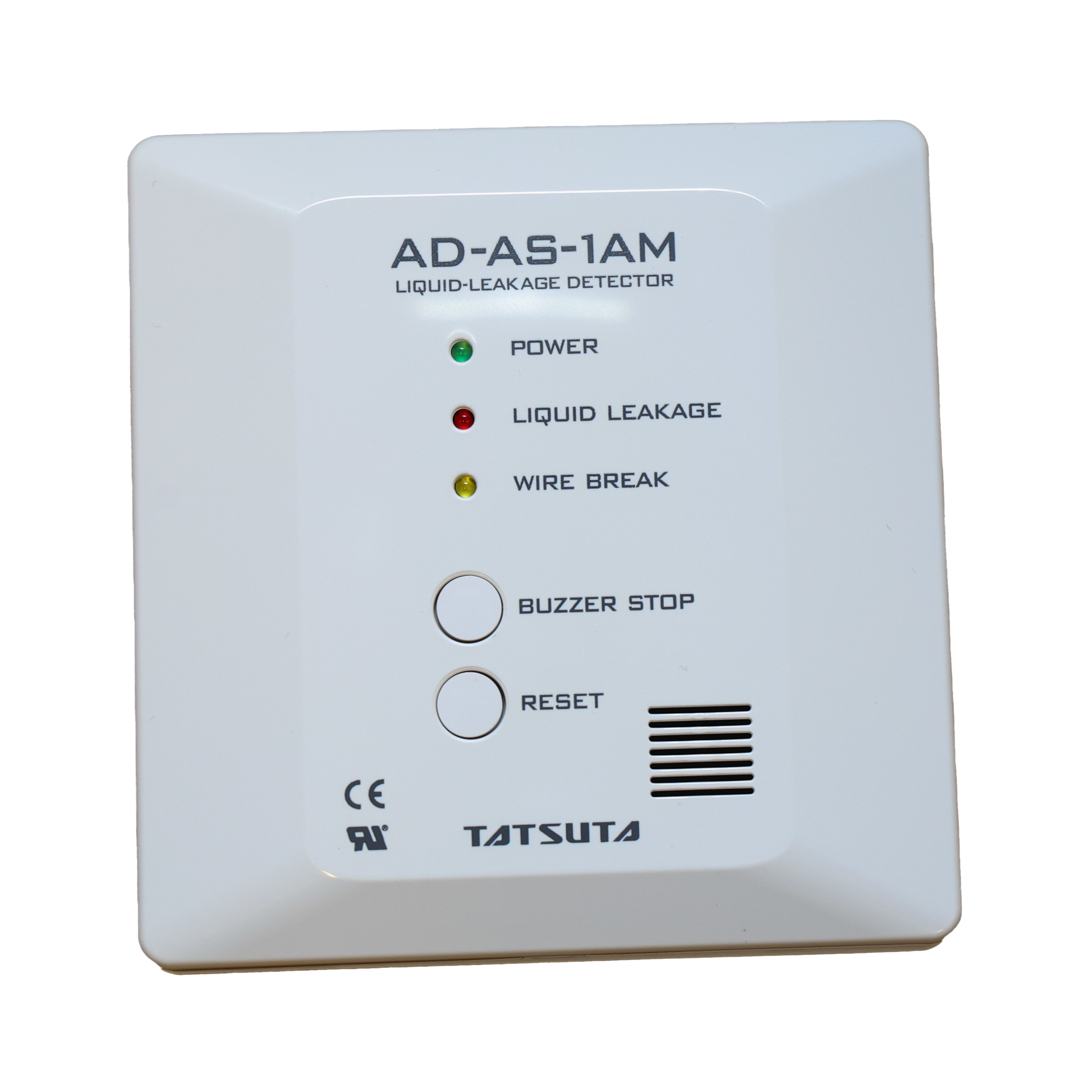

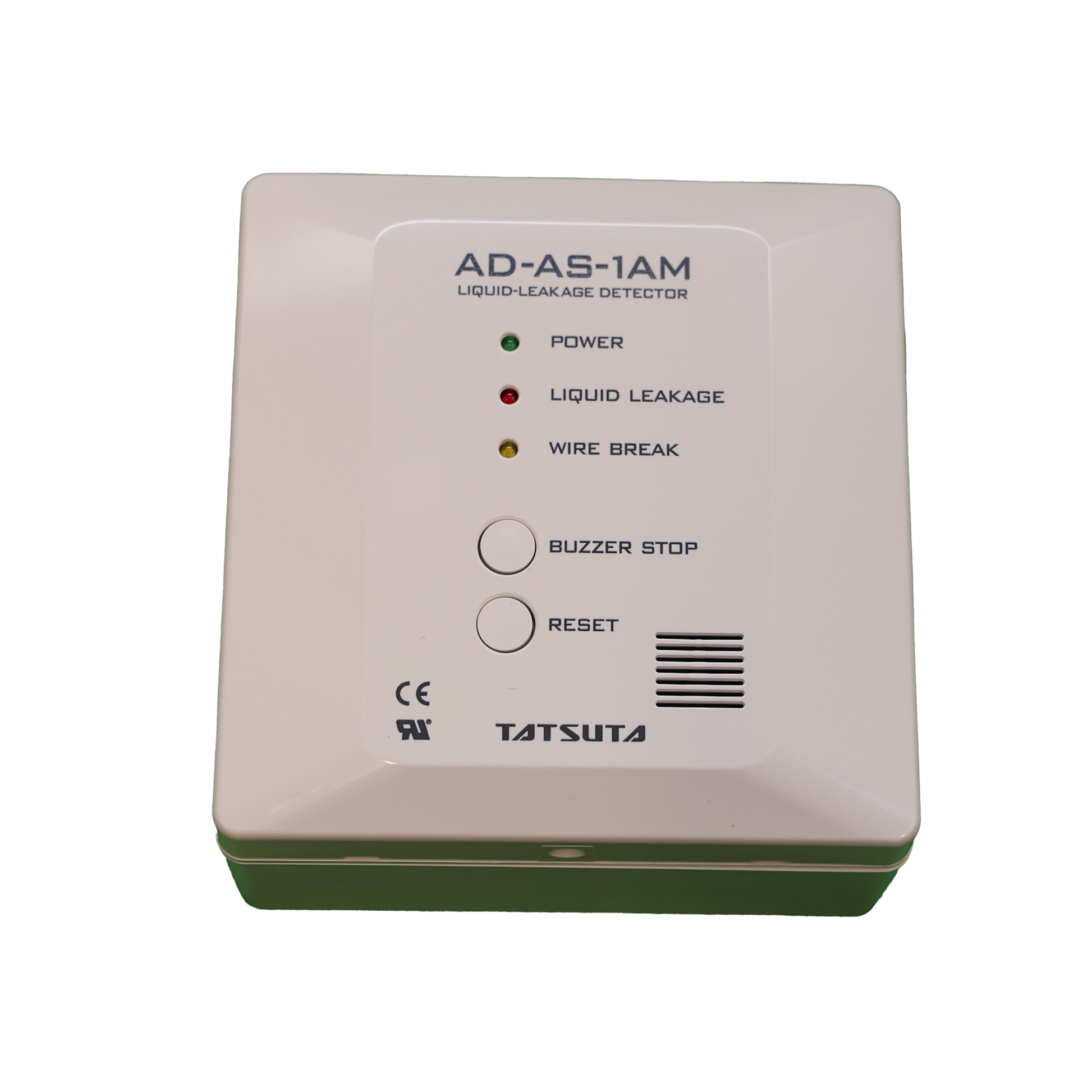

Tatsuta | Liquid-Leakage Detector | AD-AS-1AM(UL)

Tatsuta | Liquid-Leakage Detector | AD-AS-1AM(UL)

This AD-AS-1AM detector for single detection circuit systems issues an alert with a lamp (LED) and a buzzer when leakage or wire break is detected. Control output contact is also available.

$324.00 USD
$324.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

Features

  • Number of sensor circuits: 1
  • Power Supply Voltage: AC100V~240V
  • Frequency: 50/60Hz
  • Sensor-applied voltage: 2.8VAC maximum
  • Leakage warning: Blinking Red LED Lamp/Buzzer
  • Wire Break Warning: Blinking red LED Lamp/Buzzer
  • Control output contact rated load (resistance load): AC250V 6.0A、DC24V 6.0A
  • Current Consumption: 4.5VA maximum
  • Sensitivity Adjustment: Yes
  • Check Function: Yes
  • Outer Dimensions (mm): W120×H124×D55
  • Weight (kg): Approx. 0.3
  • Box Color: Ivory White

Specifications

100-240VAC, wall mount max sensor length is 100m
