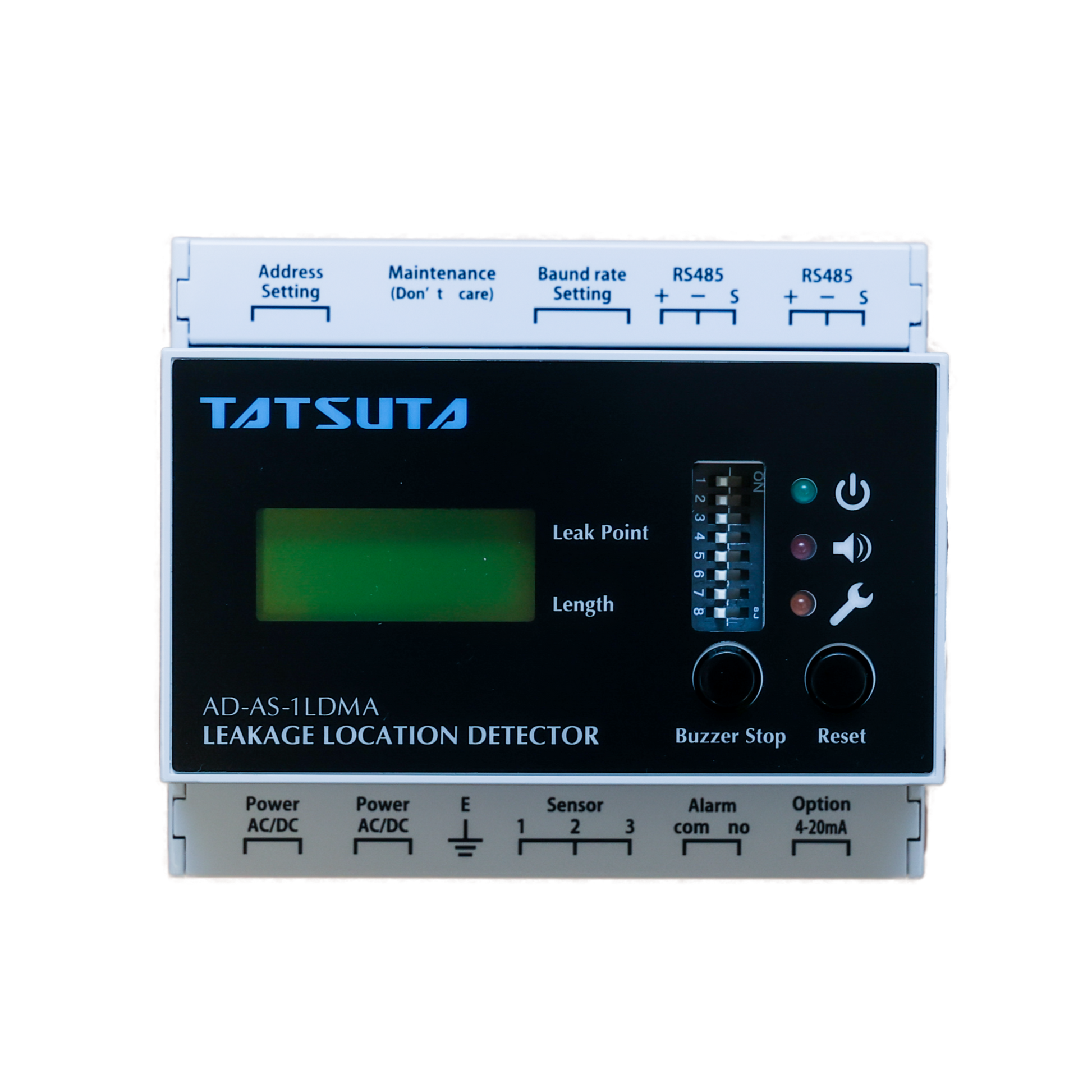

Tatsuta | Zone Detector | AD-AS-1LDM-A

Tatsuta | Zone Detector | AD-AS-1LDM-A

Leak-location detection, AD-AS-1LDM-A (AC/DC power supply), for single-circuit systems. Combined with its dedicated sensor, the detector digitally displays the leak locations.

$1,020.00 USD
$1,020.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

Features

  • Number of sensor circuits: 1
  • Power Supply Voltage: AC100V～240V
  • Frequency: 50/60Hz
  • Sensor-applied voltage: 5.3VAC maximum
  • Leakage warning: Blinking orange LED lamp
  • Wire Break Warning: Blinking orange LED lamp
  • Control output contact rated load (resistance load): AC125V 0.4A、DC30V 2.0A
  • Current Consumption: 2VA maximum
  • Sensitivity Adjustment: Yes
  • Check Function: -
  • Outer Dimensions (mm): W45×H72×D75
  • Weight (kg): Approx. 0.12
  • Box Color: Gray

Specifications

24VDC or 24VAC, Din-rail mount
Max sensor length 450m
Detection accuracy ±1m or ±1% of the length connected
