Tatsuta | Zone Detector | AD-AS-1WM(UL)
Tatsuta | Zone Detector | AD-AS-1WM(UL)
SKU:

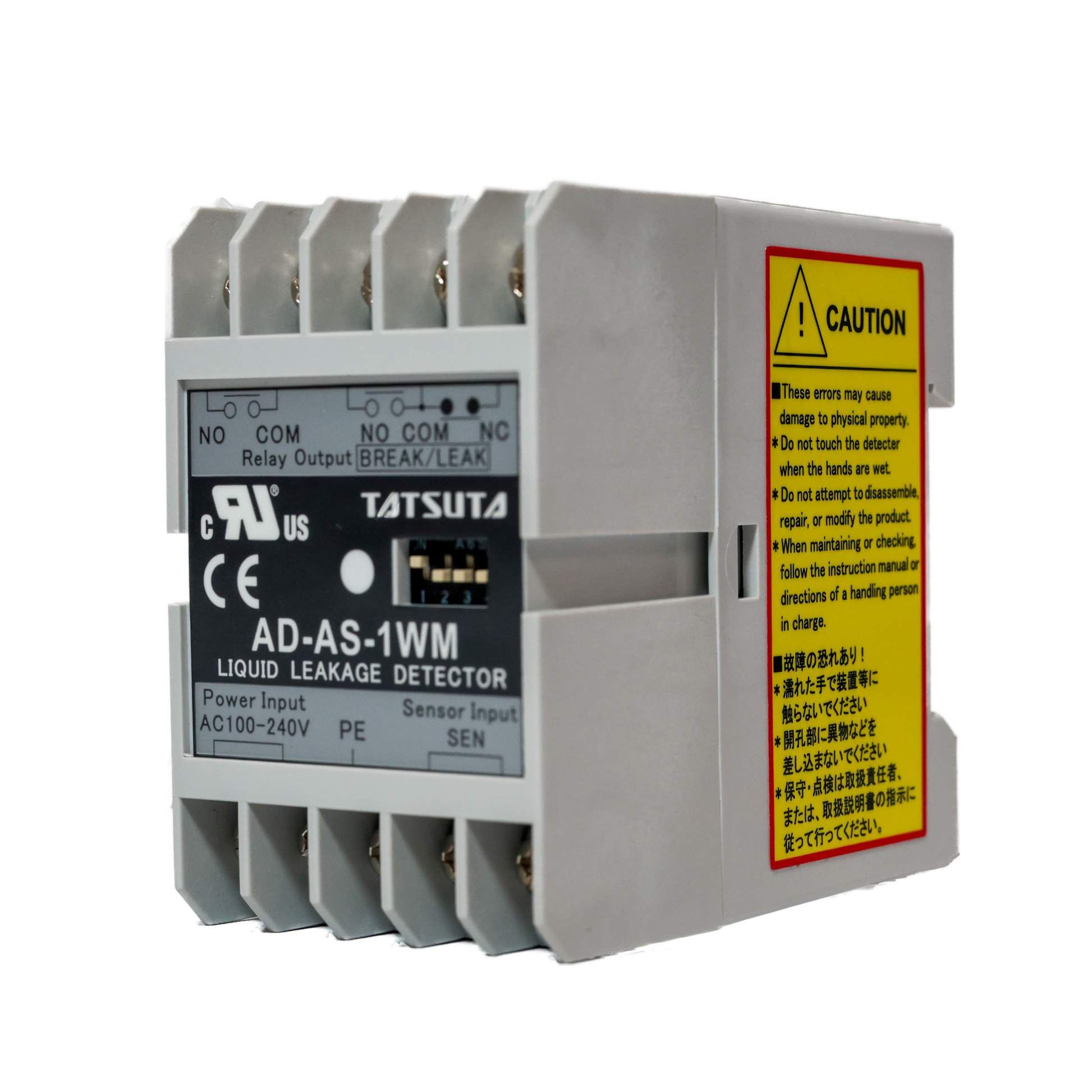

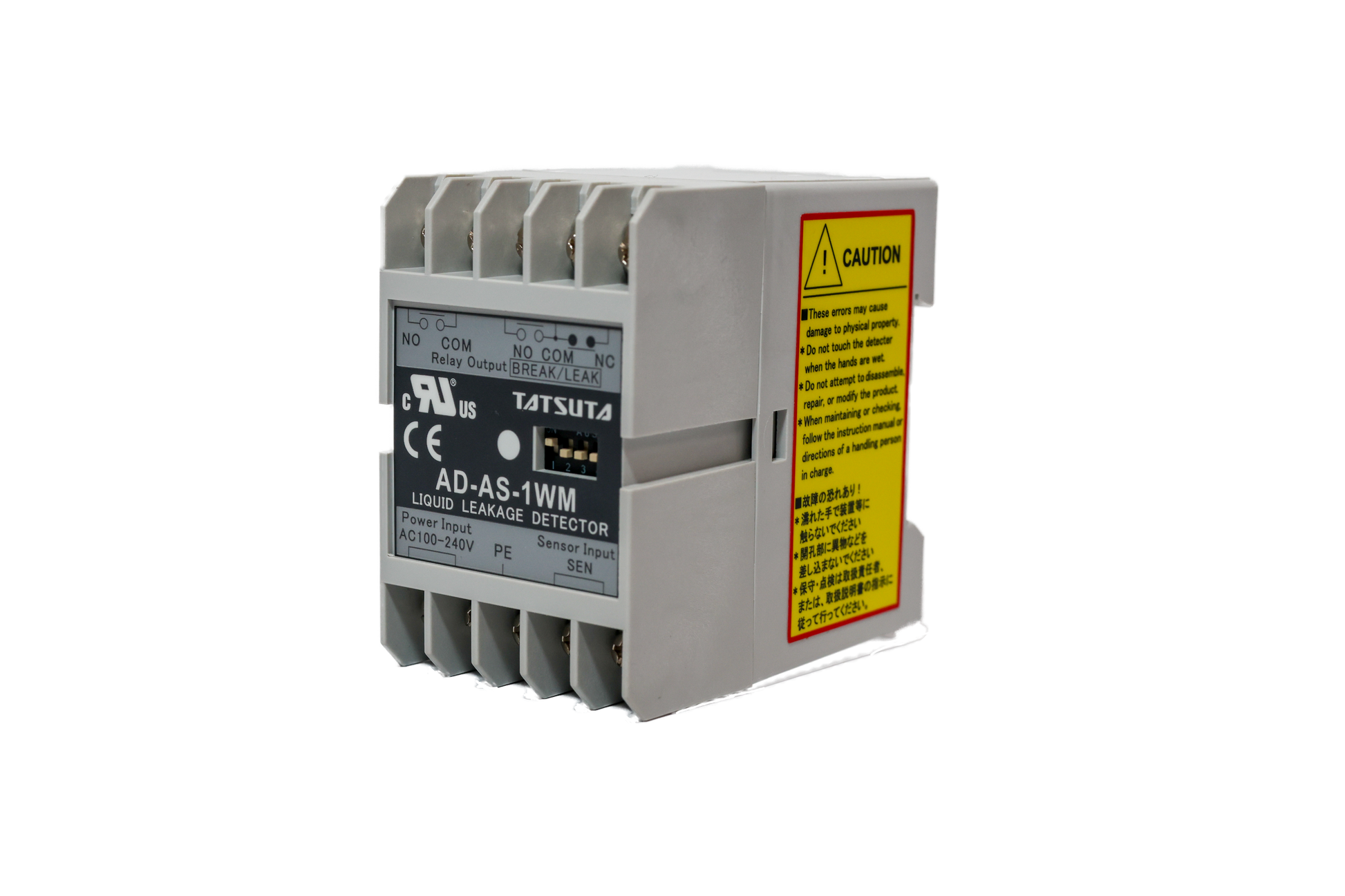

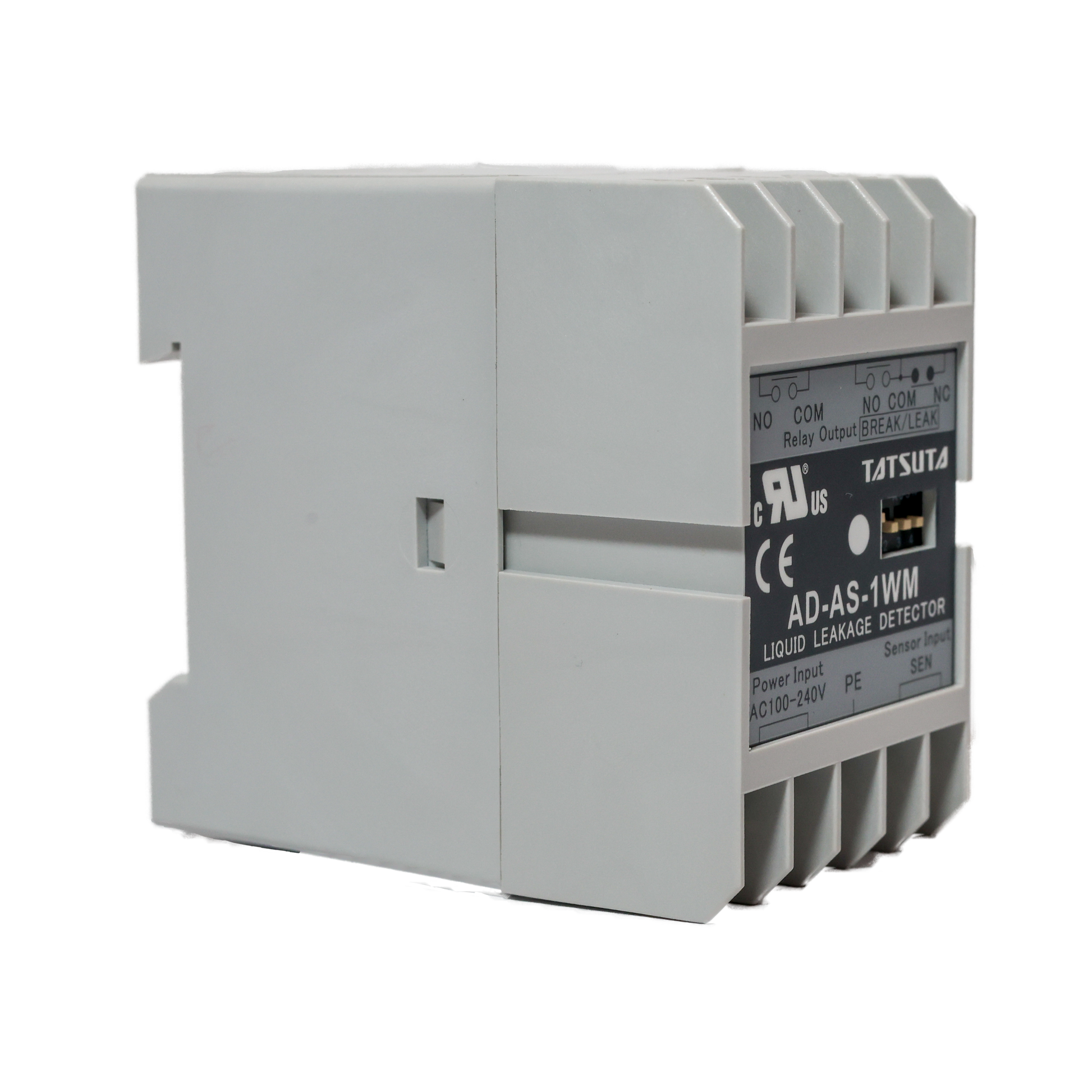

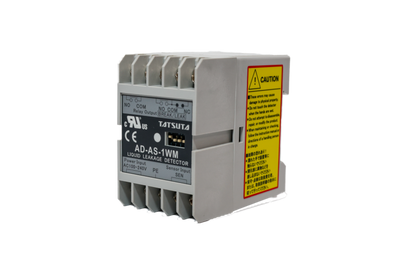

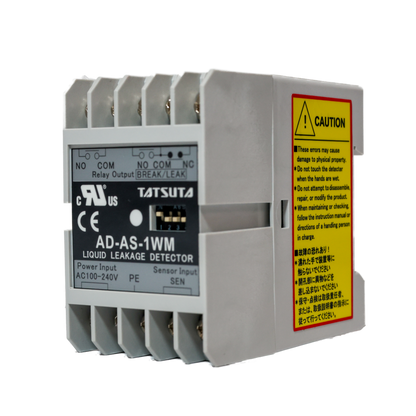

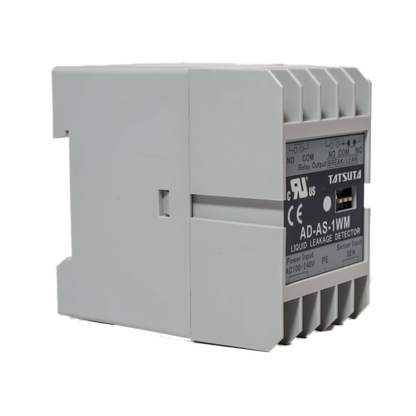

This AD-AS-1WM detector for single-circuit systems with a wire break detection function is attached to the DIN rail inside the panel.
Regular price
$216.00 USD
Regular price
Sale price
$216.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Details
Features
- Number of sensor circuits: 1
- Power Supply Voltage: AC100V～240V
- Frequency: 50/60Hz
- Sensor-applied voltage: 5.3VAC maximum
- Leakage warning: Blinking orange LED lamp
- Wire Break Warning: Blinking orange LED lamp
- Control output contact rated load (resistance load): AC125V 0.4A、DC30V 2.0A
- Current Consumption: 2VA maximum
- Sensitivity Adjustment: Yes
- Check Function: -
- Outer Dimensions (mm): W45×H72×D75
- Weight (kg): Approx. 0.12
- Box Color: Gray
Specifications
100-240VAC, din-rail mount
Max sensor length is 100m
