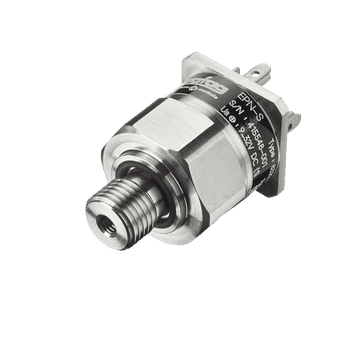

Trafag | Electronic Pressure Switch | EPN-S 8320

Trafag | Electronic Pressure Switch | EPN-S 8320

The Electronic Pressure Switch EPN-S is based on the well-proven EPN transmitter family. It stands for reliable accuracy over a wide temperature range and excellent long-term stability even in harshest environments in the shipbuilding and railway industry. The switchpoint is factory set or can be programmed on site using Trafag’s Sensor Communicator SC.

View full details

Product Details

Features

  • Rugged design for harsh environments
  • Wide temperature range
  • Excellent long-term stability
  • Very compact design

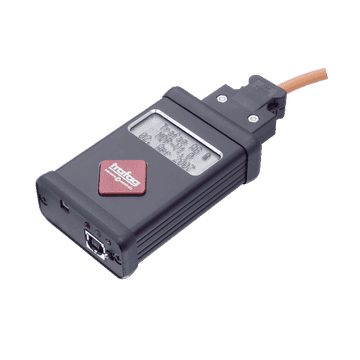

  • Switchpoint factory set or programmable on site with Trafag Sensor Communicator SC

Specifications

Technical Data

Product code: 8320

Name: EPN-S

Designation: Electronic Pressure Switch

Product category: Electronic pressure switches

Measuring range: 0 ... 2.5 to 0 ... 600 bar 0 ... 30 to 0 ... 7500 psi

Measuring principle: Thin-film-on-steel

Approval / conformity: DNV-GL, RMRS EN 50155 (Railways) EN 45545-2 (Fire protection, railways)

Accuracy @ 25°C typ.: ± 0.5 % FS typ. (Switchpoint)

Output signal: Switching output: 1 PNP

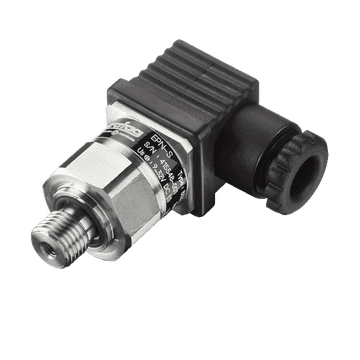

Electrical connections: EN175301-803-A (DIN43650-A); Cable

Pressure connections: G1/4" m (Seal); 1/4"NPT m; G1/2" m, DIN3852-A; M14x1.5 m, DIN3852-A; 1/2"NPT m

Media temperature: –40°C ... +125°C

Ambient temperature: Standard: -25°C ... +85°C Option accessory 67: -40°C ... +125°C

Measuring range:

≤ 100 bar
≤ 600 bar
< 1500 psi
< 7500 psi
