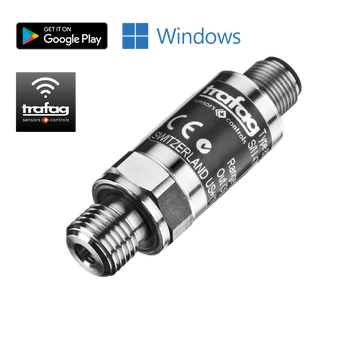

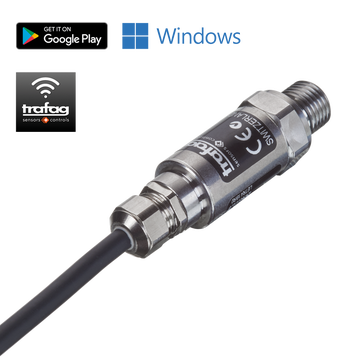

Trafag | Marine Pressure Transmitter | NAE 8256

Trafag | Marine Pressure Transmitter | NAE 8256

The engine and shipbuilding pressure transmitter NAE 8256 features the extremely robust and stable thin-film-on-steel sensor element. The NAE 8256 is the smallest pressure transmitter of its kind with ship approvals. The wide temperature range from -40°C up to +125°C and triple overpressure safety makes it the first choice in rough environments such as marine applications.

View full details

Product Details

Features

  • Measuring accuracy 0.3%
  • Completely welded steel sensor system without additional seals
  • High resistance to over pressure
  • Excellent long-term stability
  • Optional: Switching output 1 or 2 PNP

Specifications

Technical Data

Product code: 8256

Name: NAE

Designation: Marine Pressure Transmitter

Product category: Pressure transmitters

Measuring range: 0 ... 6 to 0 ... 700 bar 0 ... 100 to 0 ... 10000 psi

Measuring principle: Thin-film-on-steel

Approval / conformity: DNV EU RO Mutual Recognition Type Approval Certificate

Accuracy @ 25°C typ.: 0.3 %: ± 0.3 % FS typ.

Output signal: 4 ... 20 mA, Switching output: 1 or 2 PNP

Electrical connections: M12x1; Cable IP67/IP68

Pressure connections: G1/4" m; G1/4" m (Manometer EN 837); G1/8" a, DIN3852-E; 1/4"NPT m; M10x1 m

Media temperature: –40°C ... +125°C

Ambient temperature: –40°C ... +125°C (cable Radox Tenuis 88: -40°C ... +100°C)

Measuring range:

≤ 100 bar
< 1500 psi
Relative pressure
