Trafag | Electronic Pressure Switch | NAT 8252

Trafag | Electronic Pressure Switch | NAT 8252

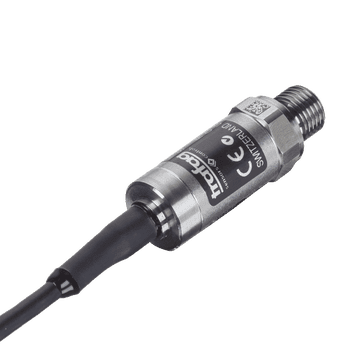

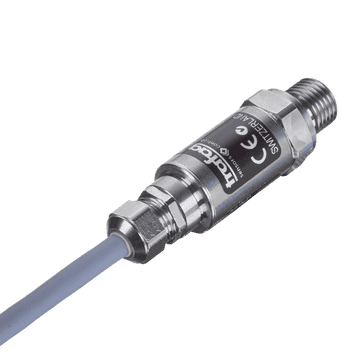

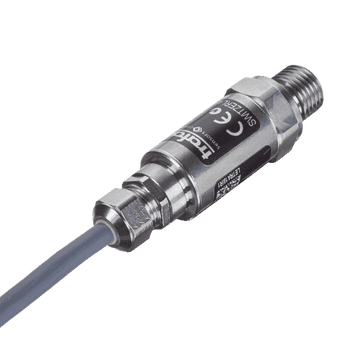

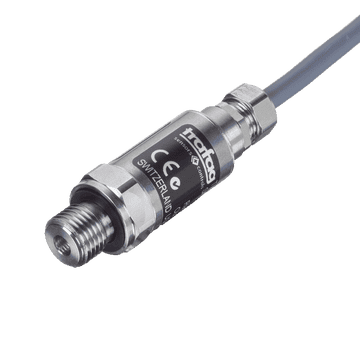

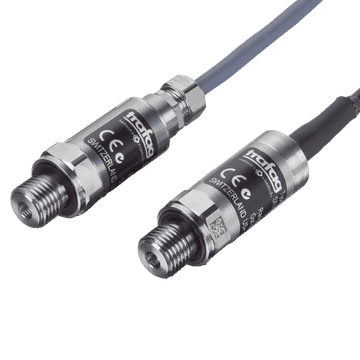

The industrial pressure switch NAT 8252 is available with 1 or 2 switching outputs and features an exceptionally long-term stable thin-film-on-steel sensor cell with triple (optionally 5-fold) overpressure safety. The robust design and the wide temperature range from -40°C to +125°C qualify the NAT 8252 as the ideal solution for a wide range of demanding pressure switch applications.

View full details

Product Details

Features

  • 1 or 2 PNP

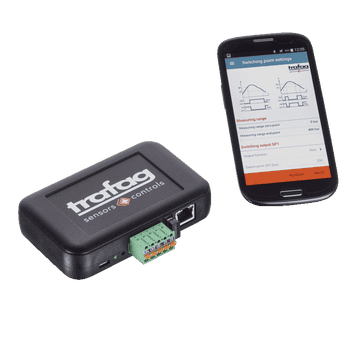

  • Parametrisation via smartphone App (Android)
  • Switching current up to 400 mA
  • Excellent long-term stability
  • Optional: 5-fold overpressure resistance

Specifications

Technical Data

Product code: 8252

Name: NAT

Designation: Electronic Pressure Switch

Product category: Electronic pressure switches

Measuring range: 0 ... 2.5 to 0 ... 600 bar 0 ... 30 to 0 ... 7500 psi

Measuring principle: Thin-film-on-steel

Accuracy at 25°C typ.: ± 0.5 % FS typ.

Output signal: Switching output 1 or 2 PNP

Electrical connections: M12x1; Cable IP67 (IP68)

Pressure connections: G1/4" m; G1/4" m (Manometer); G1/4" m with integrated damping; G1/8" m, DIN3852-E; 1/4"NPT m; 1/4"NPT f; 1/8"NPT m; 7/16"-20UNF f, SAE J512; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF m, DIN3866; 9/16"-18UNF m, SAE6 (J1926); R1/4" m, DIN3858; R1/4" m, DIN29

Media temperature: –40°C ... +125°C

Ambient temperature: –40°C ... +125°C (Cable PVC 22: -5°C ... +60°C) (Cable PUR 24: -40°C ... +70°C) (Cable Radox Tenuis 88: -40°C ... +100°C)

Measuring range:

≤ 100 bar
≤ 600 bar
< 1500 psi
< 7500 psi
