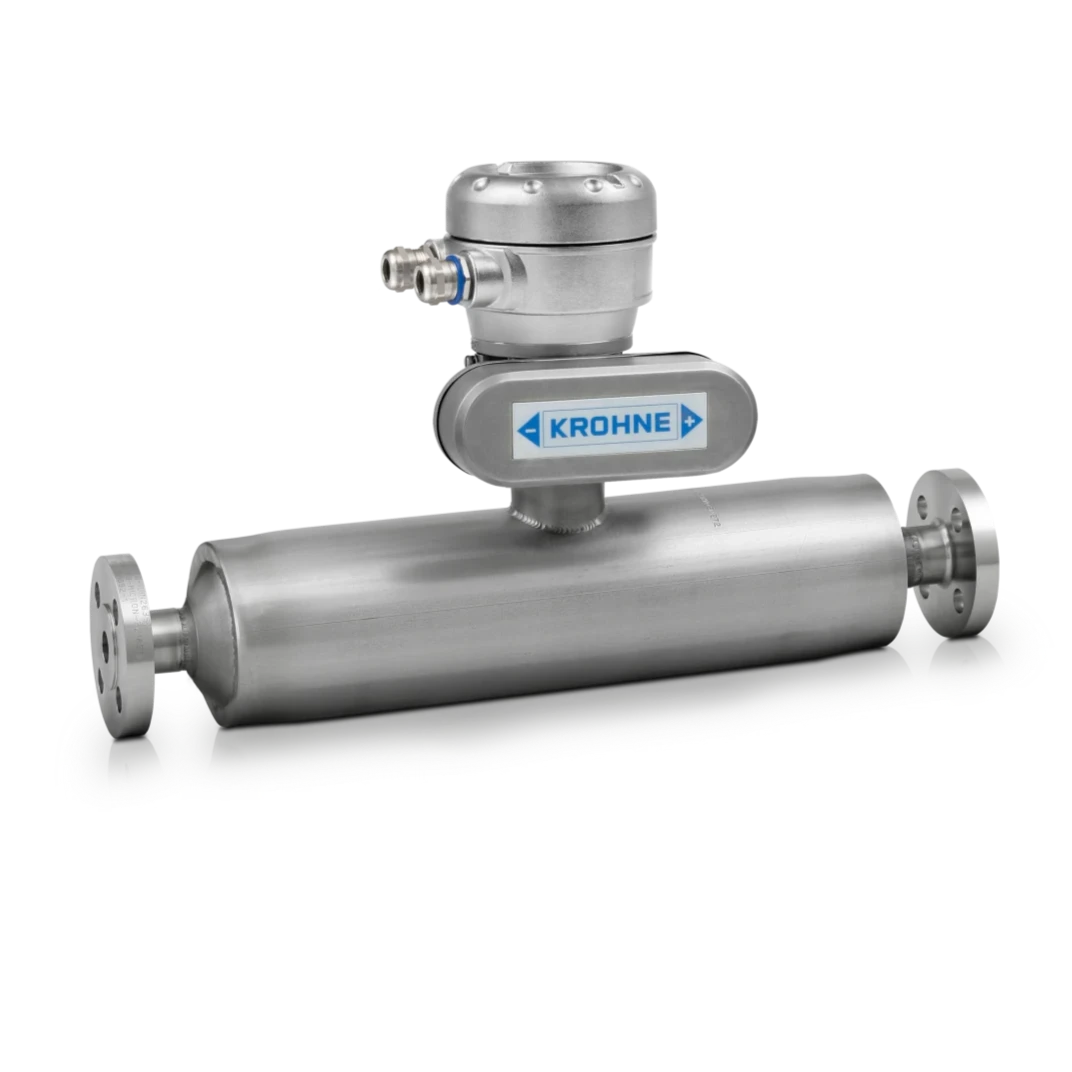

Krohne Optimass 1010 Twin Straight Tube Marine Coriolis Mass Flow Meter

***Features depend on selected device configuration

• Coriolis mass flow meter for ship fuels in the marine industry
• Measurement of mass and volume flow, density and temperature for fuel consumption monitoring of MGO, MDO and other liquids
• Twin straight tube design
• No separate converter needed: Communication direct from meter
• Optimized flow splitter for low pressure loss
• Integrated temperature measurement
• Optional PED approved secondary pressure containment up to 100 barg / 1450 psig
• Best-in-class price/performance ratio
• Optional heating jacket or purge ports
• Immunity to crosstalk: resistant to installation and process effects
• Optional EtherNet/IPTM web-interface for configuration, maintenance and diagnostics

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

• Operating Conditions: Process Pressure: max. 100 barg/1450 psig, Process Temperature: -40 to +130°C/--40 to+266°F
• Process Connections: Multiple
• Multiple Approvals/Standards
• Communications: Modbus RTU, EtherNet/IP™ digital outputs
