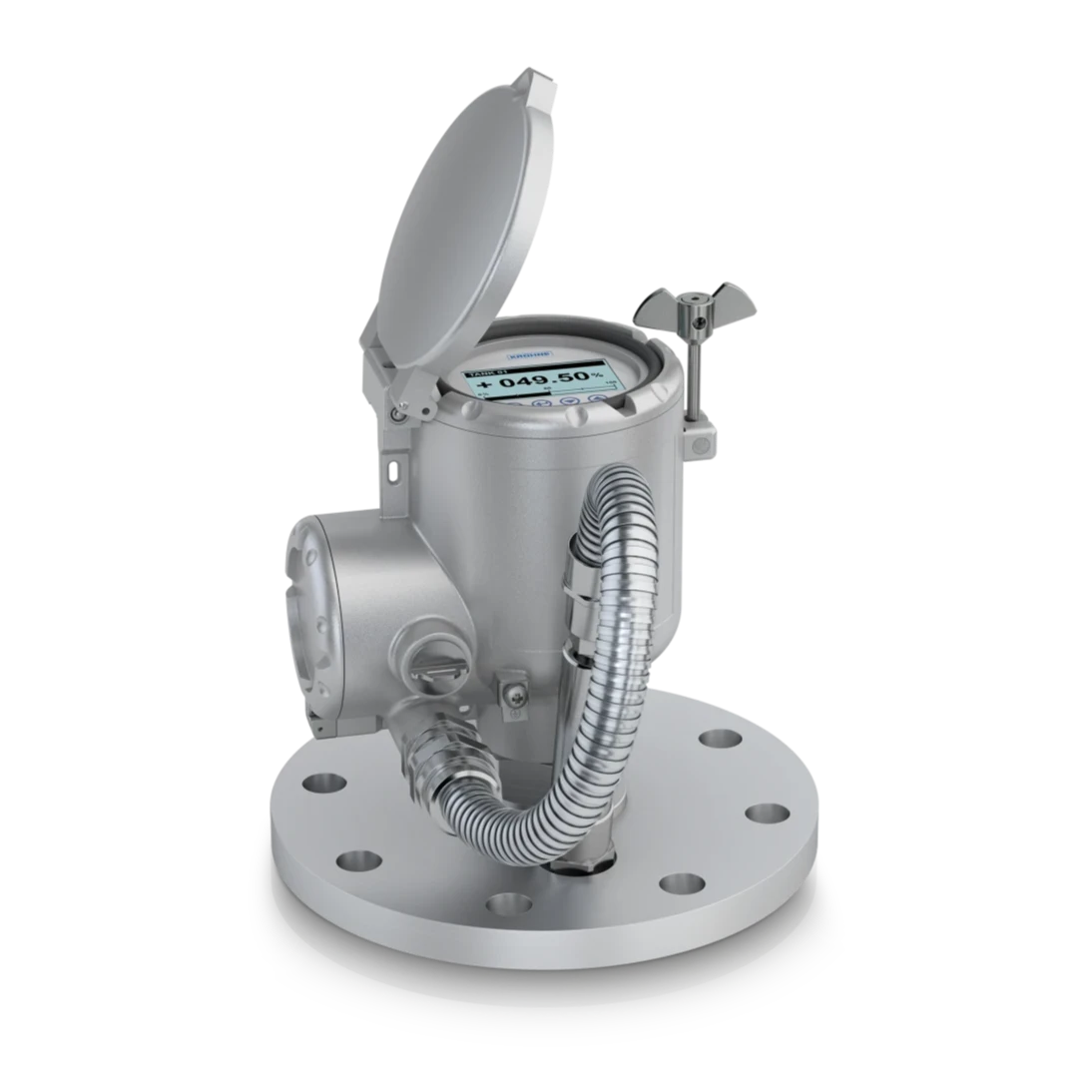

Ullage Krohne Optiwave-M 7500 Marine Radar Level Transmitter

***Features depend on selected device configuration

• Radar (FMCW) level transmitter for liquids and solids in the marine industry
• Cargo radar level gauge designed to operate in the roughest marine conditions
• With rugged stainless steel (1.4404 / 316L) housing and display protection
• Redundant display: ullage/level will always be shown locally
• Inert gas pressure sensor (IGP) integral part of radar flange
• Flush-mounted PEEK Lens antenna (no tank intrusion): DN70 / 2¾″ with extremely focussed beam angle of only 4° for use in narrow tanks, DN40 / 1½″ with narrow beam angle of 8° for small to large tanks
• Optimised for use with the CARGOMASTER® solution for liquid cargo monitoring and alarm

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

• Operating Conditions: Process Temperature: -40 to+150°C/-58 to+302°F, Optional: -60 to +250°C/-75 to +480°F Measuring Range (liquids): 0 to 40 m/0 to 132 ft, Measuring Range (Solids): 0…40 m/0 to 132 ft
• Process Connections: EN (1092-1): DN125 Flange
• Multiple Approvals/Standards
• Communication: 4-20 mA Analog output, HART® Digital Output
• Accuracy (liquids): ±2 mm/±0.08 in, Accuracy (solids): ±0.08 in/±0.08 in
