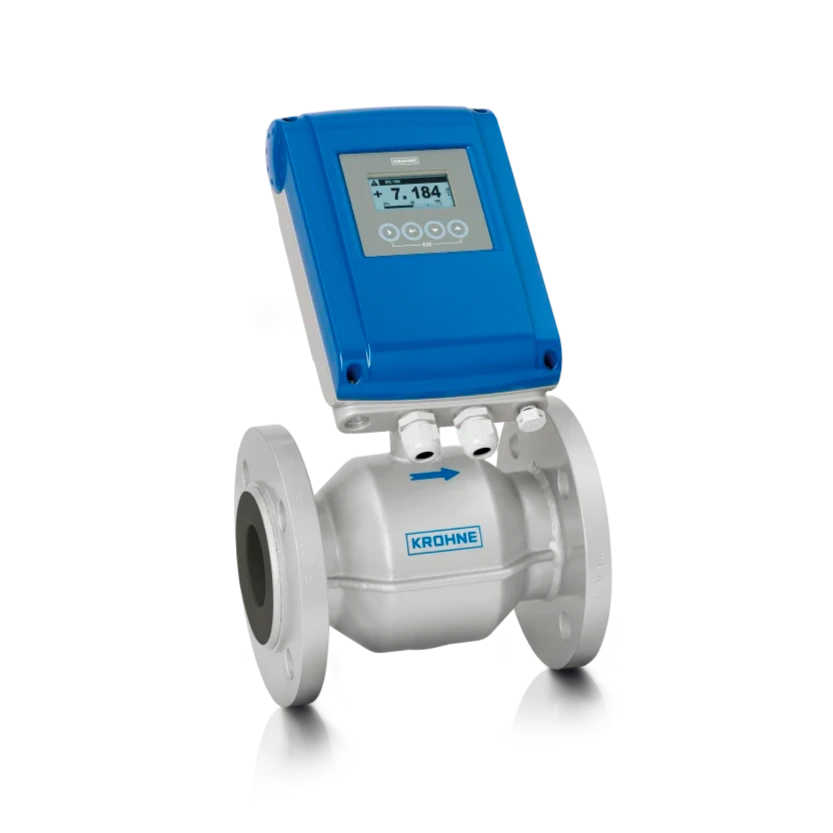

Krohne Optiflux 2100 Wastewater Electromagnetic Flow Meter

***Features depend on selected device configuration

• Electromagnetic flow meter for all standard water and wastewater applications
• Bi-directional flow measurement over a wide dynamic range
• Optional for subsoil installation and constant flooding
• Proven and unsurpassed life time, huge installed base
• Standard wet calibration
• PP or hard rubber liner: suitable for low concentrated chemicals
• Tamper proof
• Diagnostics incl. conductivity, electrode error, ambient and process temperature etc.
• Full bore design: No moving parts, no wear, no pressure loss
• Meets potable water standards: ACS, DVGW, NSF, TZW, WRAS etc.
• For hazardous areas: ATEX, IECEx, FM, CSA
• On-site verification of flow meter with OPTICHECK service tool

***Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

• Operating Conditions: Process Pressure: max. 40 barg/580 psig, Process Temperature: -5 to +90°C/+23 to +194°F
• Process Connections: Multiple
• Multiple Approvals/Standards
• Communication: 4-20 mA Analog output, Pulse Frequency Status discrete outputs, HART® digital outputs
